    The Super Luminescent Diode (SLD) chip high power series is a high performance, low polarization, wide spectrum SLD module. It complies with GR-468-CORE standard and is ROHS certified.

    产品特点Use high output power chip、 8-inch BTF set、 3dB bandwidth＞40nm、 Operating temperature -45～+70℃、 SM fiber or PM fiber pigtail

    产品货号A80050203

    应用领域Broadband light sources、 Sensing and testing

    产品单价联系客服询价

    到货日期请咨询客服获得货期

    产品库存请咨询客服

    Daisy

    电话：18602170419

    邮箱：moli@microphotons.com

    加入询价单 在线咨询

    收藏

    相关产品

    主要参数
  • 核心参数

  • Center wavelength Output power

  • 尺寸图

    • Main Parameters:

    Unless otherwise stated, all measurements were performed at a chip temperature of 25°C.

    Absolute Max. Ratings

    Parameters

    Symbol

    Min

    Typical

    Max

    Unit

    Notes

    Storage temperature

    TS

    -55



    -

    +85

    ℃


    Operating temperature

    Tc

    -45



    -

    +70

    ℃


    Reverse voltage

    VCC



    -



    -

    2.0

    V


    Forward current

    Ic



    -



    -

    200

    mA


    Thermoelectric cooler voltage





    V





    -





    -





    3.2





    V


    Thermoelectric cooler current





    I





    -





    -





    1.2





    A


    Storage humidity



    -

    5



    -

    85

    %RH


    Lead solder temperature



    -



    -



    -

    260

    ℃


    Lead soldering time



    -



    -



    -

    10

    S


    Pigtail tensile strength



    -

    1



    -



    -

    kgf


    Fiber bending radius



    -

    30



    -



    -



    mm






    Optical and electrical characteristics of the transmitter

    Parameters

    Symbol

    Min

    Typical

    Max

    Units

    Notes

    Operating current

    ITH



    -

    100

    150

    mA

    CW

    Fiber power

    P



    -

    2



    -

    mW

    CW, ITH =100mA

    3dB bandwidth

    Δλ

    40



    -



    -



    nm

    CW

    Center wavelength

    λc

    1530

    1550

    1570



    nm

    CW

    Spectrum modulation



    -



    -

    0.1

    0.2

    dB



    -

    Extinction ratio





    ER





    -





    -





    1





    dB





    CW

    TEC current

    Ic



    -



    -

    1.2

    A

    Tc=-45~ +70℃

    TEC voltage

    Vc



    -



    -

    3

    V

    Tc=-45~ +70℃

    Thermistor





    Rth





    9.5





    10





    10.5





    KΩ





    Tc =25℃

    Thermistor B constant





    B





    -





    3950





    -





    K





    -





    Pigtail parameters

    Parameters

    Symbol

    Fiber length

    1.0±0.05 meters

    Fiber type

    SM fiber

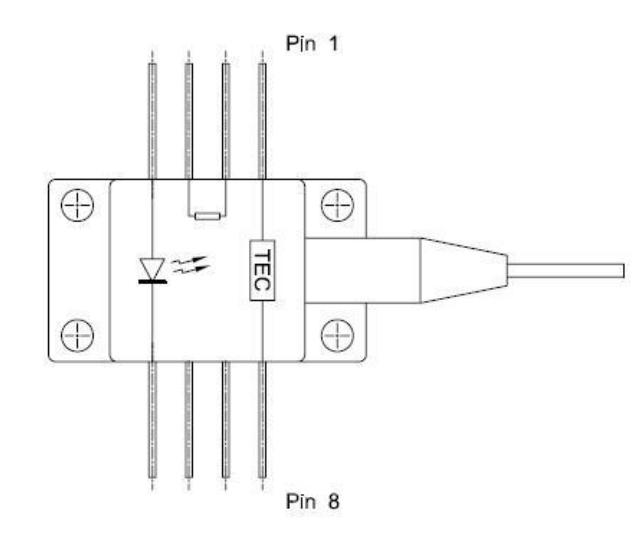

    Pin Definition




    PIN

    Connection

    PIN

    Connection

    1

    TEC Cooler ( +)

    5

    SLD Cathode (-)

    2

    Thermistor1

    6

    NC

    3

    Thermistor1

    7

    NC

    4

    SLD Anode ( +)

    8

    TEC Cooler (-)

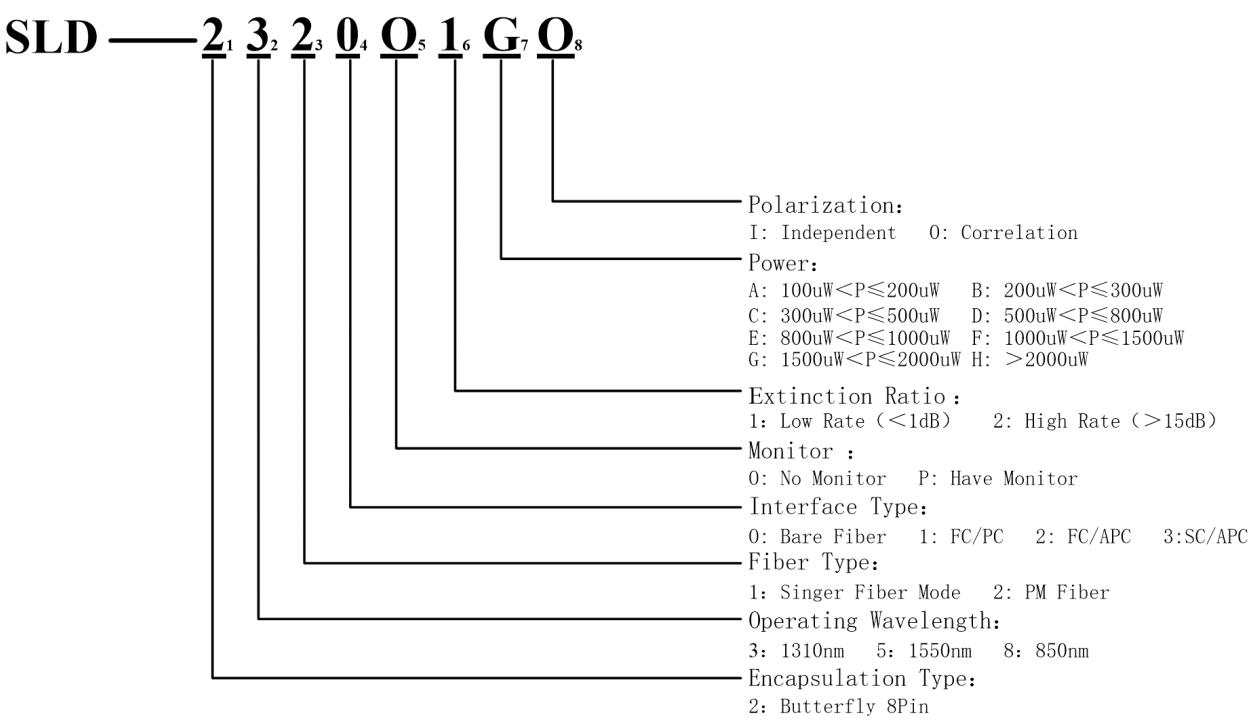

    Part Number Description
