• 1310 nm single mode VCSEL (with TEC)

    The 1310nm Vertical Cavity Surface Emitting Laser (VCSEL) is packaged in a compact coaxial housing with a single mode fiber pigtail. The VCSEL-1310-SM is designed for fiber optic sensing, laser transmitters, and optical communication applications. It requires very low drive current and can be temperature stabilized with a built-in TEC.

    产品特点Low temperature dependence of electrical and optical properties、 Data rates from OC-3 to OC-48、 Low power consumption

    产品货号A80041026

    应用领域Long-distance (>2 km) access network、 Metropolitan area network、 Gigabit Ethernet

    产品单价联系客服询价

    到货日期请咨询客服获得货期

    产品库存请咨询客服

    Daisy

    电话:18602170419

    邮箱:moli@microphotons.com

    相关产品

    主要参数
  • 核心参数
  • 尺寸图
  • Photoelectric parameters:

    Wavelength

    1310nm +/- 10nm

    Wavelength tuning range

    4 nm

    Threshold current

    2 mAtyp.

    Linewidth

    0.1 nm

    Forward voltage

    3V

    Series resistance

    100 Ω typ.

    Output power

    0.5 mW typ.

    SMSR

    35 dB typ.

    Rise and fall time

    100 pstyp.

    Monitor current

    0.1 mAtyp.

    Modulation bandwidth

    3 GHz typ



    Absolute Maximum Parameters:

    Parameters

    Unit

    Min.

    Typ.

    Max.

    Storage temperature

    -40

    25

    125

    Chip temperature

    +10

    25

    40

    Operating current

    mA

    0

    3.0

    5.0

    Forward voltage

    V

    0.8

    3.0

    4.8

    TEC current

    mA

    -150

    -

    +300

    Soldering temperature*

    100

    130

    260

    Power consumption

    mw

    -

    -

    5

    (*TEC temperature must be below 150°C)

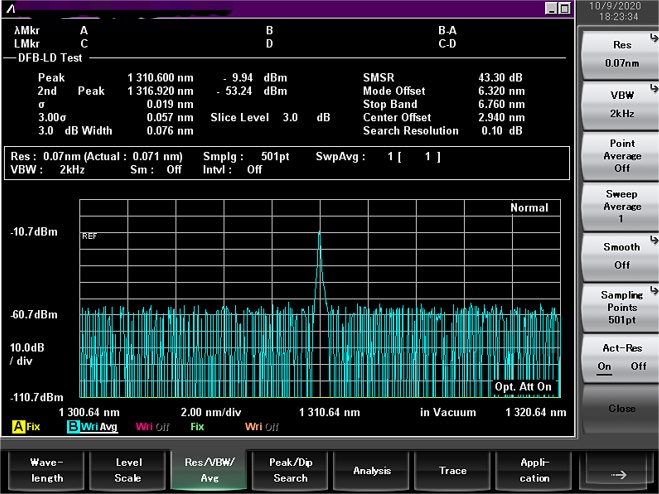

    Spectrum:

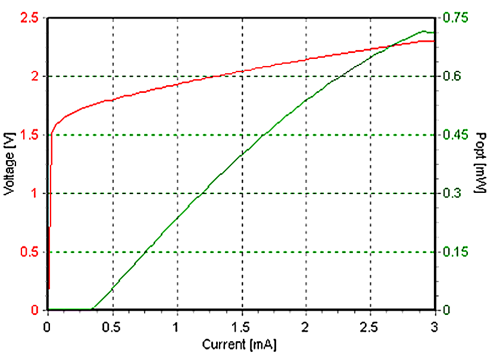

    L-I Curve(T@25°C):

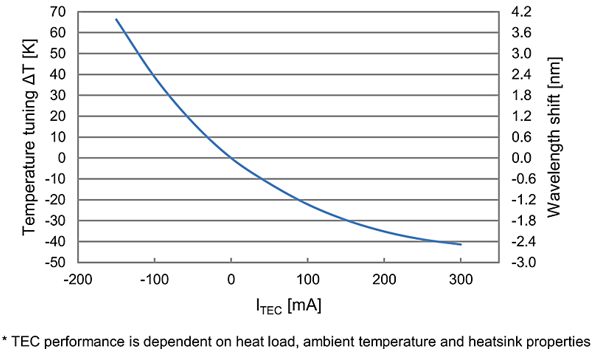

    Temperature/wavelength tuning curve @TEC current:

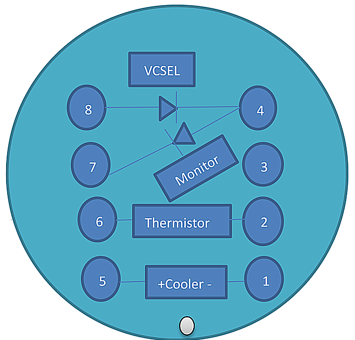

    Pin definition:




    1

    Thermoelectric Cooler (-)

    5

    Thermoelectric Cooler (+)

    2

    Thermistor

    6

    Thermistor

    3

    N/C

    7

    PD Monitor Cathode (+)

    4

    VCSEL Cathode () / PD Monitor Anode (-)

    8

    VCSELAnode (+)





    Order Info:

    PL-VCSEL-W□□□□-☆-A8▽-XXXX

    □□□□:Wavelength

    0760:760nm

    0795:794.7nm

    *****

    1310:1310nm



    ☆ :TEC

    0:Without TEC

    1:With TEC



    ▽:Wavelength Tolerance

    1:±10nm



    XXXX: Package

    CPSA=Coaxial Package with SM1310+ FC/APC

    CPSP=Coaxial Package with SM1310+ FC/PC

    CPPP=Coaxial Package with PM Fiber+FC/PC

    CPPA=Coaxial Package with PM Fiber+FC/APC
