• 2004nm 1m long distance fiber collimator single mode

    Our fiber collimators are pre-aligned and used to collimate the light emitted from FC/APC connector fibers, and have diffraction-limited performance. These fiber collimators have no moving parts and are compact and easy to integrate into existing devices. The currently supported working bands are 532/633/780/850/915/1064/1310/1550nm/1950/2004nm.

    产品特点Long Working Distance、 Each Collimator is Factory Aligned、 Simplifies Fiber Coupled Detection Systems

    产品货号A80150189

    应用领域Fiber amplifiers、 Fiber optic equipment、 WDM & DWDM systems、 Fiber lasers

    产品单价联系客服询价

    到货日期请咨询客服获得货期

    产品库存请咨询客服

    Sherry

    电话:16628709332

    邮箱:moli@microphotons.com

    主要参数
  • 核心参数
  • 尺寸图
  • Technical Parameters:



    Parameters

    Index

    Center wavelength

    2004nm

    Insertion loss (IL)

    ≤2.2dB

    Return loss (RL)

    ≥55dB

    Working distance

    1000mm

    Connector type

    FC/APC

    Fiber type

    SM1950

    Fiber length

    1.0±0.05m

    Maximum optical power (CW)

    300mW

    Buffer type

    0.9mmLoose Tube

    Dimension

    Φ4.0xL20mm





    perimental test:

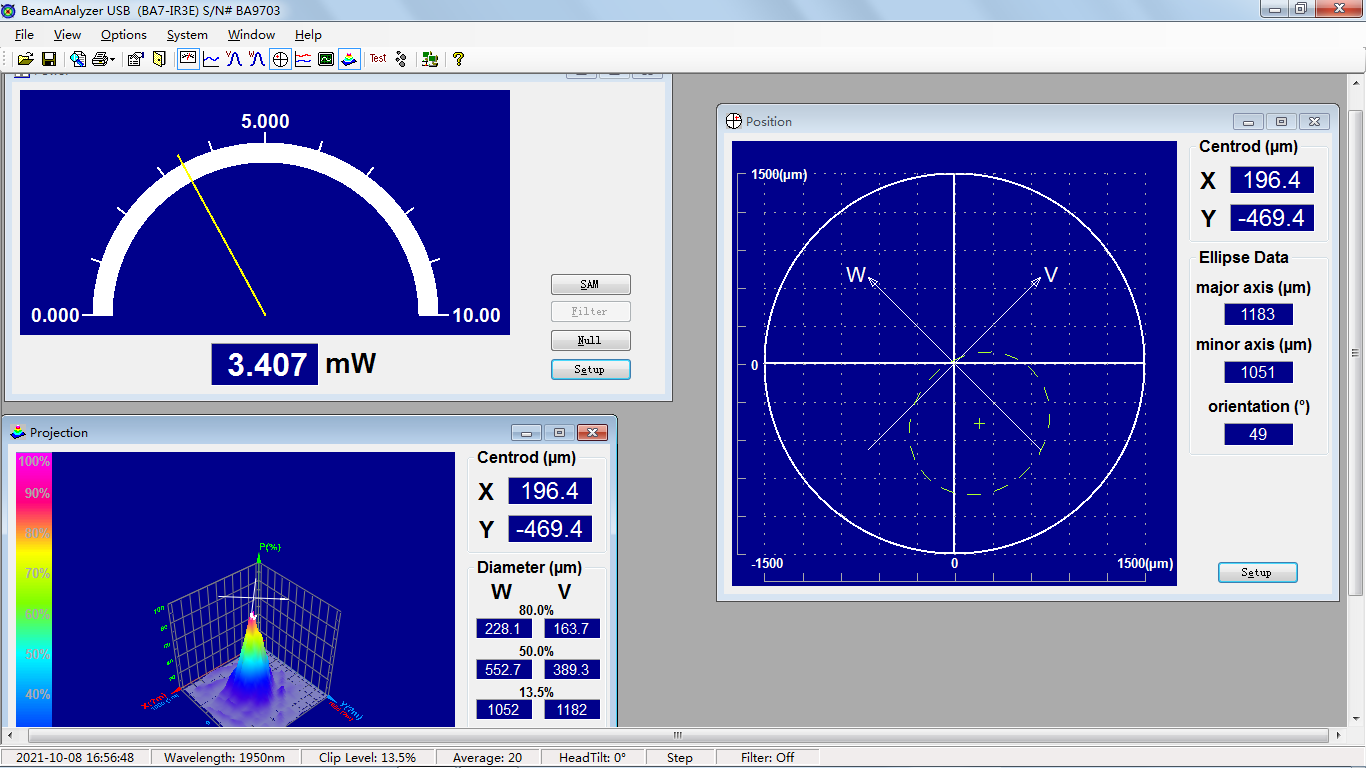

    Pattern of collimated 1950nm laser spot (working distance 1m)
