    With optimized optical characteristics, the 1512nm single-mode DFB laser is an ideal choice for high-demand sensor system applications. The innovative chip design suppresses high-order longitudinal and transverse modes while ensuring linear polarization stability. The laser offers high output power, narrow linewidth, and excellent consistency, making it highly favored by domestic research clients. Currently, we have 1512nm DFB lasers in stock for TDLAS oxygen detection, 795nm VCSELs for Rubidium atomic clock experiments, and 852nm VCSELs for Cesium atomic cooling.

    产品特点Ultra-High Output Power、 Narrow Linewidth、 Internal TEC and Thermistor、 2nm TEC Adjustability

    产品货号A80011114

    应用领域TDLAS Oxygen Analysis and Detection、 Optical Coherence Experiment

    产品单价联系客服询价

    到货日期请咨询客服获得货期

    产品库存请咨询客服

    Daisy

    电话：18602170419

    邮箱：moli@microphotons.com

    加入询价单 在线咨询

    收藏

    相关产品

    主要参数
  • 核心参数

  • 尺寸图

    • Descriptions

    Parameter

    Symbol

    Min

    Typical

    Max

    Unit

    Remarks

    Incident Wavelength

    λR

    1512

    1512.5

    1513

    nm

    T = 20°C, ITEC = 0, POP= 35mw

    Threshold Current

    ITH


    40


    mA

    T = 20°C

    Output Power

    Popt

    10

    20

    30

    mW

    T = 0 … 50°C

    Threshold Voltage

    UTH


    1.80


    V


    Laser Current

    IOP



    130

    mA

    Popt = 35mw

    Laser Voltage

    UOP


    2.0


    V

    Popt = 35mw

    Electro-Optic Conversion Efficiency

    ηWP


    12


    %

    Popt = 20mw

    Slope Efficiency

    ηS


    0.74


    W/A

    T = 20°C

    3dB Modulation Bandwidth

    ν3dB


    3


    MHz

    Popt = 20mW (due to ESD protection diode)

    Relative Intensity Noise

    RIN


    -130

    -120

    dB/Hz

    Popt = 0.3 mW @ 1 GHz

    Wavelength Tuning Current



    0.01


    nm/mA


    Wavelength Tuning Temperature



    0.1


    nm/deg


    Thermal Resistance

    Rthermal

    3


    5

    K/mW


    Side Mode Suppression


    30



    dB


    Beam Divergence

    θ

    10


    25

    °

    Popt = 35mW, Full 1/e² Bandwidth

    Spectral Bandwidth

    Δν


    3


    MHz

    Popt = 35mw

    TEC Current

    ITEC



    1000

    mA

    Requires appropriate heatsink

    NTC Thermistor Resistance


    9.5

    10.0

    10.5

    kΩ

    T= 25°C

    NTC Temperature Dependency


    10/exp[3892 · (1/298K-1/TOP)]

    kΩ






    Absolute Maximum Ratings:

    Storage Temperature

    -40 … 125°C

    Operating Temperature

    -20 … 80°C

    Power Dissipation

    500mW

    Forward Laser Current

    130mA

    Reverse Current

    10mA

    Soldering Temperature

    270°C

    *(The TEC temperature must be below 70°C)

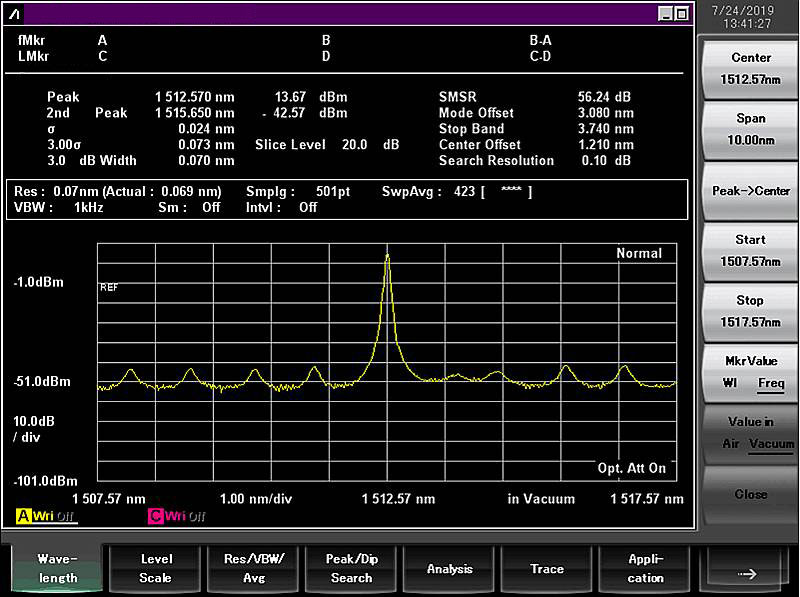

    Spectrum:

    60a4b4a2638b8 (1).jpg

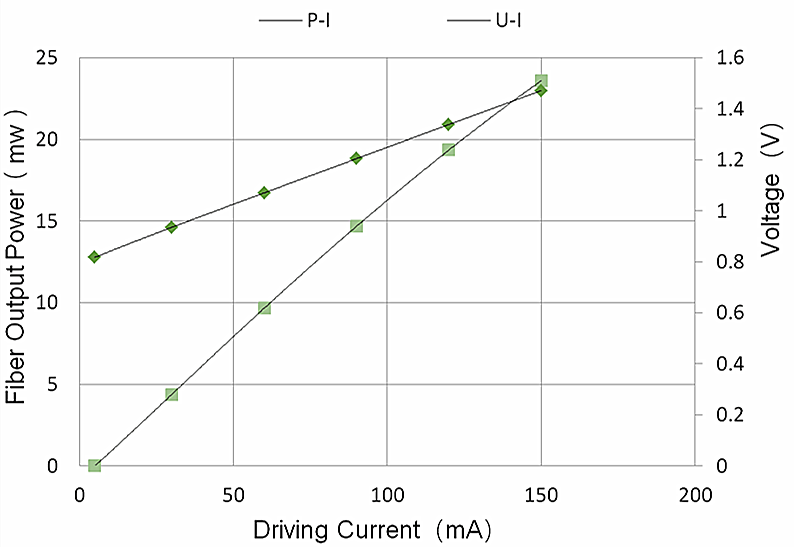

    L-I Curve:

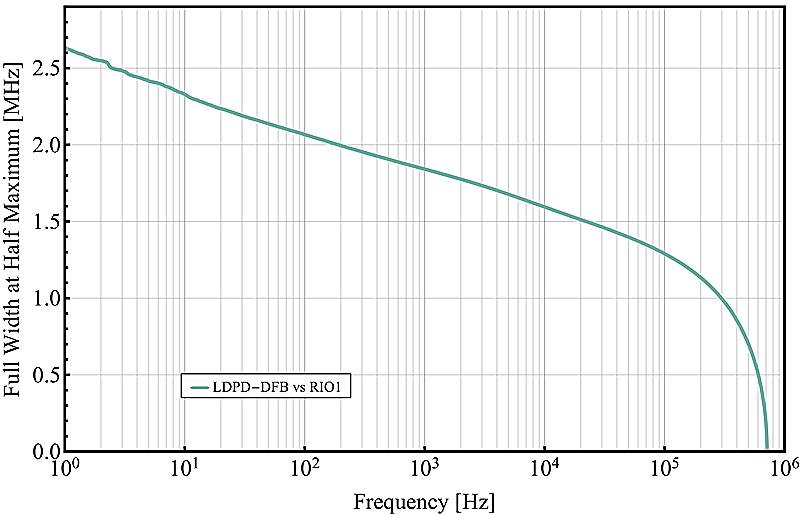

    DFB Linewidth Testing Result:

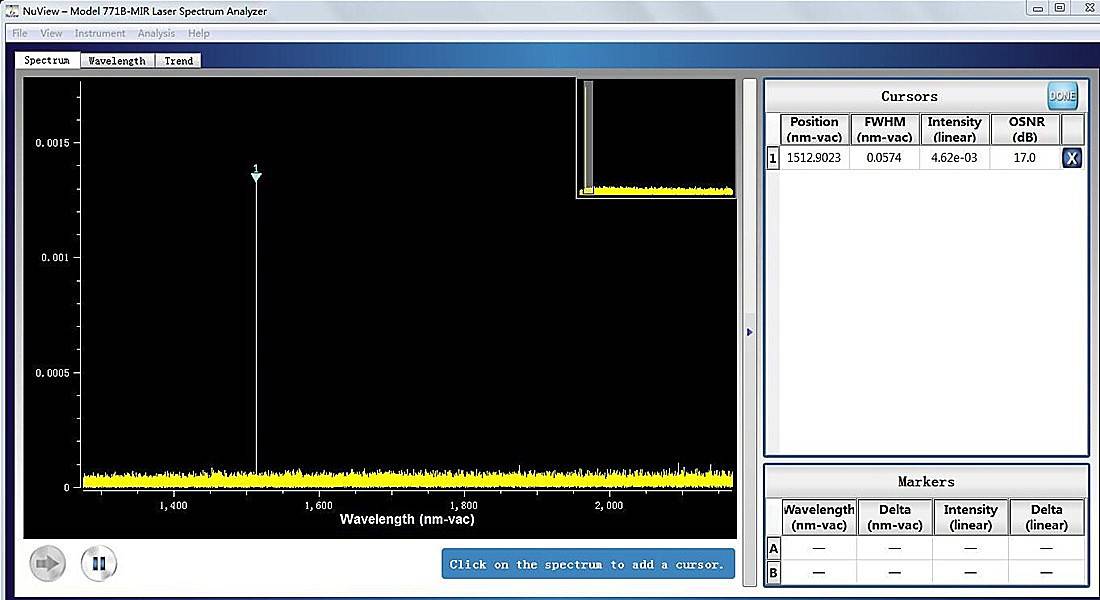

    Central Wavelength:






    Beam Quality Analysis




    Dimensions



    PN#

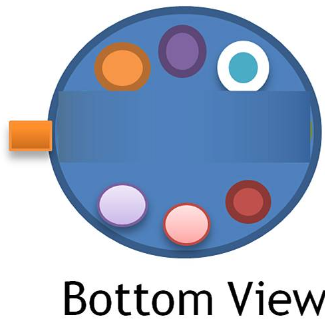

    Pin Definition

    1

    Cooler+

    2

    LD+

    3

    Thermistor

    4

    Thermistor

    5

    LD-

    6

    Cooler-

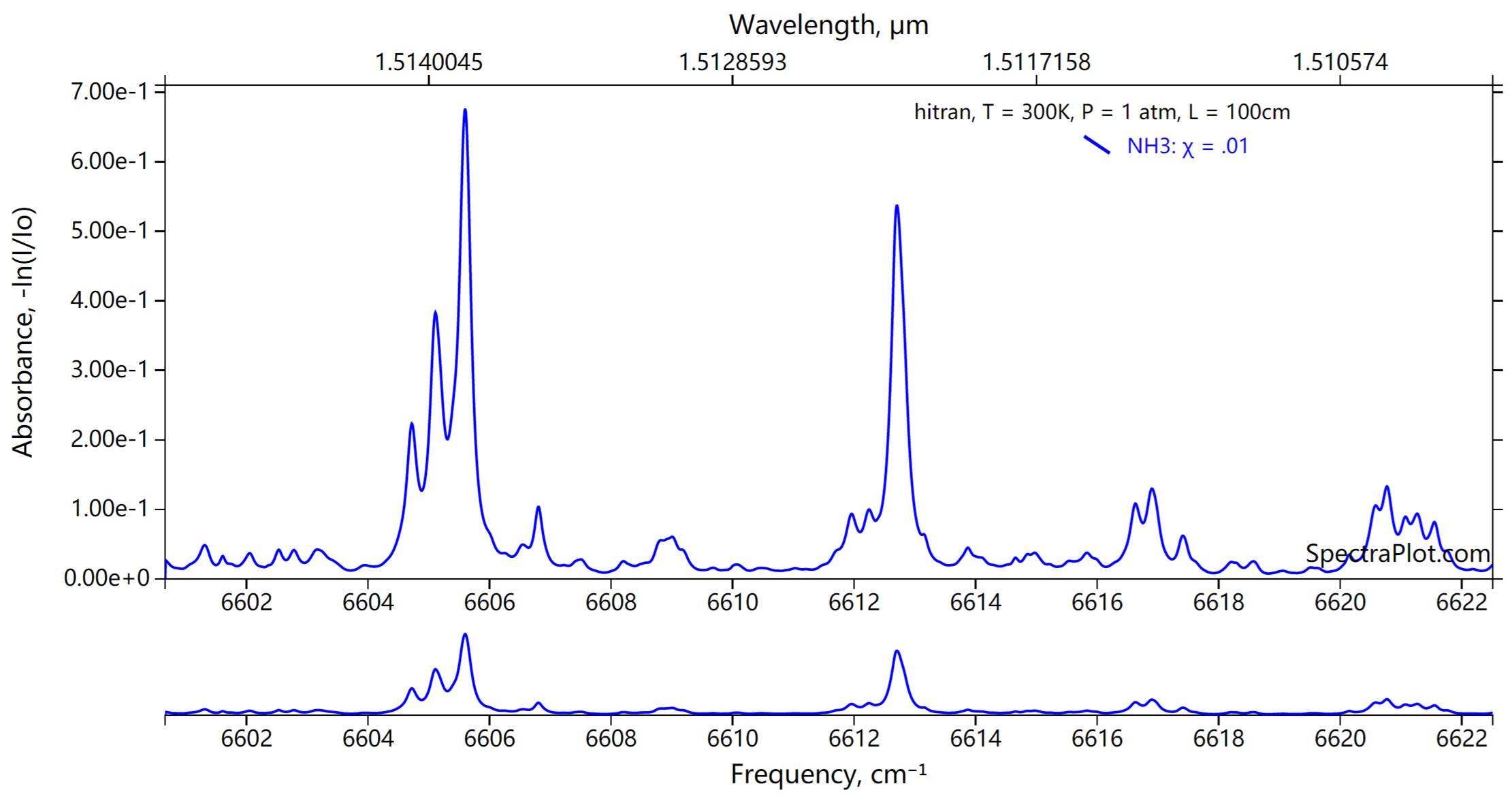

    Ammonia Absorption Spectrum






    PL-DFB-□□□□-☆-A8▽-TO5

    □□□□：wavelength

    0760：760nm

    1270：1270nm

    1532：1532nm

    1392：1392nm

    1512：1512nm

    1567: 1567nm

    1653.7: 1653.7nm

    ☆：output power

    A：10mW

    B：20mW

    ▽：wavelength tolerance

    1：±1nm

    2：±2nm



    可选配置表
    产品资料

    新品推荐

    • 精品现货
    • 非标定制
    • 质量保证
