    • 2004nm single-mode high-power DFB laser (TO39 package, dedicated for CO2 detection)

    The PL-DFB-2004-A-A81 2004nm DFB laser diode module manufactured by Idealphotonics is a cost-effective, high coherence laser source. The DFB laser diode chip is housed in an industry standard hermetic TO39 package with built-in TEC and PD.

    产品特点Narrow linewidth < 2MHz、 Excellent wavelength control and stability Industry standard TO39 package、 Mode-Hop free tuning Excellent reliability、 Customer specific wavelengths available

    产品货号A80011318

    应用领域Tunable diode laser absorption spectroscopy、 CO2 monitoring

    产品单价联系客服询价

    到货日期请咨询客服获得货期

    产品库存请咨询客服

    Daisy

    电话：18602170419

    邮箱：moli@microphotons.com

    加入询价单 在线咨询

    收藏

    相关产品

    主要参数
  • 核心参数

  • 尺寸图

    • Parameter

    Electrical/Optical Characteristics (Tsub=25°C, CW bias unless otherwise specified)

    parameter

    symbol

    Min.

    typical

    Max.

    Unit

    Central wavelength

    λ

    2003

    2004

    2005

    nm

    Side mode suppression ratio

    SMSR

    30

    40


    dB

    Threshold current

    UTH


    20

    30

    mA

    Operating current

    IOP


    80

    120

    mA

    Chip output power

    Pf

    2

    3

    5

    mW

    Quantum efficiency

    η

    0.08

    0.12


    nm/mA

    Current tuning coefficient



    0.015


    Nm/mA

    Temperature adjustment coefficient



    0.12


    nm/K

    Forward voltage

    VF


    1.3

    2

    V

    Thermistor

    RT

    9.5

    10

    10.5

    kΩ

    Thermistor temperature coefficient



    -4.4


    %/°C

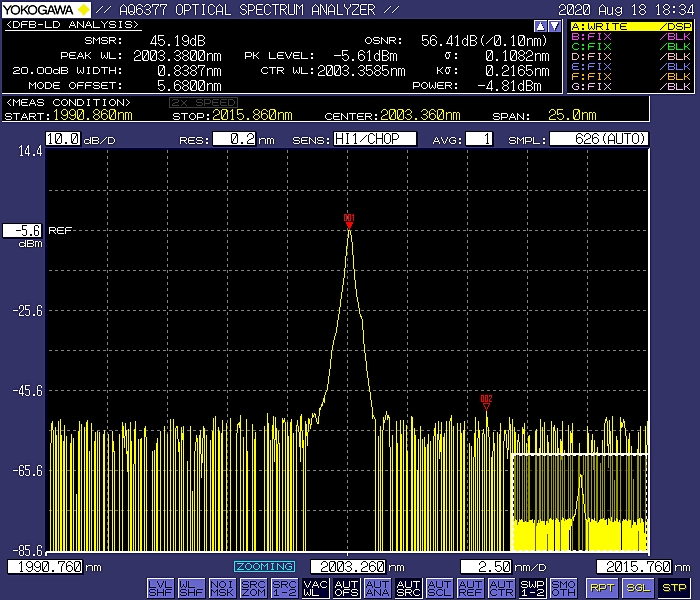

    Spectrum

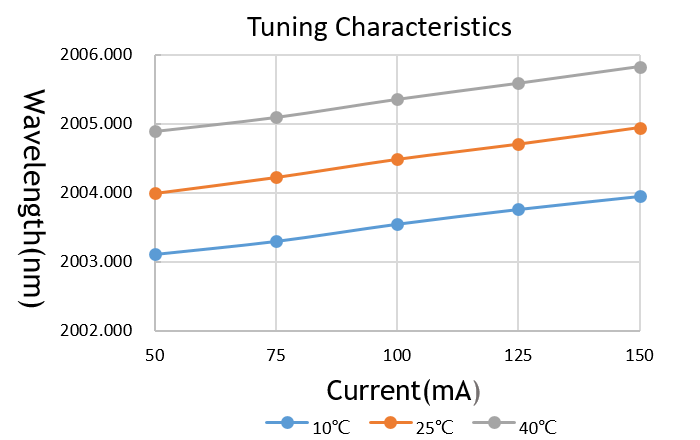

    Tuning characteristics:

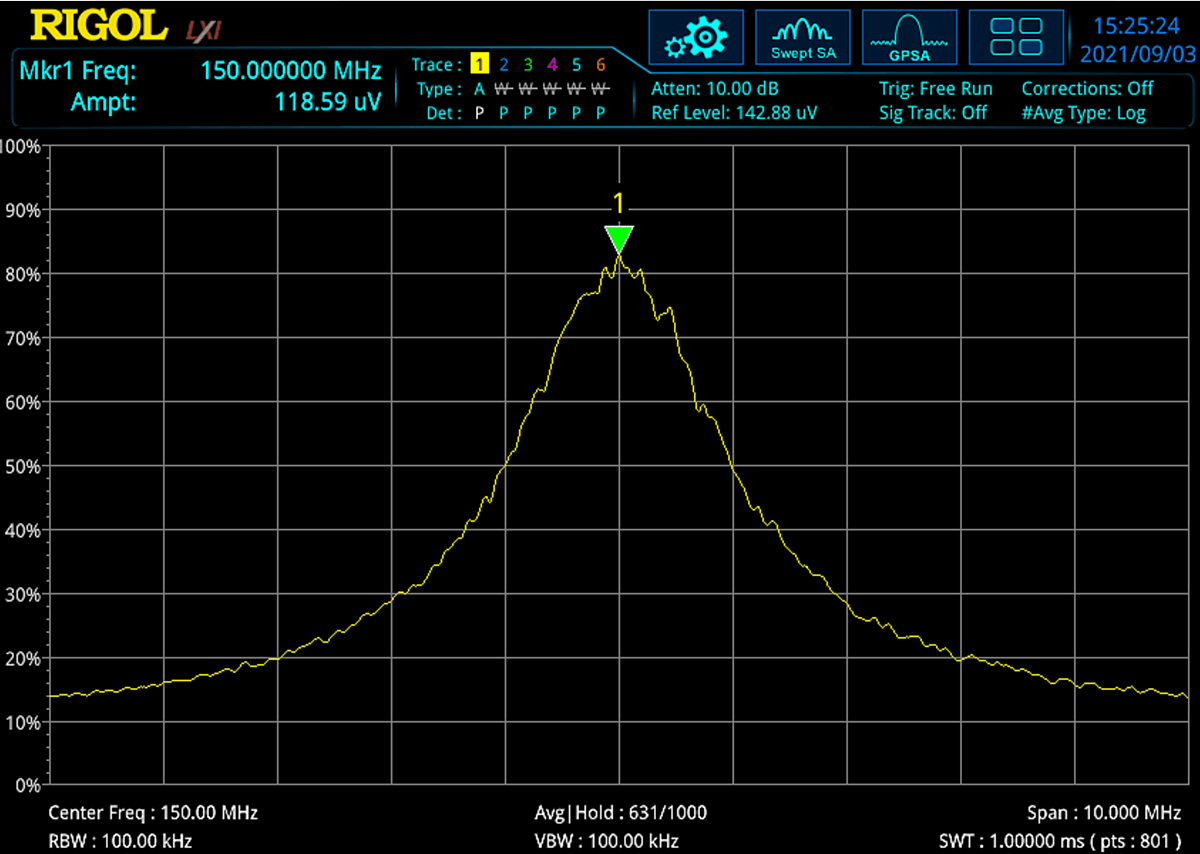

    DFB line width test result

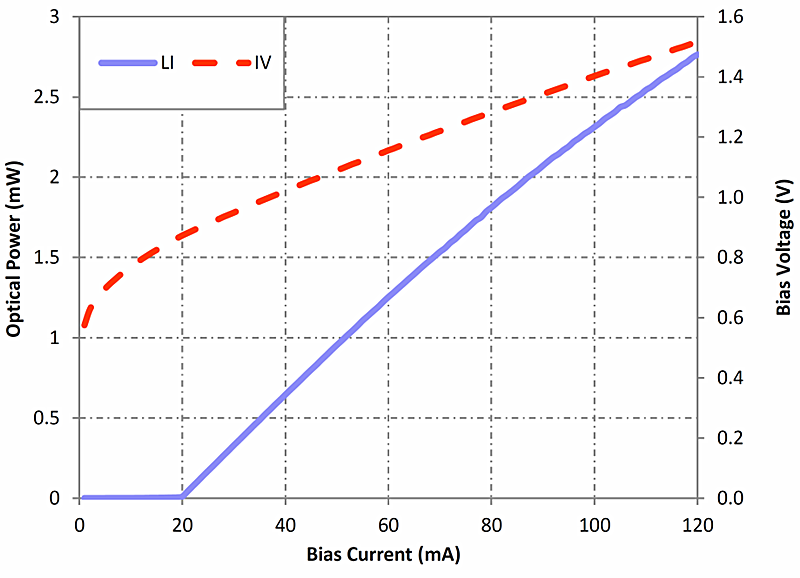

    LI curve

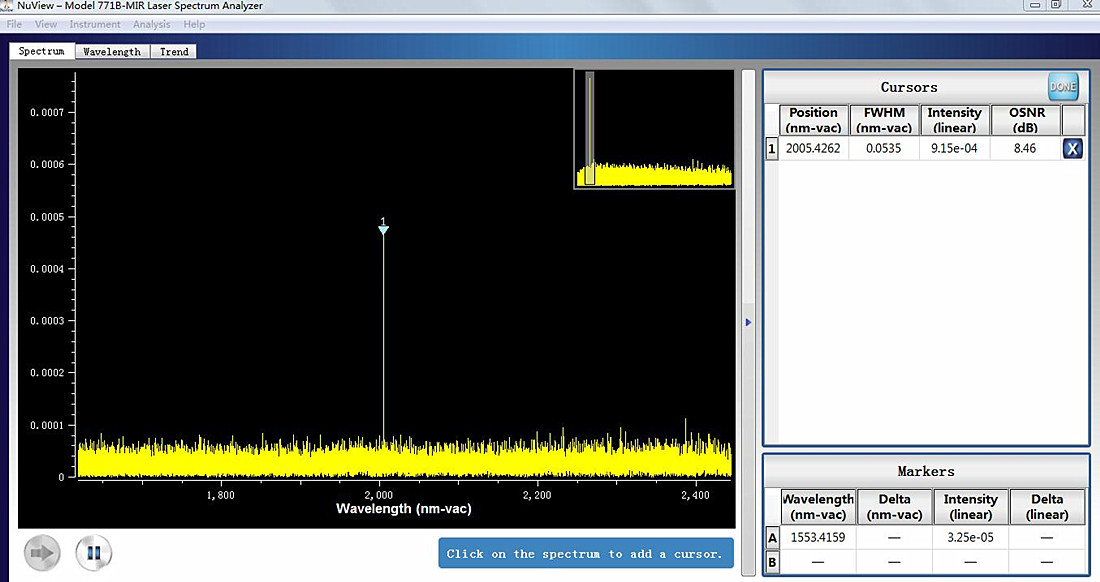

    Central wavelength

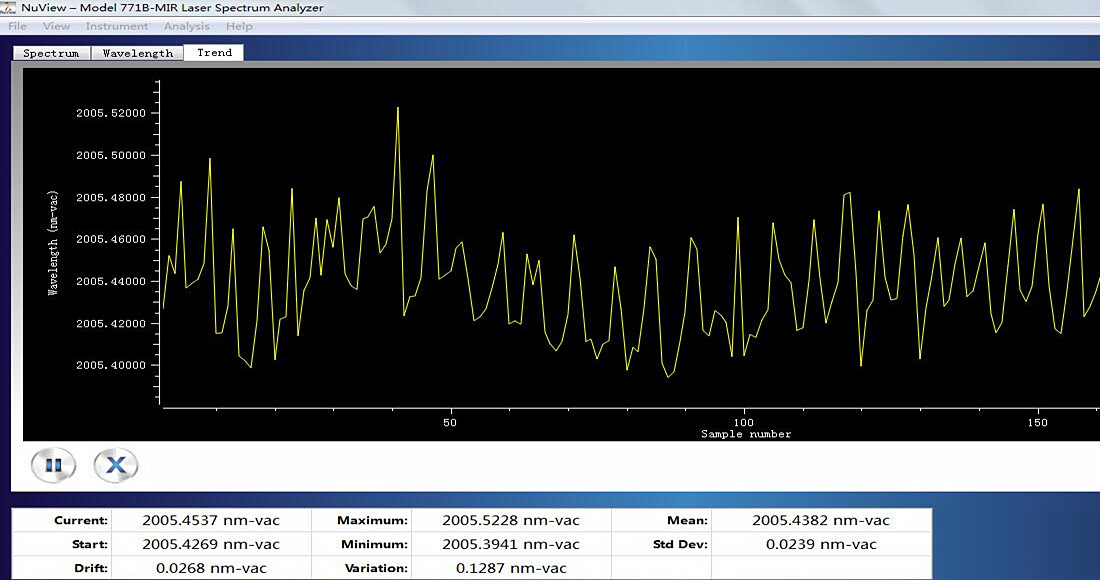

    Wavelength stability

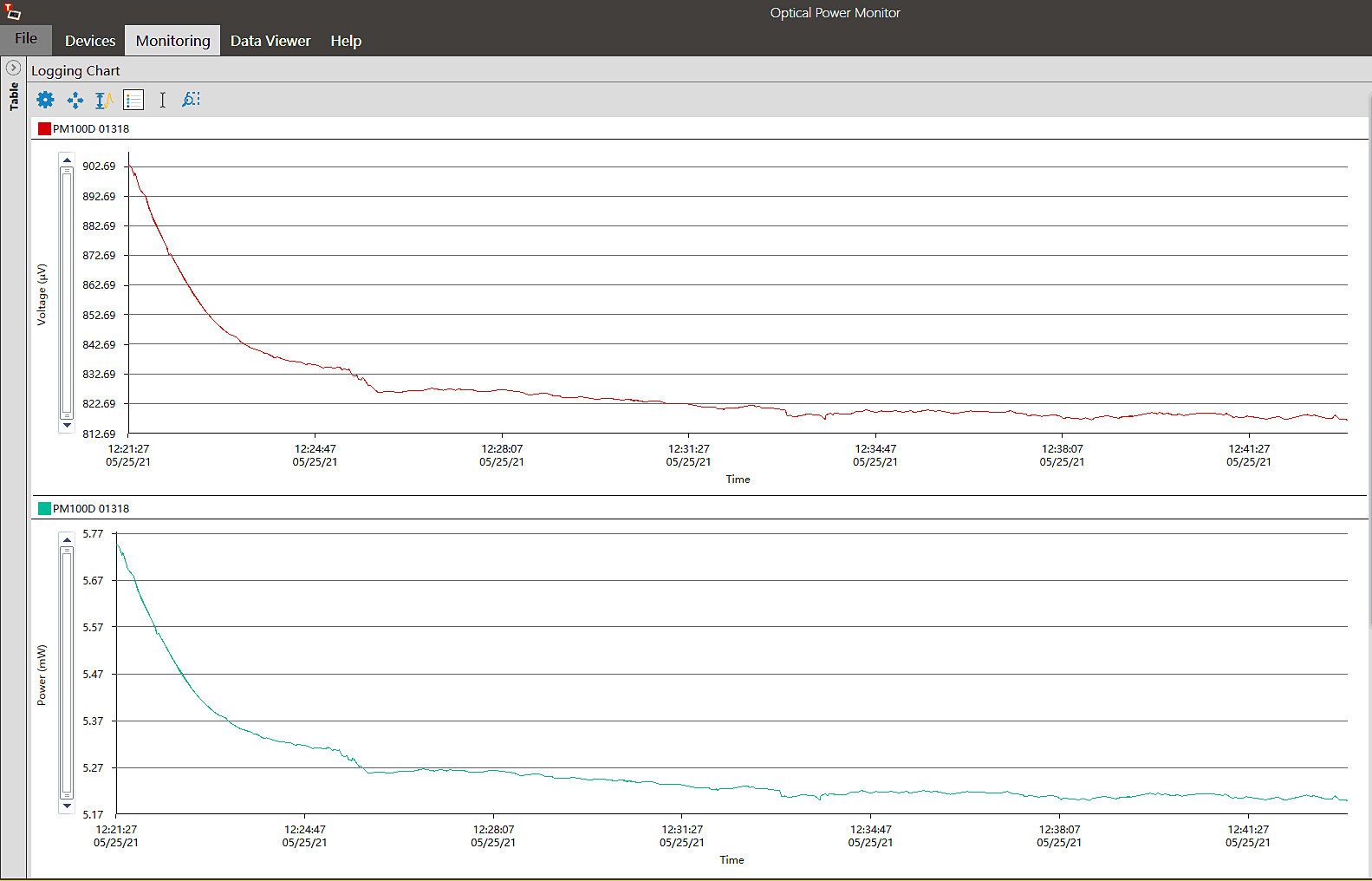

    Power stability

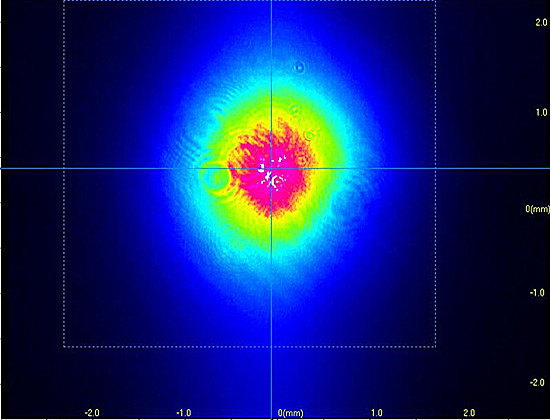

    Beam quality


    2D

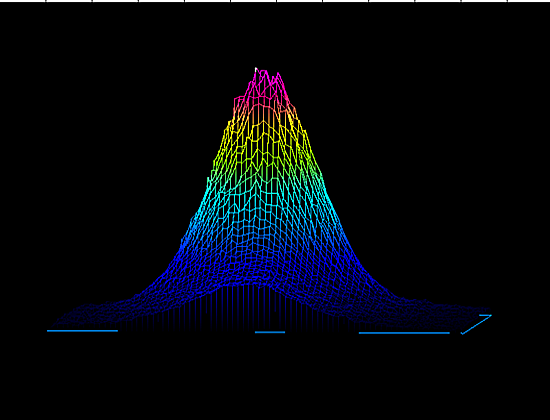

    3D

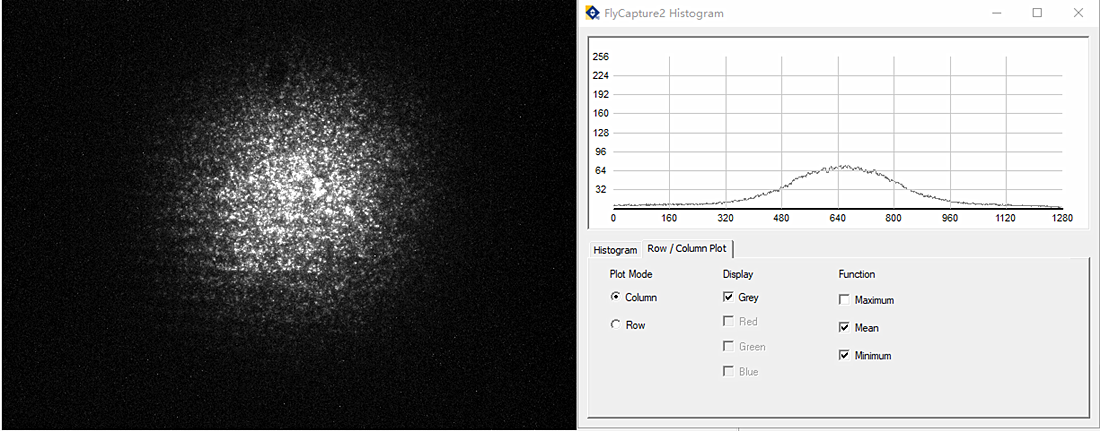

    Camera Analysis





    Absolute Maximum Ratings

    Item

    Unit

    Min.

    Typical

    Max.

    Case temperature

    ℃

    -5

    25

    70

    Chip temperature

    ℃

    +10

    25

    40

    Operating current

    mA

    0

    100

    120

    Forward voltage

    V

    0.8

    1.2

    1.8

    TEC current

    A

    -

    -

    1.2

    Reverse voltage (LD)

    V

    -

    -

    2.0

    Reverse voltage (PD)

    V

    -

    -

    20

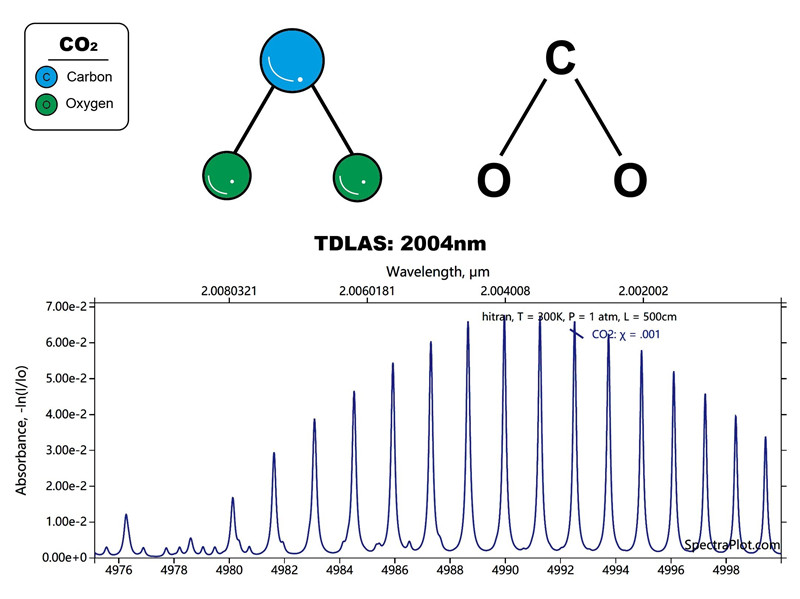

    Carbon dioxide



    Ordering Information

    PL-DFB-□□□□-☆-A8▽-TO39

    □□□□：wavelength

    1530：1530nm

    1600.8：1600.8nm

    *****

    2004：2004nm

    ☆ ：output power

    A：2 mW

    B：5mW

    ▽：wavelength tolerance

    1：±1nm

    2：±2nm
