    • 760nm single mode vertical cavity surface emitting laser VCSEL TO39 P760/01_2

    760nm single-mode vertical cavity surface emitting laser (VCSEL) has the advantages of high output power, narrow line width and good consistency, 2nm tuning range, designed for tunable semiconductor laser absorption spectroscopy (TDLAS) applications, built-in anti-static (ESD) protection.

    产品特点Maximum ratings、 2.5mA laser forward current、 10mA backward current

    产品货号A80040007

    应用领域

    产品单价联系客服询价

    到货日期请咨询客服获得货期

    产品库存请咨询客服

    Daisy

    电话：18602170419

    邮箱：moli@microphotons.com

    加入询价单 在线咨询

    收藏

    相关产品

    主要参数
  • 核心参数

  • 尺寸图

    • Parameter

    Product features：Maximum ratings、 2.5mA laser forward current、 10mA backward current

    parameter

    symbol

    Unit

    Min.

    Typical

    Max.

    Condition

    Emission wavelength

    λR

    nm

    759

    760

    761

    T = 20°C, ITEC = 0, POP = 0.3 mW

    Threshold current

    ITH

    mA


    0.5


    T = 20°C

    Output power

    Popt

    mW

    0.3



    T = 25°C

    Laser current

    IOP

    mA



    2.0

    2.0 Popt = 0.3 mW

    Laser voltage

    UOP

    V


    2.0


    Popt = 0.3 mW

    Slope efficiency

    ηS

    W/A


    0.3


    T = 20°C

    Differential series resistance

    RS

    Ω


    250


    Popt = 0.3 mW

    3db modulation bandwidth

    ν3dB

    GHz

    0.1



    Popt = 0.3 mW (ESD protection diodes)

    Wavelength tuning current


    nm/mA


    0.6



    Wavelength over temperature tuning


    nm/K


    0.06



    Thermal resistance (VCSEL chip)

    Rthermal

    K/mW

    3.0


    5


    Side mode suppression


    dB

    20




    Beam divergence

    θ

    °

    10


    25

    Popt = 0.3 mW, full width 1/e2

    Integrated TEC and thermistor

    TEC current


    mA



    500


    NTC thermistor


    KΩ

    10

    10

    11

    T = 25°C

    NTC temperature dependence


    KΩ




    10/exp[3892 · (1/298K-1/Top)]



    Top view

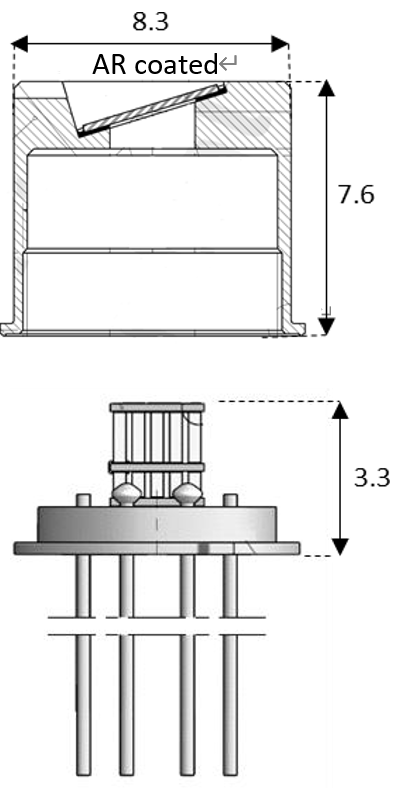

    Size: mm

    1. Single-mode surface-emitting laser (VCSEL)

    2. Zener diode (Z-Diode)

    3. Thermistor

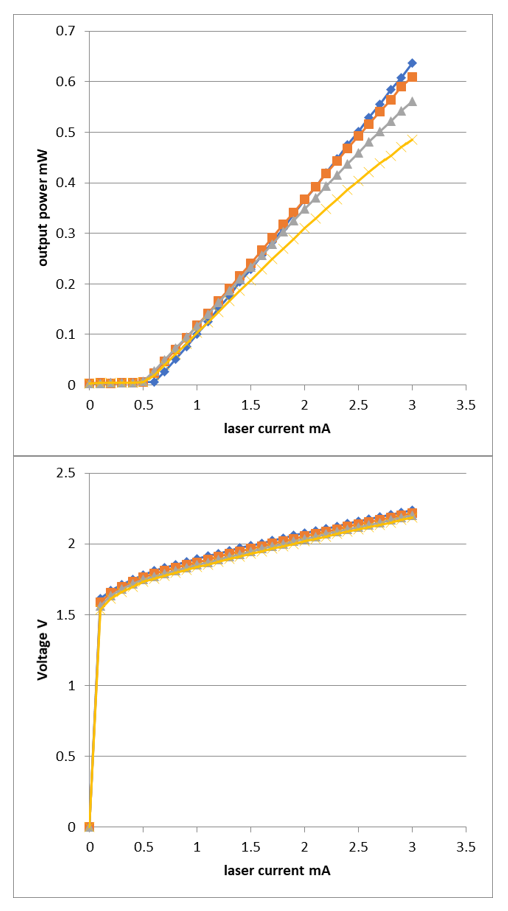

    Test table：

    Aging time 200h@80°C, 2mA
