    • ZBLAN Mid-Infrared Large Core Power Transmission Fiber, Core Diameter 400μm

    ZBLAN fiber is a composite glass fiber composed of heavy metal fluorides such as ZrF4, BaF2, LaF3, AlF3, and NaF. Compared to the widely used silica fiber, ZBLAN fiber offers a wide transmission wavelength range (0.35μm to 4μm) and high emission efficiency when doped with rare earth ions. Through the development of a unique fiber manufacturing technology, Idealphotonics Optics has introduced a low-cost method to produce high-quality (especially low-loss) fluoride fibers.

    产品特点The effective transmission range is from 300nm to 5500nm、 Outstanding spectral uniformity、 High laser damage threshold、 Ideal choice for ho and erbium laser transmission、 High core-to-cladding ratio for high efficiency beams

    产品货号C80010016

    应用领域Laser remote sensing spectroscopy、 Chemical sensing、 Medical diagnostics、 Laser beam transmission、 FLIR (Forward Looking Infrared)、 Thermometers

    产品单价联系客服询价

    到货日期请咨询客服获得货期

    产品库存请咨询客服

    Sherry

    电话：16628709332

    邮箱：moli@microphotons.com

    加入询价单 在线咨询

    收藏

    相关产品

    主要参数
  • 核心参数

  • Core diameter numerical aperture

  • 尺寸图

    • Item

    ZMF-400/   500-N-0.27

    ZMF-160/   200-N-0.27

    ZMF-100/   125-N-0.27

    Custom fiber

    Fiber type

    Step Index

    Core dia. (µm)

    400±25

    160±10

    95±5

    60 ~ 800

    Cladding dia. (µm)

    500±25

    200±10

    123±5

    80 ~ 1,000

    Coating dia. (µm)

    600±30

    480±30

    460±30

    100~ 600

    NA

    0.27±0.01


    0.22, 0.27, 0.30


    Loss@2.5µm (dB/m)

    <0.1

    Core/

    cladding glass

    ZBLAN fluoride glass

    Coating  material

    UV curable acrylate

    Proof test

    6cm radius

    2cm radius

    1.25cm radius

    TBD





    Item

    RE doped Single Cladding Fiber

    RE doped Double Cladding Fiber

    Fiber type

    Step index

    Dopant

    Pr, Nd, Ho, Er, Dy, Tm, Yb, others

    Dopant

    concentration

    500~60,000

    Core diameter (µm)

    2~

    Core NA

    0.06, 0.12, 0.16, 0.21, 0.26


    1st Cladding    diameter (µm)

    123±3

    123, 200, 500

    1st Cladding shape

    Circular

    Circular Octagonal   Rectangular, etc.N/A

    1st Cladding NA

    N/A

    > 0.5

    2nd cladding   thickness (µm)

    N/A

    >30

    2nd cladding material

    N/A

    Fluoro-acrylate

    Outer diameter (µm)

    460±30

    460, 480, 600

    Core/Cladding glass

    ZBLAN fluoride glass

    Coating material

    UV curable acrylate

    Proof test

    1.25cm radius

    TBD

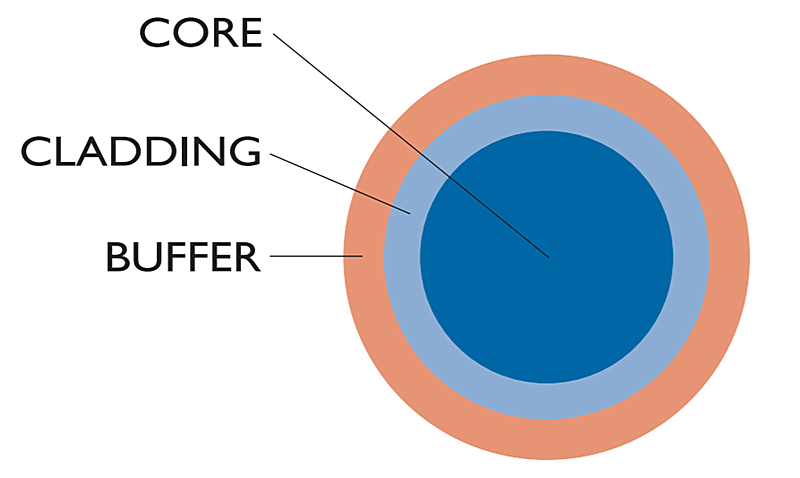

    Fiber structure

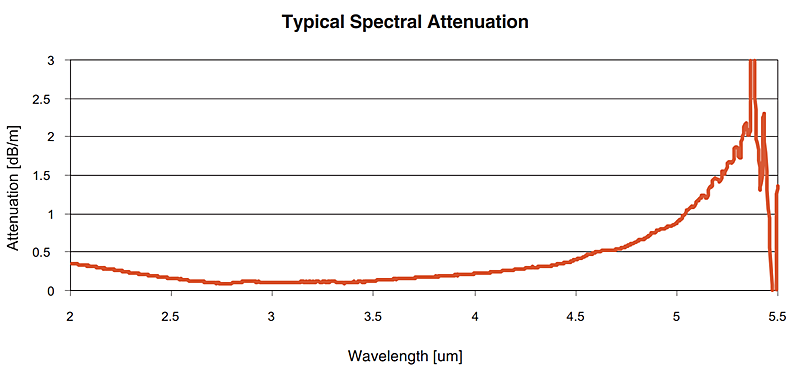

    Typical attenuation values at various wavelengths






    Ordering info

    Name: Single-mode Mid-Infrared Fluoride Fiber

    Model: ZSF-9/125-N-0.20

    Core Diameter: 9 ± 1 µm

    Numerical Aperture (NA): 0.20 ± 0.01

    Cutoff Wavelength: <2.6 µm

    Loss: <0.1 dB/m at 1.5 µm

    Cladding Diameter: 123 ± 3 µm

    Outer Coating Diameter: 460 ± 30 µm

    Core/Cladding Material: ZBLAN Fluoride Glass



    Name: 400 µm Large-Core Mid-Infrared Transmission Fiber
    Model: ZMF-400/500-N-0.27
    Core Diameter: 400 ± 25 µm
    Cladding Diameter: 500 ± 25 µm
    Outer Coating Diameter: 600 ± 30 µm
    Numerical Aperture (NA): 0.27 ± 0.01
    Loss: <0.1 dB/m at 2.5 µm
    Core/Cladding Material: ZBLAN Fluoride Glass



    Name: 200 µm Large-Core Transmission Fiber
    Model: ZMF-160/200-N-0.27
    Core Diameter: 160 ± 25 µm
    Cladding Diameter: 200 ± 25 µm
    Outer Coating Diameter: 480 ± 30 µm
    Numerical Aperture (NA): 0.27 ± 0.01
    Loss: <0.1 dB/m at 2.5 µm
    Core/Cladding Material: ZBLAN Fluoride Glass



    Name: 100 µm Large-Core Transmission Fiber
    Model: ZMF-100/125-N-0.27
    Core Diameter: 95 µm
    Cladding Diameter: 125 µm
    Outer Coating Diameter: 460 ± 30 µm
    Numerical Aperture (NA): 0.27 ± 0.01
    Loss: <0.1 dB/m at 2.5 µm
    Core/Cladding Material: ZBLAN Fluoride Glass
