    IdealPhotonics’ Cadmium Telluride Mercury (CdTeHg) Amplified Photodetector has a sensitive range covering 2-11 µm. It features 8 adjustable gain levels for precise, quantifiable photoconversion. The detector offers a wide dynamic range and is suitable for various infrared photonic development scenarios. With excellent performance and high cost-efficiency, the product provides comprehensive technical support and is commonly used in mid-to-long wavelength infrared measurement applications.

    产品特点Sensitive Range: 2-11 µm, for infrared measurements、 8 Adjustable Gain Levels: Quantitative photoconversion、 Wide Dynamic Range: Non-cooled, versatile for various applications、 Excellent Performance, High cost-efficiency, offering comprehensive technical support、 Custom Services: Provides customizations to meet specific application needs

    产品货号E80043196

    应用领域Mid-to-long wavelength infrared measurement

    产品单价联系客服询价

    到货日期请咨询客服获得货期

    产品库存请咨询客服

    Sherry

    电话：16628709332

    邮箱：moli@microphotons.com

    加入询价单 在线咨询

    收藏

    相关产品

    主要参数
  • 核心参数

  • 尺寸图

    • Main Parameters



    Parameter

    Value

    Wavelength Range

    2-5um

    2-12um

    Peak Wavelength

    4.5um

    10.6um

    Response Time Constant

    ≤120ns

    1.5ns

    D*

    2.0X1010cm·Hz1/2/W

    1.0X107cm·Hz1/2/W

    7.0X108cm·Hz1/2/W

    Signal Amplitude

    Hi-Z load: 0 ~ 10V; 50Ω load: 0 ~ 5V

    Gain Adjustment Method

    Rotatable switch, 0-70dB, 8 steps (10 dB per step). Bandwidth is inversely proportional to gain.

    Sensitive Area Size

    1mm×1mm

    Sensor Depth

    0.13"     (3.3  mm)

    Detector Net Weight

    0.10kg

    Operating Temperature

    10-40℃

    Storage Temperature

    -20-70℃

    Dimensions

    2.79" X 2.07" X 0.89"  (70.9  mm X  52.5  mm X  22.5  mm)

    Photoelectric Response

    ≥0.5A/W

    ≥0.004A/W

    ≥0.14A/W

    Optical wetting

    With wetting lens

    without wetting

    With wetting lens

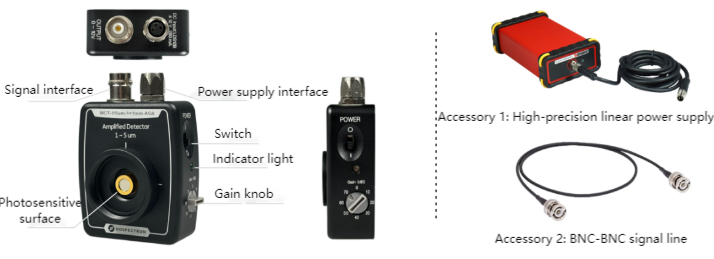

    Power Interface

    Power Switch

    Signal Interface

    Gain Adjustment

    Support Rod Interface

    Optical Interface

    LUMBERG  RS MV3  FEMALE

    Slide switch with LED indicator

    BNC Female Socket

    8-step rotary knob

    M4×2

    SM1 × 1

    SM0.5 × 1




    Eight-Stage Quantitative Adjustable Gain Parameters:



    0dB

    10dB

    20dB

    30dB

    Gain (Hi-Z)

    1.51× 103V/ A

    Gain (Hi-Z)

    4.75× 103V /A

    Gain (Hi-Z)

    1.5 × 104V/ A

    Gain (Hi-Z)

    4.75× 104 V/A

    Gain (50Ω)

    0.75× 103V/ A

    Gain (50Ω)

    2.38× 103V /A

    Gain (50Ω)

    0.75× 104V /A

    Gain (50Ω)

    2.38× 104 V/A

    Bandwidth (BW)

    13MHz

    Bandwidth (BW)

    1.7MHz

    Bandwidth (BW)

    1.1MHz

    Bandwidth (BW)

    300kHz

    Noise (RMS)

    ≤250uV

    Noise (RMS)

    ≤250uV

    Noise (RMS)

    ≤250uV

    Noise (RMS)

    ≤250uV

    40dB

    50dB

    60dB

    70dB

    Gain (Hi-Z)

    1.51× 105V/A

    Gain (Hi-Z)

    4.75× 105V/A

    Gain (Hi-Z)

    1.5 × 106V/A

    Gain (Hi-Z)

    4.75× 106V/A

    Gain (50Ω)

    0.75× 105V/ A

    Gain (50Ω)

    2.38× 105V /A

    Gain (50Ω)

    0.75× 106V /A

    Gain (50Ω)

    2.38× 106 V/A

    Bandwidth (BW)

    90kHz

    Bandwidth (BW)

    28kHz

    Bandwidth (BW)

    9kHz

    Bandwidth (BW)

    3kHz

    Noise (RMS)

    ≤250uV

    Noise (RMS)

    ≤250uV

    Noise (RMS)

    ≤300uV

    Noise (RMS)

    ≤400uV

    Signal Bias

    ±8mV(Typ.) ， ±12mV(Max)

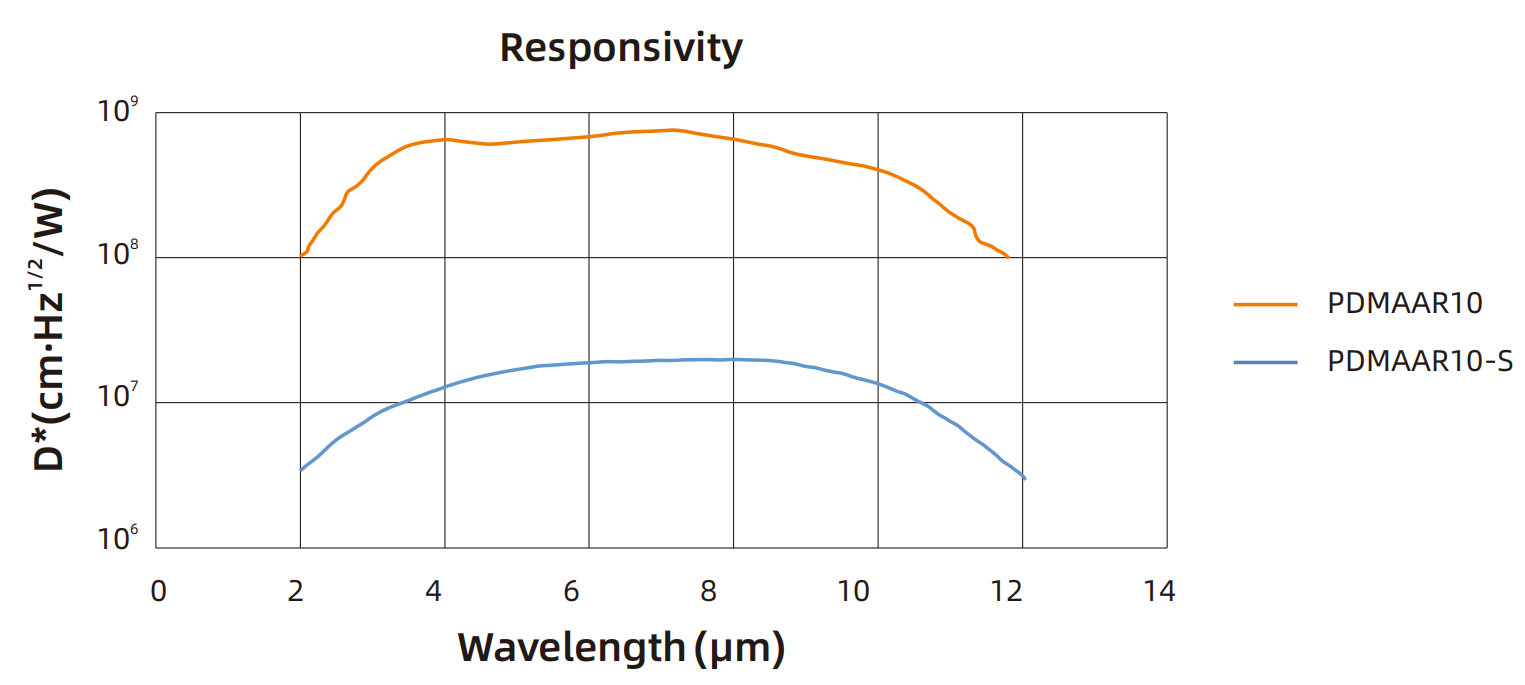

    Response curve

    2-12umMCT amplified photodetector/2-12umMCT amplified photodetector sensitive model





    Product Configuration





    Attachment 1: Optional Configuration Table

    Cadmium Mercury Telluride (MCT) Photodetector

    Optional Configurations

    Product Name

    Material

    Type

    Features

    Wavelength Range Sensitive Area

    Optional Configurations



    PD: "Photodetector"



    M: MCT (Cadmium Mercury Telluride)



    A: Amplified



    A: Adjustable Gain



    S10： 1-5um ， 1mm×1mm

    -S: Sensitive version for 2-12um
