    • Hexagonal Microstructured Optical Fiber for Supercontinuum White Light Source Core Diameter: 5.0 ± 0.3 ?

    Supercontinuum white light sources are based on the broadening of pulse spectrum produced by nonlinear effects. Compared with other materials or ordinary optical fibers, the microstructured optical fiber designed by us for supercontinuum white light sources has excellent dispersion adjustment ability and can obtain efficient optical frequency conversion. The light source system can be widely used in spectral analysis, optical fiber testing, sensing and other fields.

    Product features：High-temperature resistance 、Durability, high bending strength, and sealing performance 、Enables the welding of embedded optical fibers, fiber bundles, and pigtails into high-vacuum environments

    Part Number：--

    Application area：High-temperature environments 、Harsh chemical environments 、Nuclear radiation environments 、High-power laser transmission 、Medical applications 、Optical fiber bundle welding 、Material characterization, spectral analysis 、Confocal imaging, optical coherence tomography 、Biological application technology research, flow cytometer

    Add to Cart Consult Favorite

    Related Products

    Main parameters
  • Core parameters

  • Dimension Drawing
    • General Parameters

    Parameters

    Spec

    PN#

    MOF_SC_SCP5/150/270

    Core Diameter:

    5.0±0.3 μm

    Microstructure Period:

    3.3±0.1 μm

    Zero scatter point:

    1.06 μm customizable

    Cladding diameter:

    150±3 μm

    Coating diameter:

    270±3 μm

    Material:

    Pure quartz



    Coating material:

    Polyimide/acrylic resin

    Screening intensity:

    100 kpsi

    Microstructure Air Hole Diameter:

    1.6 ± 0.1µm

    Geometric

    Delivery length:

    1 - 500   m

    Cladding diameter:

    150 ± 1   µm

    Coating diameter:

    270 ± 5 µm

    Core cladding concentricity

    ≤3   µm

    Cladding non-circularity

    ≤0.5

    Screening intensity:

    100   kpsi

    Light source system


    Supercontinuum light source

    Repetition rate:

    15~30 kHz

    Spectral broadening:

    450~2400 nm

    Total output power:

    ＞200 mW

    Pulse width:

    ＜2 nm

    Beam quality TEM00:

    M2<1.1

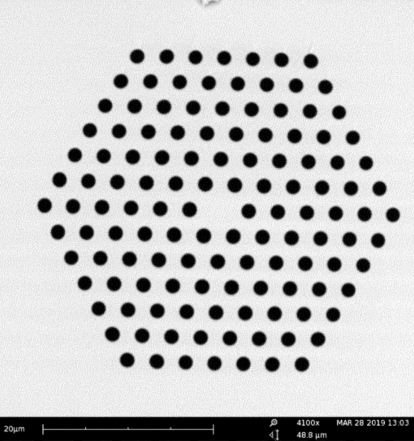

    Structure


    Super continuum Spectrum Generation Microstructured Optical Fiber and Its Dispersion Curve





    Manufacturing Platform





    Ordering info

    PN#MCS1550 Hexagonal Microstructured Optical Fiber for Supercontinuum White Light Source

    Optional Configurations

    --

    Downloads

    Hexagonal Microstructured Optical Fiber for Supercontinuum White Light Source Core Diameter: 5.0 ± 0.3 ?.pdf
