High Nonlinear Microstructured Optical Fiber

High Nonlinear Microstructured Optical Fiber

Using the most advanced fiber fabrication technologies, we can manufacture ultra-nonlinear photonic crystal fibers. Based on a high duty cycle structure design, the fiber exhibits ultra-high nonlinearity and allows for custom tailoring of its waveguide dispersion curve. This type of fiber is an ideal choice for supercontinuum generation and optical frequency comb generation.

Product features：High-temperature resistance 、Durability, high bending strength, and sealing performance 、Enables the welding of embedded optical fibers, fiber bundles, and pigtails into high-vacuum environments

Part Number：--

Application area：High-temperature environments 、Harsh chemical environments 、Nuclear radiation environments 、High-power laser transmission 、Medical applications 、Optical fiber bundle welding

Add to Cart Consult Favorite

Related Products

C-band high nonlinear optical fiber dispersion 0.0±1ps/(nm.km

Main parameters
General Parameters
Optional Configurations
Downloads

Main parameters

Core parameters

Dimension Drawing

General Parameters

Parameters	Property
Fiber Material	High-purity quartz
Zero Dispersion@1550 nm	790 nm
Dispersion@1550 nm	130 ps/(nm.km)
Mode Field Diameter	1.7 ± 0.3 μm
Core Diameter	2.1± 0.3 μm
Numerical Aperture NA@1550 nm	0.48 ± 0.05
Nonlinear Coefficient	20 ± 3 km^-1W^-1
Cladding Non-circularity	≤0.5

Delivery length	1 - 50 m
Cladding diameter	150 ± 3µm
Coating diameter	250 ± 5 µm（Polyacrylic resin）
Core-cladding concentricity	≤5µm
Cladding Non-circularity	≤0.5
Proof strength	100 kpsi
Coating materials	Polyimide or Polyacrylic resin
Long-term operating temperature	Polyimide -55 - 300 ℃ Polyacrylic resin 0 - 90 ℃
Short-term tolerable temperature	Polyimide 400 ℃ Polyacrylic resin 120℃

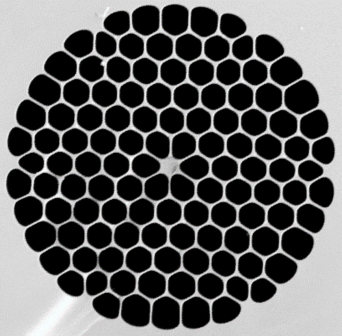

Structure


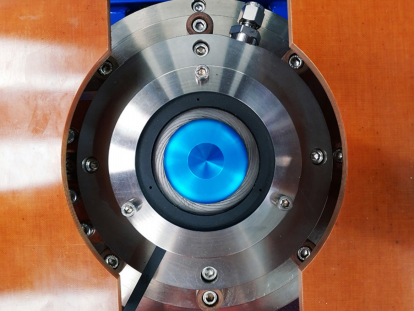

Manufacturing Platform


Ordering info

PN#HNLF-PCF High Nonlinear Photonic Crystal Fiber (HNLF-PCF)
