Idealphotonics' visible light isolator products can maintain excellent return light isolation performance under any polarization state. It has low loss, high isolation, high return loss, low polarization-dependent loss, low polarization mode dispersion, wide operating band and operating temperature range, and no glue in the optical path. These properties provide the possibility of low-cost solutions for communication networks. This series of products can be used in RGB system research, fiber optic equipment and lasers. Our pigtails have better optical performance with the help of our SM600 single-mode optical fiber and HB600 polarization-maintaining optical fiber. The excellent performance makes it more compatible with our 633nm single-mode polarization-maintaining fiber coupler.
产品特点Wide operating wavelength rang & wide operating temperature range、 Low insertion loss & high isolation、 Low polarization-dependence loss and polarization mode dispersion、 No glue in the optical path、 High reliability and stability
产品货号A80150284
应用领域Fiber amplifier、 WDM & DWDM system、 Fiber equipment、 Fiber laser
产品单价联系客服询价
到货日期请咨询客服获得货期
产品库存请咨询客服
Sherry
电话:16628709332
邮箱:moli@microphotons.com
相关产品
Parameter
Parameters | Unit | Value | Note |
Central wavelength (nm) | nm | 633 | Other wavelengths can be customized |
Insertion loss | dB | ≤4.5 | 633nm,3mw,DFB |
Isolation | dB | ≥16 single degree | @25 celsius |
Polarization-dependent loss | dB | ≤0.1dB | |
Fiber type | N/A | Nufern PM630HP | Other fiber types available |
Extinction ratio | dB | 18 | |
Axis alignment | Slow axis alignment | ||
Polarization film dispersion | Ps | <0.25 | |
Polarization dispersion | Ps | <0.05 | |
Return loss (incoming/outgoing) | dB | >45dB | |
Maximum operating power | mW | 500 | |
Operating temperature | ℃ | -5-70℃ | |
Storage temperature | ℃ | -40-85℃ | |
Test light source | 633nm benchtop light | ||
Package size(mm) | As shown below |
Notes:
*. All indicators are without connectors and are only valid at the above wavelengths, polarization states and temperatures
**. Indicators are subject to change without prior notice
Actual test results (633nm 4.7mw DFB laser test results):

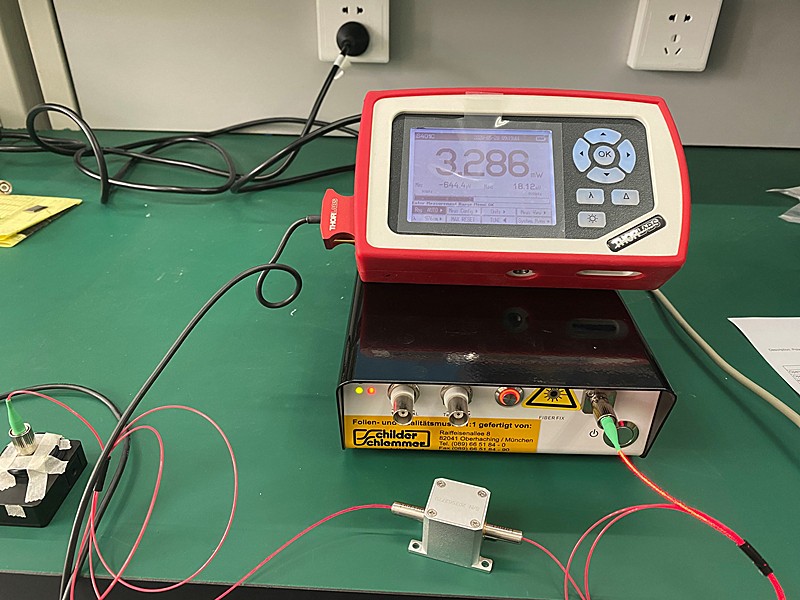

Forward

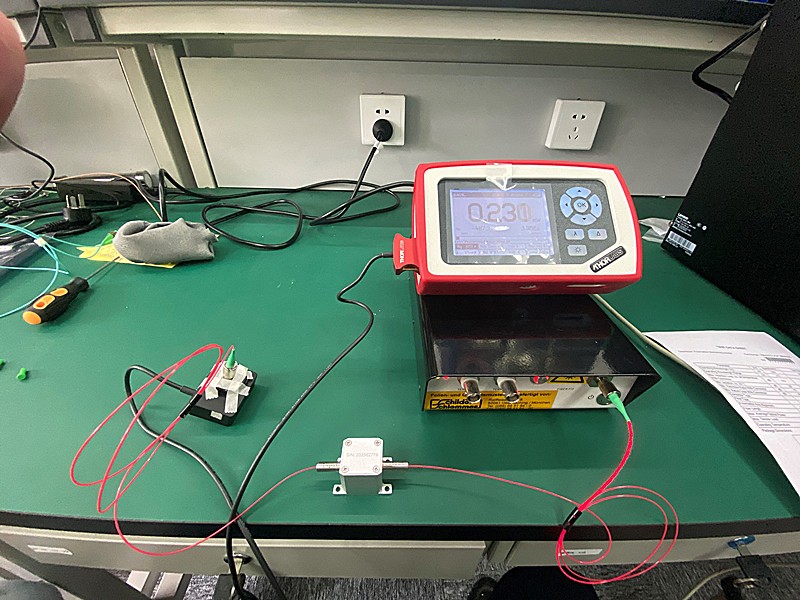

backward
Ordering Information
VIS-ISO- W□□□□-S○-P▽-☆-△-XX
W□ □□□:Wavelength
532:532nm
633:633nm
*****
850:850nm
S○:Stage Numbers
11: single pole isolator
P▽:Package
1: Standard
2:Mini
☆:Pigtail Length
05:0.5m
1:1m
10:10m
△:Loose Tube
B:Bare Fiber
9:900um Loose Tube
20:2mm Loose Tube
30: 2mm Loose Tube
XX: Fiber and Connector Type
SA=SM600+ FC/APC
SP=SM600+ FC/PC
PA=PM630 Fiber+ FC/APC
PP=PM630 Fiber+ FC/PC
