It is a polarization-insensitive optical amplifier with advanced epitaxial wafer growth and optoelectronic packaging technology to achieve high output saturated power, low noise figure and large gain over a wide spectral bandwidth.
产品特点Broadband optical、 High output power、 Low polarization sensitivity、 Multiple quantum well or bulk structures
产品货号B80030105
应用领域Boosting optical amplifiers、 Telecommunications and data communications、 Loss compensation
产品单价联系客服询价
到货日期请咨询客服获得货期
产品库存请咨询客服
Daisy
电话:18602170419
邮箱:moli@microphotons.com
相关产品
Electrical/Optical Characteristics (Tsub=25 ℃ , CW)
Parameter | symbol | OS-SOA-A-A81-W1550-SASA | ||
Min. | Typical | Max. | ||
Operating Current | IOP | - | 450 mA | 500 mA |
Operating Wavelength Range | 1528 nm | - | 1562 nm | |
Center Wavelength | λC | - | 1550 | - |
Saturated Output Power (@ -3 dB) | PSAT | 12 dBm | 14 dBm | - |
Small Signal Gain (Over C-Band @ Pin = -20 dBm) | G | 10 dB | 13 dB | - |
Gain Flatness (Over C-Band @ Pin = -20 dBm) | ΔG | - | 5 dB | 7 dB |
Gain Ripple (p-p) @ IOP, λC | δG | - | 0.1 dB | 0.5 dB |
Polarization Dependent Gain | PDG | - | 1.0 dB | 1.8 dB |
Noise Figure | NF | - | 8 dB | 9.5 dB |
Forward Voltage | VF | - | 1.6 V | 1.8 V |
Chip Length | - | - | 1.5 mm | - |
Waveguide Refractive Index | - | - | 3.2 | - |
TEC Operation (Typical/Maximum @ TCASE = 25/70℃) | ||||
TEC Current | ITEC | - | 0.23 A | 1.5 A |
TEC Voltage | VTEC | - | 0.5 V | 4.0 V |
Thermistor | RTH | - | 10 kΩ | - |
Optical Switch Characteristics Rise Time | ps | - | 1000 | - |
Optical Switch Characteristics Fall Time | ps | - | 1000 | - |

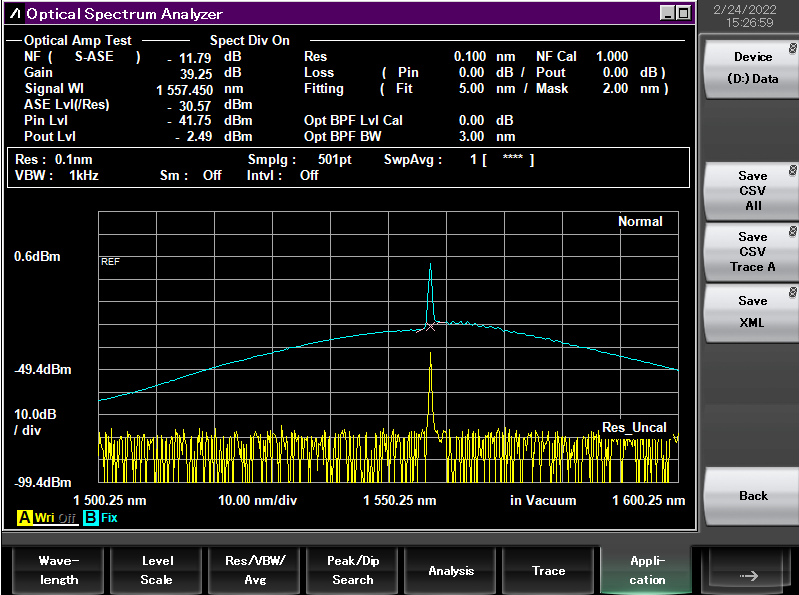

0.1mW seed light before and after amplification
Typical switch response test

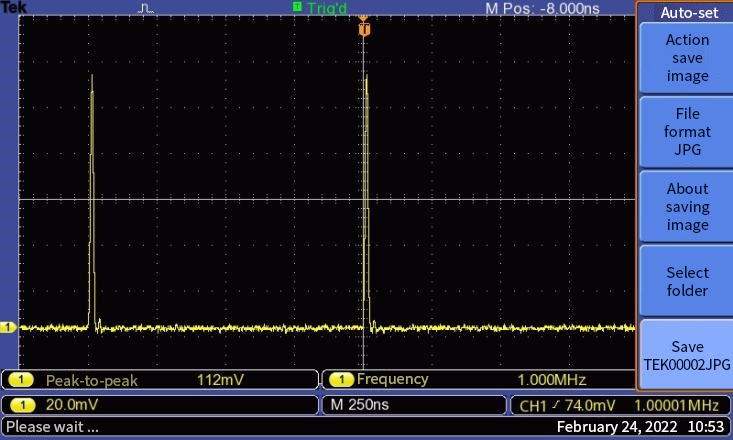

1MHZ RF modulation speed

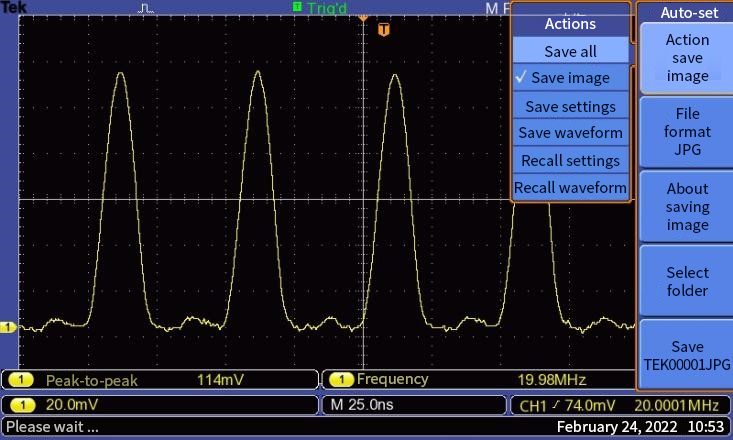

20MHZ RF modulation speed

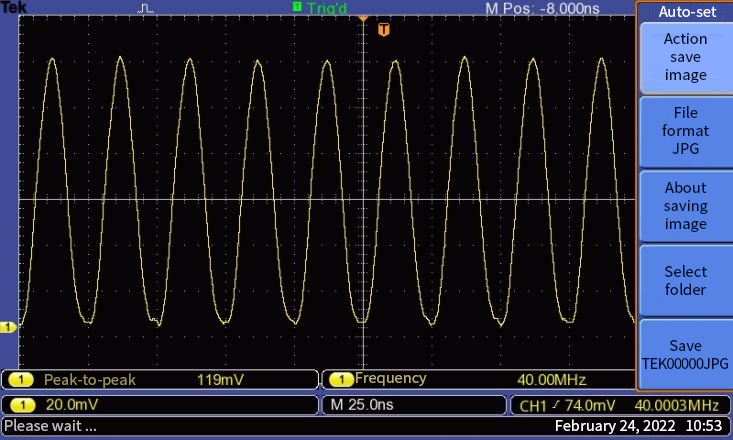

40MHZ RF modulation speed

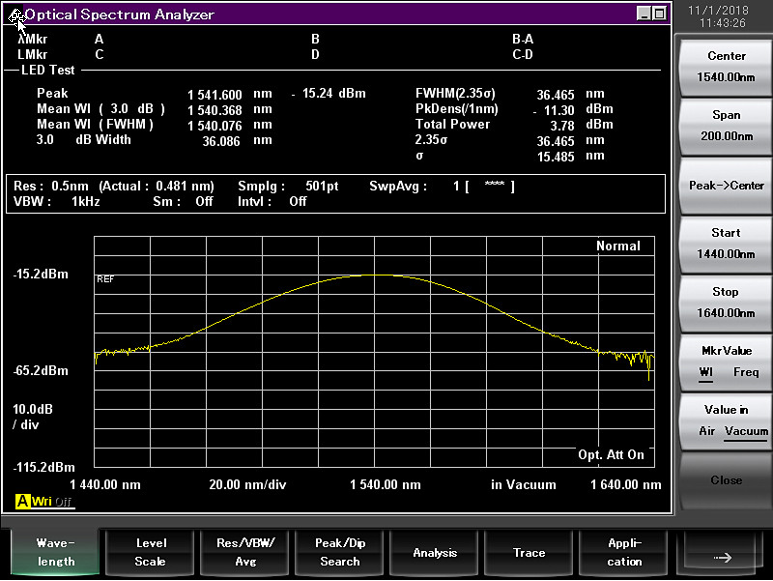

ASE spectrum

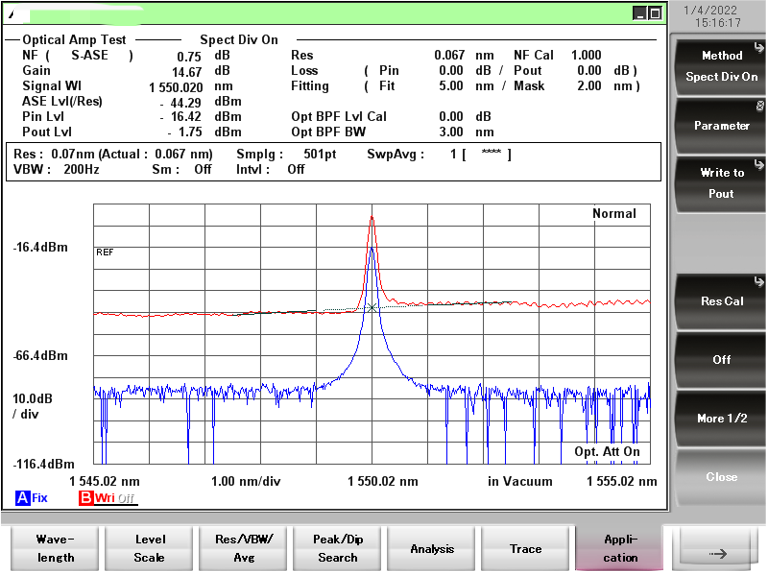

SOA amplifier spectrum (pin=0dBm, I=450mA)

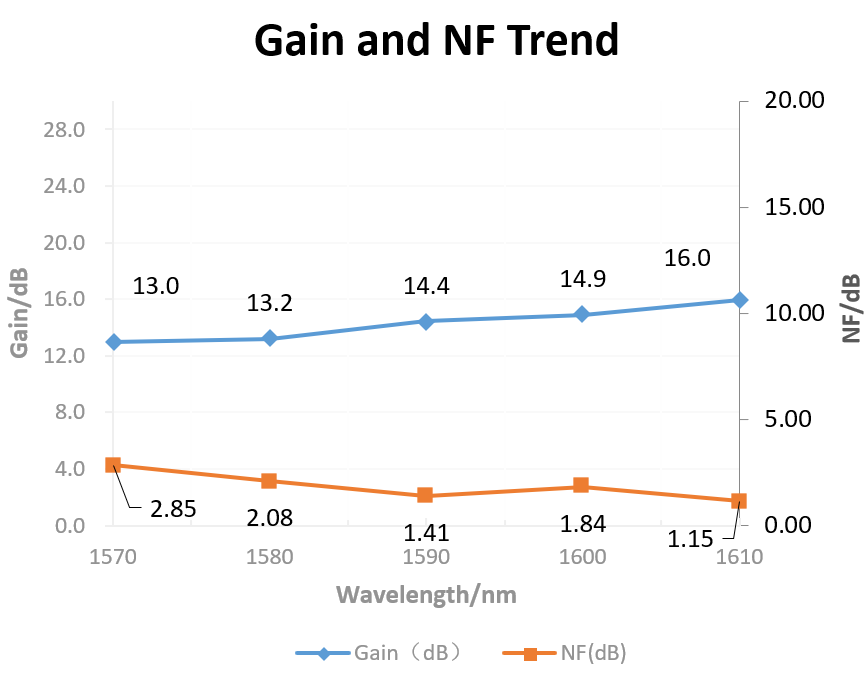

Gain and NF Curves

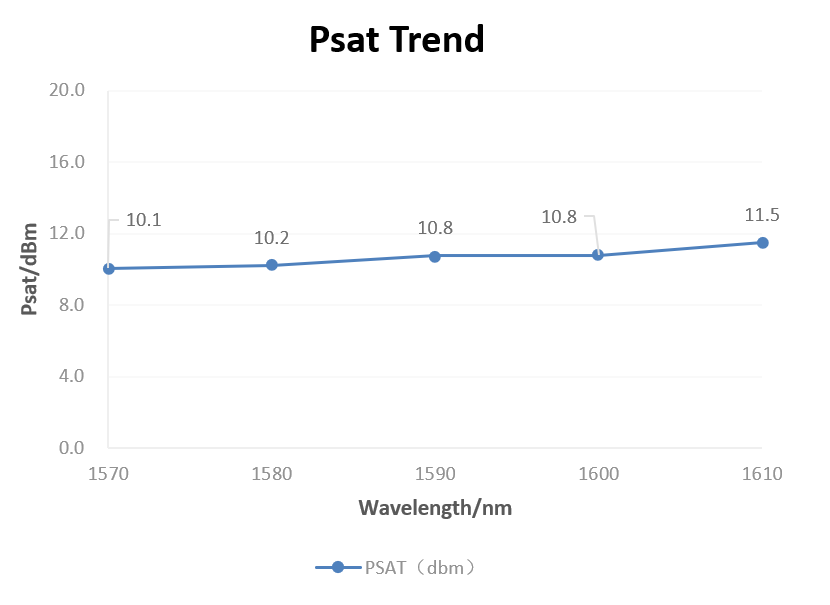

Saturated output power curve
Ordering Information
OS-SOA-☆-A8▽-W□□□□-XX
☆ : Output Power
A: 5dbm
B: 10dbm
▽:Bandwidth
1: 60-70nm
2: 30-40nm
□□□□:Wavelength
680: 680nm
850: 850nm
*****
1550: 1550nm
1600: 1600nm
XX: Fiber and Connector Type
SASA=(SMF-28E+ FC/APC)+(SMF-28E+ FC/APC)
SPSP=(SMF-28E+ FC/PC)+(SMF-28E+ FC/PC)
PAPA=(PM Fiber+ FC/APC)+(PM Fiber+ FC/APC)
PPPP=(PM Fiber+ FC/PC)+(PM Fiber+ FC/PC)
