    • L-band SOA nonlinear semiconductor optical amplifier 1610nm 13dBm

    The L-band SOA nonlinear semiconductor optical amplifier is a polarization-insensitive optical amplifier, featuring advanced epitaxial wafer growth and optoelectronic packaging technology. It provides high output saturation power, low noise figure, and large gain over a wide spectral bandwidth.

    Product features：Wideband light、 High output power、 Low polarization sensitivity、 Multiple quantum wells or bulk structure

    Part Number：--

    Application area：Pump light amplifier、 Telecommunications and data communication、 Loss compensation

    Add to Cart Consult Favorite

    Related Products

    Main parameters
  • Core parameters

  • Dimension Drawing
    • General Parameters

    Electrical/Optical Characteristics (Tsub = 25°C, CW)

    Parameter

    Symbol

    PL-SOA-A-A81-W1610-PAPA



    Min.

    Typ.

    Max.

    Operating Current

    IOP

    -

    120 mA

    150 mA

    Forward Voltage

    VF

    -

    1.2V

    2.0V

    Center Wavelength

    λC

    1600nm

    1610nm

    1620nm

    Signal Gain (@ Pin = -20 dBm)

    G

    15dB

    -

    -

    3dB Bandwidth

    BW

    40nm

    -

    -

    ASE Ripple (RMS)

    δG

    -

    -

    0.5dB

    Saturated Output Power (@ -3 dB)

    PSAT

    7dBm

    -

    -

    Polarization Dependent Gain

    PDG

    -

    -

    1.5dB

    Noise Figure

    NF

    -

    -

    7dB

    Thermal Resistance (@ 25℃)

    RTH

    9.5KΩ

    10KΩ

    10.5KΩ

    TEC Voltage

    VTEC



    2.3V

    TEC Current

    ITEC



    0.9A



    Maximum value parameters

    Parameter

    Symbol

    PL-SOA-A-A81-W1610-PAPA



    Min.

    Typ.

    Maximum Operating Current (CW)

    IOP max


    200mA

    Reverse Voltage (VR)

    VR


    2V

    Chip Operating Temperature (CW)

    TSOA

    25℃

    30℃

    Case Temperature (CW)

    TC

    0℃

    70℃

    TEC Voltage

    VTEC

    -

    4.0V

    TEC Current

    ITEC

    -

    1.8A

    Storage Temperature

    TSTG

    -40℃

    85℃

    Storage Humidity


    5%RH

    85%RH

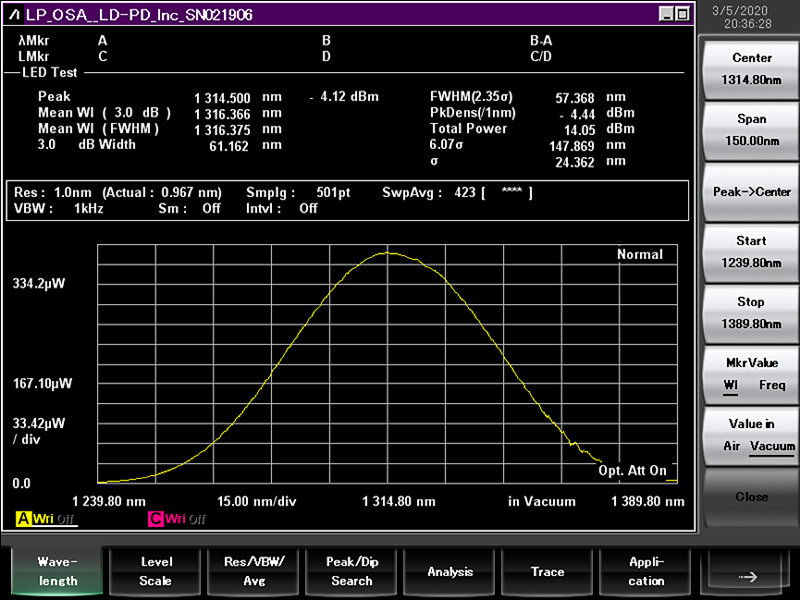

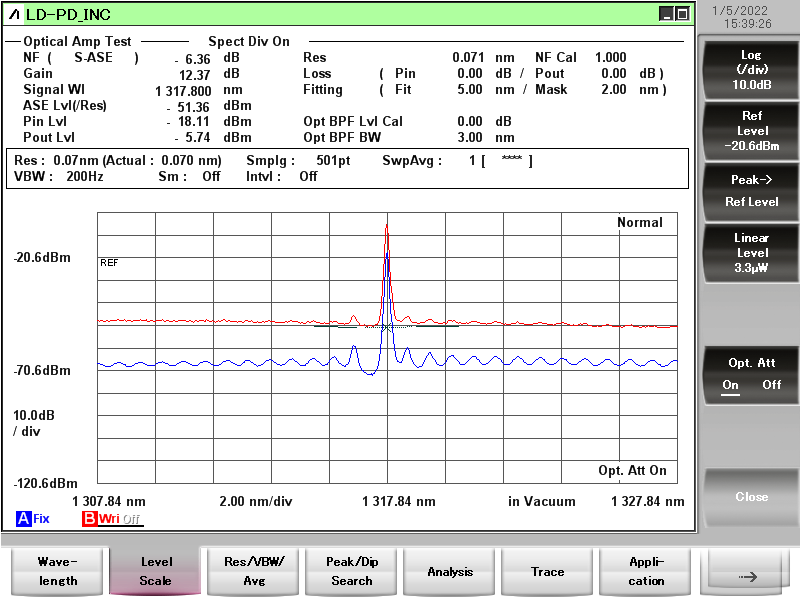

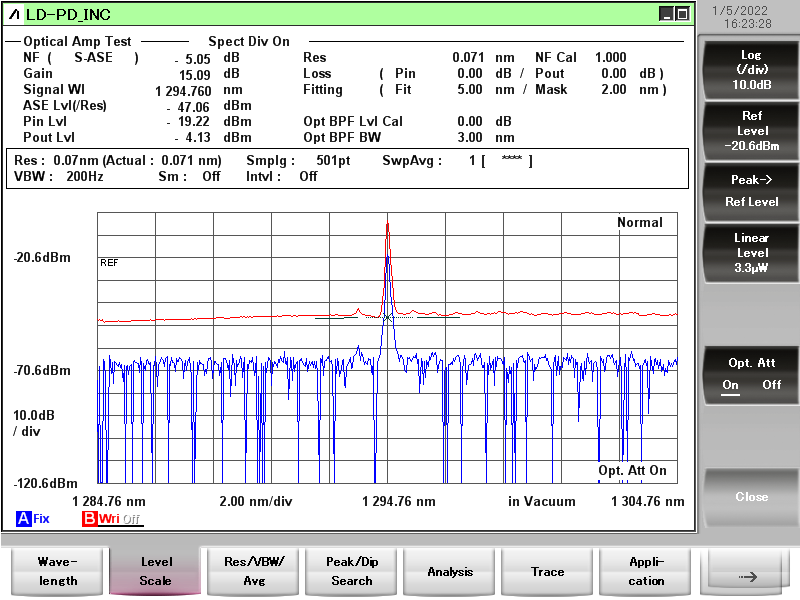

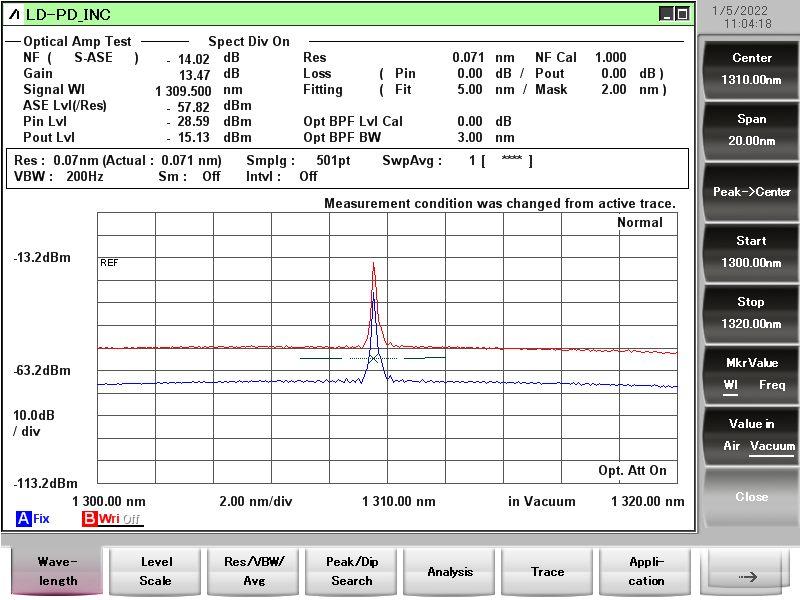

    ASE Spectrum






    SOA amplifier spectrum (Pin=0dBm, I=200mA)


     1278 nm (Pin = 0 dBm, I = 200mA)




     1294 nm (Pin = 0 dBm, I = 200mA)






     1310 nm (Pin = 0 dBm, I = 200mA)



    1317 nm (Pin = 0 dBm, I = 200mA)

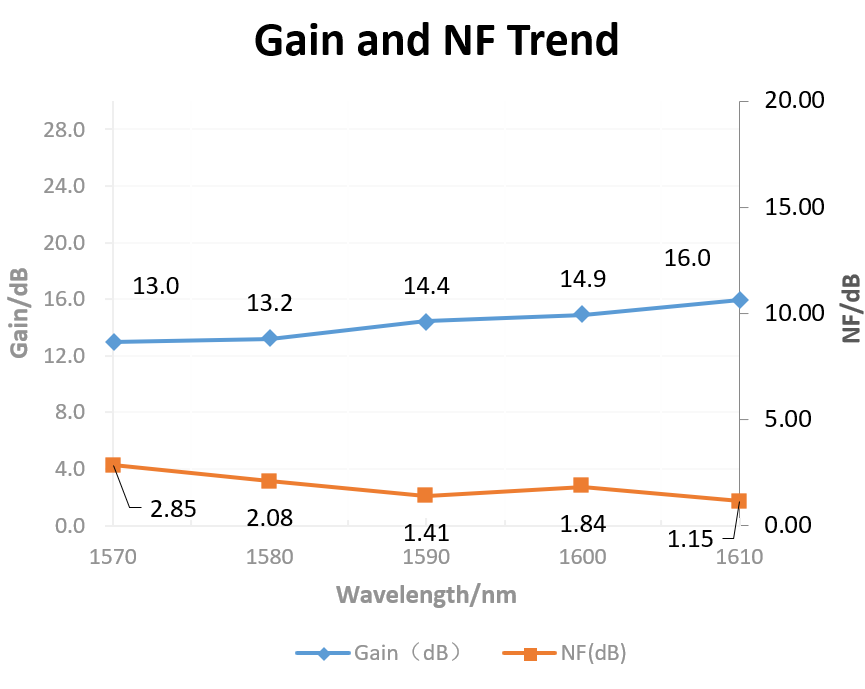

    Gain and NF trend

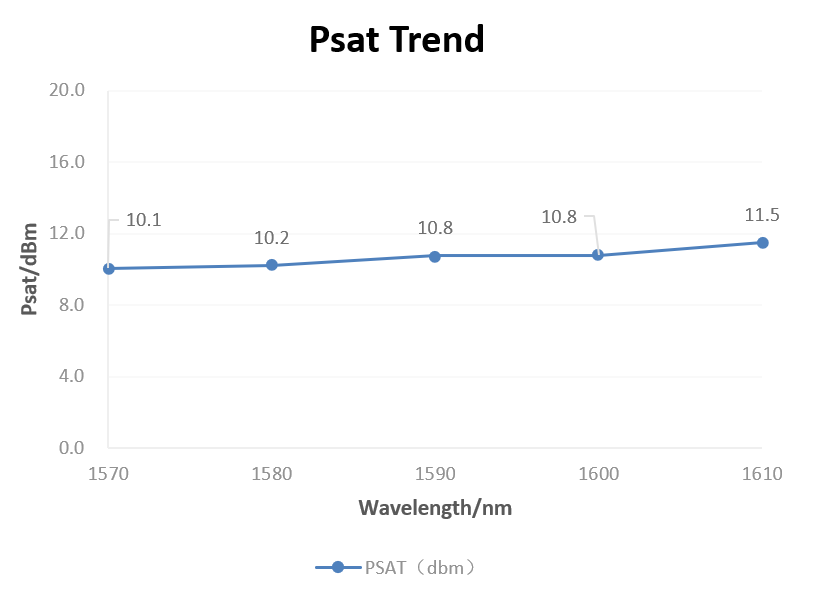

    Saturated output power curve

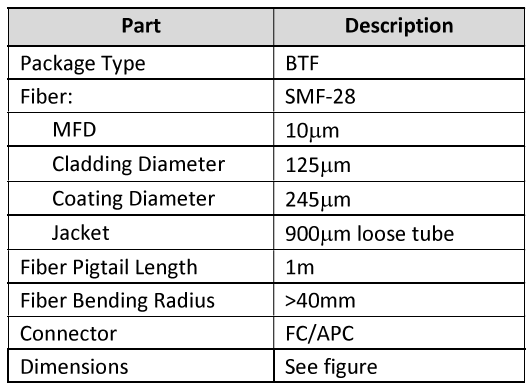

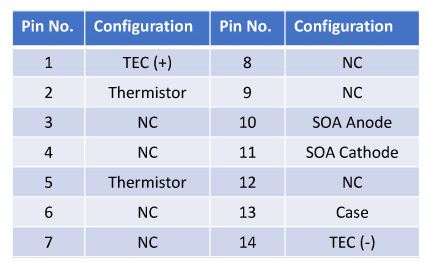

    Dimensions and Pin Definition







    Ordering info

    PL-SOA-☆-A8▽-W□□□□-XX

    ☆ ：Output Power

    A: 13dbm B: 20dbm

    ▽: Bandwidth

    1: 60-70nm

    2: 30-40nm

    □□□□：Wavelength

    680: 680nm 850: 850nm

    *****

    1550: 1550nm 1650: 1650nm

    XX: Fiber and Connector Type

    SASA=(SMF-28E+ FC/APC)+(SMF-28E+ FC/APC)

    SPSP=(SMF-28E+ FC/PC)+(SMF-28E+ FC/PC)

    PAPA=(PM Fiber+ FC/APC)+(PM Fiber+ FC/APC)

    PPPP=(PM Fiber+ FC/PC)+(PM Fiber+ FC/PC)

    PAPA=(PM Fiber+ FC/APC)+(PM Fiber+ FC/APC)

    Optional Configurations

    --
