    • Thermal Diffusion Expansion Fiber Core Custom Processing, Core Diameter 20um

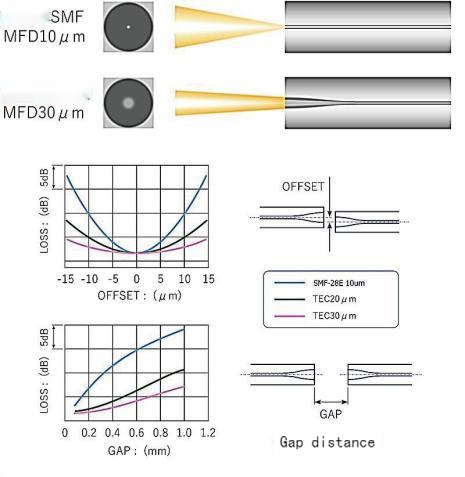

    NIR-TEC-30-9-SA TEC (Thermally-diffused Expanded Core Fiber) fiber technology, with the mode field diameter at the end of the thermally-expanded fiber core. This can be used in commercial SI-SMF (Single-Mode Fiber). The mode field diameter increases by one or three times at the fiber end, altering the refractive index distribution and reducing the numerical aperture. The larger the axial and gap displacement tolerances, the smaller the coupling loss. Small variations in cladding diameter can be compensated by inserting a metal sleeve and installing a connector (as shown in the figure below).

    产品特点High optical surface quality、 High control precision、 Low insertion loss

    产品货号H80020029

    应用领域Silicon photonics integration technology、 Optical waveguide coupling、 Optical equipment manufacturing、 Testing tools

    产品单价联系客服询价

    到货日期请咨询客服获得货期

    产品库存请咨询客服

    Sherry

    电话：16628709332

    邮箱：moli@microphotons.com

    加入询价单 在线咨询

    收藏

    相关产品

    主要参数
  • 核心参数

  • 尺寸图

    • Product structure












    Ordering info

    NIR-TEC- ☆ - △ -XX
    ☆: Thermally Diffused Expanded Core Fiber
    30: 30um
    20: 20um
    △: Loose Tube
    B: Bare Fiber
    9: 900um Loose Tube
    20: 2mm Loose Tube
    30: 2mm Loose Tube
    XX: Fiber and Connector Type
    SA=SMF-28E+ FC/APC
    SP=SMF-28E+ FC/PC
    PA=PMFiber+ FC/APC
    PP=PMFiber+ FC/PC
