• 905nm 20mW Coaxial Single-Mode Fiber-Coupled Laser

    The LP-905SM-FA-C series coaxial single-mode fiber-coupled laser is a cost-effective single-mode fiber-coupled laser launched by Idealphotonics. It features a compact package size and high output power. Our products are widely used in laser communication, printing, and medical laser fields.

    产品特点Single-mode fiber 、Coaxial packaging 、Built-in photodetector 、Wavelength 905nm

    产品货号A80021014

    应用领域Medical field 、Printing 、Fiber lasers

    产品单价联系客服询价

    到货日期请咨询客服获得货期

    产品库存请咨询客服

    Daisy

    电话:18602170419

    邮箱:moli@microphotons.com

    主要参数
  • 核心参数
  • 尺寸图
  • Parameters




    Parameters

    Value

    Center Wavelength (nm)

    905±5nm

    Continuous Output Power (mW)

    >20mw

    Spectral Width

    0.5-2nm

    Fiber Core

    6um

    Numerical Aperture NA

    0.12

    Fiber Length

    0.8m

    Connector

    FC/APC

    Operating Voltage

    1.8-2.3V

    Threshold Current

    35mA

    Maximum Operating Current

    165mA

    Package Type

    Coaxial Package

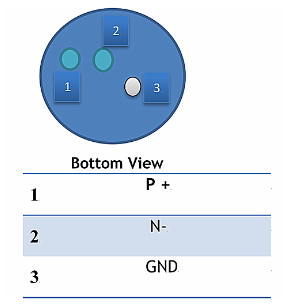

    Pin definition


    Parameters

    symbol

    Unit

    Min

    Typ

    Max

    Test condition

    Shell temperature

    TOP

    -5

    25

    70


    Forward working voltage

    VR

    V

    1.8

    2

    2.3


    Axial tension


    N

    -

    -

    5N

    3x10s

    Lateral tension


    N

    -

    -

    2.5N

    3x10s

    Fiber bending radius



    16mm



    -

    Reverse working voltage (LD)

    VLD

    V

    -

    -

    2

    HBM

    Welding time


    S


    -

    10s

    260℃

    Store temperature

    TSTG

    -40

    -

    +85

    2000hr

    Operating temperature

    TOP

    -55

    -

    +125


    Relative humidity

    RH


    5%

    -

    95%

    Noncondensing

    Precautions:

    1. Avoid direct exposure of the laser to the eyes and skin when the laser is working. Even if a very weak laser enters the eyes, it may cause serious damage after the convergence of the eyes.

    2. The laser requires a stable driving power supply to avoid surges. The instantaneous reverse current and reverse voltage cannot exceed the limit value, otherwise the components will be damaged.

    3. Semiconductor lasers are sensitive to temperature. Working at high temperatures will reduce the conversion efficiency and accelerate the aging of components. They need to be used under sufficient heat dissipation or cooling conditions.

    4. The laser should be used at rated current and rated power. Excessive output power will accelerate the aging of components.

    5. The laser is an electrostatically sensitive device. Anti-static measures must be taken during transportation, storage and use.

    6. The laser should be stored or operated in a dry and ventilated environment to prevent condensation from damaging the laser.

    7. The light-emitting surface (cavity surface) is one of the key parts of the laser. Avoid any operation to damage the cavity surface. During the use of the device, ensure that the die is not contaminated and prevent mechanical damage.

    8. The optical fiber cannot be bent at a large angle, and the bending diameter must be greater than 300 times the optical fiber diameter.
