850nm 30mW Coaxial Packaged Polarization Maintaining Fiber Coupled Laser

850nm 30mW Coaxial Packaged Polarization Maintaining Fiber Coupled Laser

Coaxial fiber-coupled laser is a low-cost fiber-coupled laser launched by Idealphotonics. It has the advantages of small package size and high output power. Our products are widely used in laser communication, printing and laser medical fields.

Product features：Working wavelength 850nm Polarization-maintaining fiber、 High reliability, high polarization extinction ratio、 Built-in detector

Part Number：--

Application area：Medical field、 Printing and printing、 Fiber laser

Add to Cart Consult Favorite

Related Products

905nm 20mW Coaxial Single-Mode Fiber-Coupled Laser

Main parameters
General Parameters
Optional Configurations
Downloads

Main parameters

Core parameters

Dimension Drawing

General Parameters

Parameters

parameter	Min.	Typical	Max.
Central wavelength@25℃	840nm	850nm	860nm
Output power		30mW
Fiber type	PM fiber
Spectral width	0.5-2nm
Fiber core	5um
Polarization extinction ratio	13dB	15dB	-
Monitor current	-	0.3mA	-
Fiber connector	FC/APC
Fiber length	-	80cm	100cm
Threshold current(typical)	-	45mA	100mA
Operating current(typical)	-	200mA	220mA
Operating voltage	-	2.4V	2.8V
Backward voltage Vr	2.0V
Operating temperature	-10-+60℃
Storage temperature	-40-+85℃
Package	Coaxial or B82

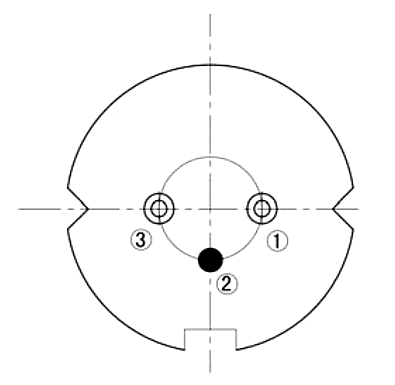

PIN bottom view and pin definition

1	LD(-)
2	LD(+)＆PD(-)
3	PD(+)

Ordering information

Name：850nm 30mW Coaxial packaged PM fiber coupled laser diode

PN#：LP-850PM-FA-C

Operating wavelength：850nm

Fiber type：PM fiber

connector：FC/APC

output power:30mW
