    • Microstructured Multi-core Sensing Fiber (Hydrogen Corrosion Resistant, Pure Quartz, Mode Field Diameter @ 1550nm: 3μm

    Compared to conventional step-index optical fibers, specially designed microstructured optical fibers offer ultra-low loss, improved optical modes, hydrogen corrosion resistance, and a single-material composition (pure silica, without doping). These superior characteristics significantly enhance the sensitivity of distributed optical fiber sensing systems, system stability, spatial measurement accuracy, and fiber lifespan. The fiber structure and parameters can be customized for production.

    产品特点High-temperature resistance、 Durability, high bending strength, and sealing performance、 Enables the welding of embedded optical fibers, fiber bundles, and pigtails into high-vacuum environments

    产品货号C80010137

    应用领域High-temperature environments、 Harsh chemical environments、 Nuclear radiation environments、 High-power laser transmission、 Medical applications、 Optical fiber bundle welding

    产品单价联系客服询价

    到货日期请咨询客服获得货期

    产品库存请咨询客服

    Sherry

    电话：16628709332

    邮箱：moli@microphotons.com

    加入询价单 在线咨询

    收藏

    相关产品

    主要参数
  • 核心参数

  • 尺寸图

    • Specs

    Optical Performance:

    Parameter

    Attribute

    Fiber core material

    High purity silica

    Mode field diameter

    @1310 nm 2.8 ± 0.5 µm

    @1550 nm 3 ± 0.5 µm

    Attenuation coefficient

    @1310 nm 1 - 2 dB/km

    @1550 nm 1 - 2 dB/km




    Geometrical parameter

    Delivery length

    1 - 30 km

    Cladding diameter

    150 ± 1 µm

    Coating layer diameter

    180 ± 5 µm

    Concentricity of core cladding layer

    ≤3 µm

    Cladding non-circularity

    ≤0.5

    Coating material

    poly

    Long term use temperature

    -55 - 300 ℃

    Short term temperature tolerance

    400 ℃

    Filter intensity

    100 kpsi

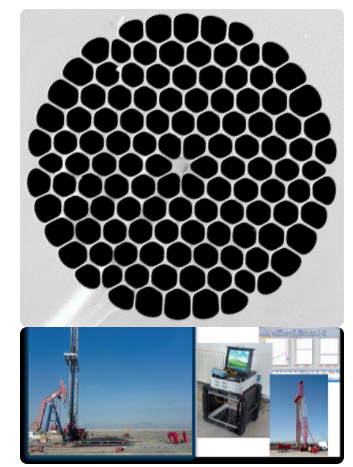

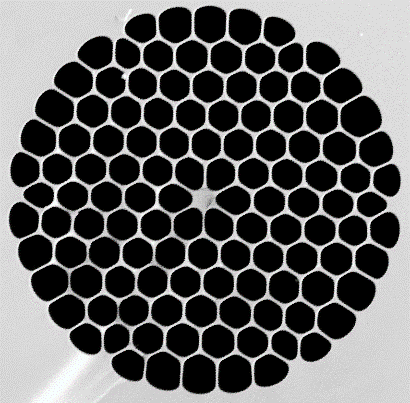

    Structure






    Manufacturing Platform






    Ordering info

    PN#MC1550 Optical Fiber - Microstructured Multi-Core Sensing Optical Fiber
