780nm Full Band Free Space Acousto-Optic Modulator 150MHz

The Idealphotonics’ acousto-optic modulator allows users to adjust the output light's amplitude, duration, and frequency/period. The insertion loss can be as low as 2 dB, the extinction ratio can be as high as 50 dB, the rise time can be as fast as 5 nanoseconds, and the frequency can reach up to several hundred MHz. Applications include switching, pulse picking, fast attenuation, and more. The wavelength range extends from near ultraviolet to near infrared.

产品特点0th-order and 1st-order optical fiber output、 High extinction ratio、 Customizable devices according to the customer's wavelength and frequency requirements

产品货号D80020042

应用领域BODTR、 DVS、 Optical Switch

产品单价联系客服询价

到货日期请咨询客服获得货期

产品库存请咨询客服

Moli

电话：13061644116

邮箱：moli@microphotons.com

加入询价单在线咨询

相关产品

主要参数
可选配置表
资料下载

主要参数

核心参数

尺寸图

Main Parameters

PN#	Wavelength（nm）	frequency（Mhz）	Aperture (mm）	Diffraction Efficiency (%）	Optical Power Density (W/mm²)	Drive Power (W)	Input Impedance (Ω)	Voltage Standing Wave Ratio (VSWR)
A-532-80-L-T-D1-T-A-K	532	80	1	85	250	0.8	50	<1.3:1
A-532-80-L-T-D2-T-A-K	532	80	2	85	250	1.5	50	<1.3:1
A-532-100-L-T-D1-T-A-K	532	100	1	85	250	0.8	50	<1.3:1
A-532-200-L-T-D0.3-T-A-K	532	200	0.3	70	250	2	50	<1.5：1
A-532-200-L-T-D4-T-A-K	532	200	4	80	250	4	50	<1.5：1
A-632-80-L-T-D1-T-A-K	632	80	1	85	250	0.8	50	<1.3:1
A-632-100-L-T-D1-T-A-K	632	100	1	85	250	0.8	50	<1.3:1
A-632-200-L-T-D0.3-T-A-K	632	200	0.3	70	250	2.5	50	<1.5：1
A-632-200-L-T-D1-T-A-K	632	200	1	85	250	1.5	50	<1.5：1
A-780-110-L-T-D1-T-A-K	780	110	1	85	250	1.3	50	<1.3:1
A-780-150-L-T-D1-T-A-K	780	150	1	75	250	2	50	<1.3:1
A-780-150-L-T-D2-T-A-K	780	150	2	75	250	2.5	50	<1.5：1
A-780-200-L-T-D0.3-T-A-K	780	200	0.3	70	250	3	50	<1.5：1
A-780-200-L-T-D2-T-A-K	780	200	2	70	250	3.5	50	<1.5：1
A-850-110-L-T-D0.7-T-A-K	850	110	0.7	80	250	1	50	1.2：1
A-850-200-L-T-D0.3-T-A-K	850	200	0.3	80	250	3	50	<1.5：1
A-1064-100-L-T-D0.7-T-A-K	1064	100	0.7	85	250	1.8	50	1.2：1
A-1064-120-L-T-D0.7-T-A-K	1064	120	0.7	85	250	1.8	50	<1.3:1
A-1064-150-L-T-D0.5-T-A-K	1064	150	0.5	85	250	2.5	50	<1.3:1
A-1064-200-L-T-D0.3-T-A-K	1064	200	0.3	70	250	2.5	50	<1.3:1
A-1550-40-L-T-D0.7-T-A-K	1550	40	0.7	80	250	2.5	50	<1.3:1
A-1550-60-L-T-D0.5-T-A-K	1550	60	0.5	80	250	2.5	50	<1.3:1
A-1550-80-L-T-D0.7-T-A-K	1550	80	0.7	80	250	2.5	50	<1.3:1
A-1550-150-L-T-D0.5-T-A-K	1550	150	0.5	65	250	2.5	50	<1.5：1
A-1550-200-L-T-D0.3-T-A-K	1550	200	0.3	55	250	3	50	<1.5：1

We can offer customized services to customers: Wavelength range from 500-2000nm with any band selectable. Frequency range from 40-300MHz with any frequency selectable, and frequency accuracy can be customized. Aperture size from 0.1-4mm can be customized. The enclosure size can be tailored to fit the customer's system requirements, including the material of the enclosure. We can optimize the device according to the customer's specific performance requirements

Dimensions：

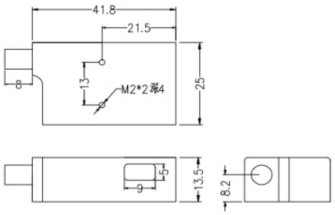

AOM Modulator

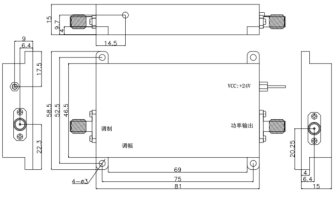

RF Driver
