    • 1550nm Single-Mode Acousto-Optic Modulator

    Idealphotonics' acousto-optic modulators are widely used in the field of fiber optic sensing due to their high modulation extinction ratio, high power handling capacity, and other advantages. This product is specifically designed for the application needs of fiber optic sensing, offering benefits such as compact size, low power consumption (<1W), fast rise time (12ns), good modulation pulse shape (small overshoot), and excellent pulse repetition stability (minimal jitter in repetition period). Moreover, the modulator and driver can be integrated into a single package for easier system integration, making it ideal for use in various fiber optic sensing systems that require pulse modulation, such as φ-OTDR, BOTDR, OFDR, and others.

    产品特点Compact size、 Low power consumption（＜500mW）、 Fast rise time（12ns）、 Good modulation pulse shape (small overshoot)

    产品货号E80070008

    应用领域Fiber Optic Sensing、 LiDAR、 BOTDA

    产品单价联系客服询价

    到货日期请咨询客服获得货期

    产品库存请咨询客服

    Moli

    电话：13061644116

    邮箱：moli@microphotons.com

    加入询价单 在线咨询

    收藏

    相关产品

    主要参数
  • 核心参数

  • 尺寸图

    • Parameters

    Parameter

    Unit

    PN#



    AOM100-1550-1(X)

    AOM150-1550-1(X)

    AOM200-1550-1(X)

    Material

    -

    TeO2

    Wavelength

    nm

    1550

    Maximum Laser Power

    W

    ≤0.5

    Maximum Pulse Laser Peak Power

    KW

    ≤1（5KW Custom）

    Insertion Loss

    dB

    ≤3

    ≤4

    ≤5

    Extinction Ratio

    dB

    ≥50

    Polarization Extinction Ratio (for polarization-maintaining devices)

    dB

    ≥20

    Voltage Standing Wave Ratio

    1

    ≤1.2:1

    Optical Pulse Rise Time

    ns

    40

    20

    12

    Operating Frequency

    MHz

    100

    150

    200

    Fiber Type

    -

    SM or PM

    Fiber Connector

    -

    FC/APC

    Structure

    -

    Figure A

    Driver


    D100-02-M-1D

    D150-02-M-1D

    D200-02-M-1D





    Driver

    Parameter

    Unit

    PN#



    D100-02-M-1D

    D150-02-M-1D

    D200-02-M-1D

    Operating Frequency

    MHz

    100

    150

    200

    Drive Power

    W

    ≤2.5

    ≤3

    ≤3

    Electrical Pulse Rise Time

    ns

    ≤20

    ≤15

    ≤7.5

    Power Switching Ratio

    dB

    ≥55

    Power Supply Voltage (DC)

    V

    24

    Harmonic Suppression

    dBc

    ≥25

    Modulation Method

    -

    TTL

    Output Impedance

    Ω

    50

    Shape Structure

    -

    Figure B

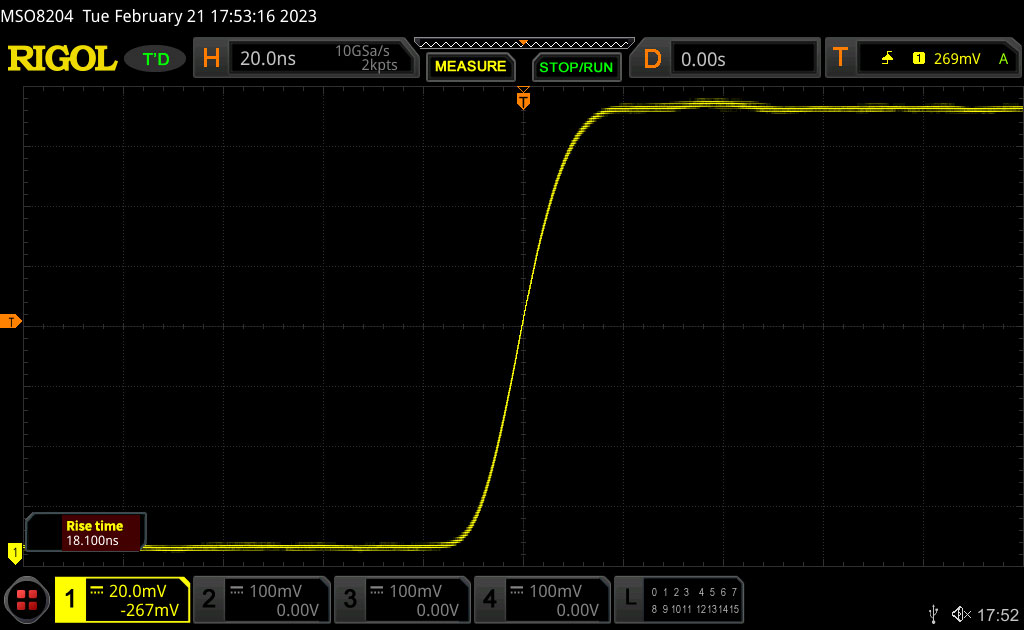

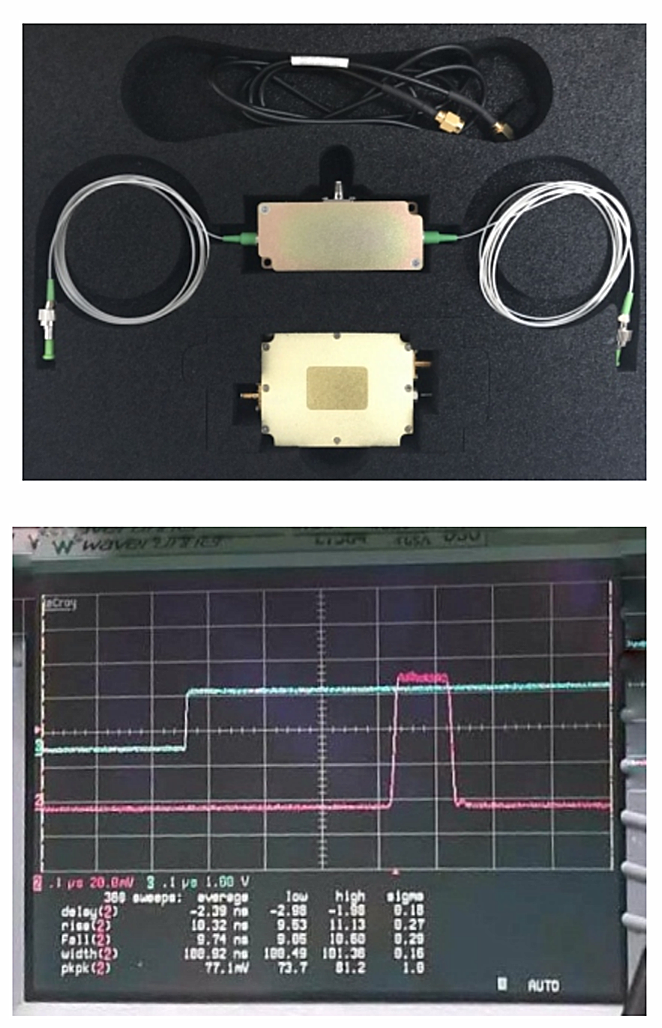

    Optical pulse rise time test





    General parameters

    Modulation curve
