    • 1550nm polarization-preserving acousto-optic modulator 40MHz

    Acousto-optic modulators are widely used in the field of fiber optic sensing due to their advantages such as high modulation extinction ratio and high power handling. This product is specially developed for the application requirements of fiber optic sensing, and has the advantages of small size, low power consumption (<1W), fast rise time (12ns), good modulation pulse shape (small overshoot), good pulse repeatability (small repetition cycle jitter), etc. In addition, the modulator and driver can be packaged in an integrated manner, which is convenient for system integration. It can be widely used in various fiber optic sensing systems that require pulse modulation, such as φ-OTDR, BOTDR, OFDR, etc.

    产品特点Small size 、 Low power consumption (<500mW) 、 Fast rise time (12ns) 、 Good modulation pulse shape (small overshoot) 、 Good pulse repeatability (small jitter in repetition period)

    产品货号D80020056

    应用领域Fiber optic sensing 、 LiDAR 、 BOTDA

    产品单价联系客服询价

    到货日期请咨询客服获得货期

    产品库存请咨询客服

    Moli

    电话：13061644116

    邮箱：moli@microphotons.com

    加入询价单 在线咨询

    收藏

    相关产品

    主要参数
  • 核心参数

  • 尺寸图

    • Parameters

    Unit

    Min

    Max

    Typ

    Note

    Material




    TeO2


    Wavelength

    nm

    1520

    1580

    1550


    Average optical power (CW)

    W



    0.5


    Ultrasonic sound velocity

    m/s



    4200


    Insertion loss

    dB



    2.5


    Polarization extinction ratio

    dB

    18

    23

    20


    Extinction ratio

    dB

    50

    55

    50


    Return loss

    dB

    40




    Rise time

    ns



    60


    Frequency

    MHz



    40


    Frequency shift

    MHz



    +/-40

    Can be specified

    Frequency stability




    0.1%


    RF power

    W



    2.5


    VSWR




    1.2:1


    Input impedance

    Ω



    50


    Device interface




    SMA


    Fiber type

    PM1550





    Fiber length

    m



    1.2


    Fiber interface




    FC/APC


    Operating temperature

    ℃



    -20~60


    Storage temperature

    ℃



    -30~70

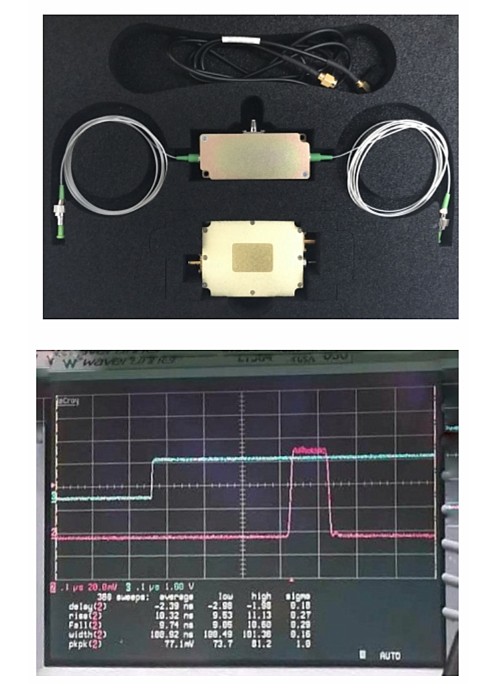

    Test Diagram


    RIO's narrow linewidth lasers, 1550nm PM acousto-optic modulators, and EOT 2.5G optoelectronic instruments


    Modulation curve

    The modulation signal applied to the AOM from the signal generator:


    The oscilloscope displays the voltage signal output from the detector:





    A: AOM Dimensions





     B: Driver Dimensions
