    • 7.2μm Low-Power Benchtop DFB-QCL Mid-Infrared Quantum Cascade Laser (TDLAS Integrated Control Module)

    The QCL7200 – 7.2μm Low-Power Benchtop DFB-QCL Mid-Infrared Quantum Cascade Laser is the first ultra-low-power QCL DFB laser developed by IdealPhotonics in the first half of 2018. With a tunable range exceeding 100nm and an output power greater than 40mW, it meets the industrial demands for gas sensing and testing applications. Our laser provides collimated output with stable power and exceptional temperature-wavelength stability, surpassing traditional high-power quantum cascade lasers by several orders of magnitude. This makes it an optimal testing light source for customers in mid-infrared applications.

    Product features：Low power consumption, high output power、 Narrow linewidth、 Compact structure、 Intelligent software control、 Built-in FPGA

    Part Number：--

    Application area：TDLAS N₂O high-precision trace analysis、 Mid-infrared test light source、 Mid-infrared device analysis

    Add to Cart Consult Favorite

    Related Products

    Main parameters
  • Core parameters

  • Center wavelength Spectral width Output power Laser type

  • Dimension Drawing
    • General Parameters



    2F signal acquisition interface:




    Algorithm calibration interface:




    Modulation signal linearity test (oscilloscope voltage signal effect diagram):





     Parameters

    Parameters

    Unit

    Specs



    Min.

    Typ.

    Max.

    PN#


    QCL7200

    Output Power 1

    mW

    60

    -

    70

    Peak Operating Wavelength 2

    um

    7.1

    7.2

    7.3

    Spectral Width (FWHM)

    MHZ

    -

    3

    -

    Output Side Mode Suppression Ratio (SMSR)

    dB

    20

    -

    -

    Output Isolation 3

    dB

    -

    30

    -

    Wavelength Temperature Coefficient

    nm/℃

    -

    0.6

    -

    Wavelength Current Coefficient

    nm/mA

    -

    0.2

    -

    Output Power Stability (15 minutes) 4

    %

    -

    ±0.5

    ±1.0

    Output Power Stability (8 hours) 4

    %

    -

    ± 1.0

    ± 2.0

    Output Power Adjustable Range

    %

    0

    -

    100

    Output Power Adjustment Mode


    Software Control

    TEC Stability

    ℃

    -

    ±0.1

    ±0.2

    TEC Operating Range

    ℃

    0

    30

    50

    Operating Voltage

    VAC

    100

    220

    240

    Electrical Power Consumption 5

    W

    -

    -

    2

    Operating Temperature

    ℃

    0

    -

    55

    Storage Temperature

    ℃

    -20

    -

    65

    Dimensions

    mm

    290(L)×108(W)× 68(H) benctop

    Notes:

    1.Output power can be customized based on requirements.

    2.Peak operating wavelength can be specified by the user.

    3.Output isolation refers to the isolation level (e.g., against ASE light).

    4. Power stability measured under specified conditions (e.g., 25°C after warm-up).

    5.Power consumption refers to the total electrical power under operating conditions.







    QCL Laser Characteristic Curves (Taking 7.2μm Typical Wavelength as an Example)








    Laser Spectrum (Continuous): Laser operating at 10℃








    Beam Spot Analysis

    The pixel size of the test camera is 5 μm, and the diameter of the Gaussian fitting spot is 320 μm.







    Control Software

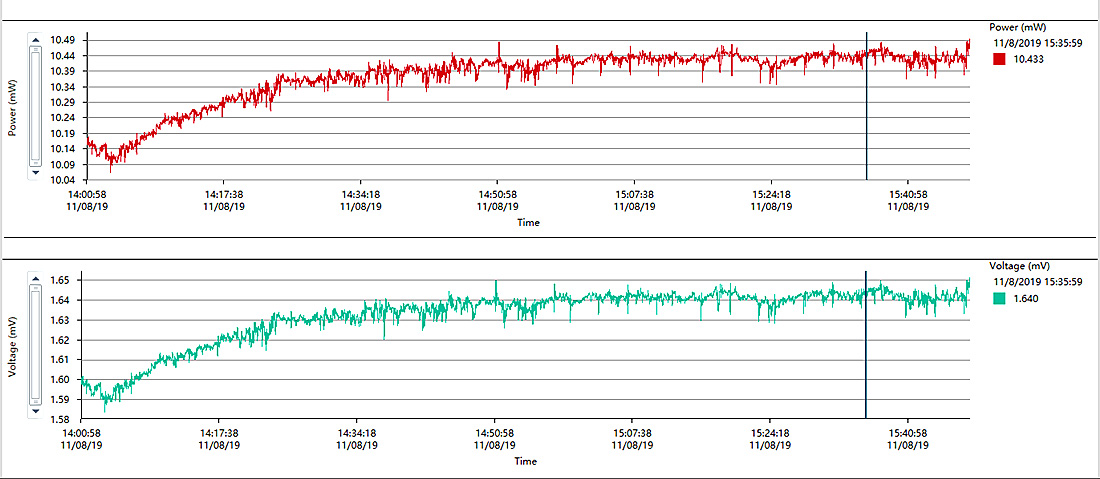

    QCL laser power stability test curve




    Ordering info

    Model: MIR-QCL-W□-☆-△-XX

    W□□□□ (Wavelength):

    5260: 5260nm

    7200: 7200nm

    7400: 7400nm

    10530: 10530nm

    ☆ (Collimated Output):

    1: With collimation

    0: Without collimation

    △ (Laser Type):

    FP: QCL-FP

    DFB: QCL-DFB

    XX (Output Power):

    001 = 1mW

    010 = 10mW

    100 = 100mW

    1000 = 1000mW




    Optional Configurations

    --

    Downloads

    No resources available

    • 10+ 10 Years of Experience
    • 50 50 + Countries Bussiness
    • 10000 10k + Diodes sold worldwide
    • 30 30+ Invention patent
    • 10 10+ Advanced Optical Solutions

    ⇪
