    • 7.4um low power benchtop DFB-QCL mid-infrared quantum cascade laser 5mW (TDLAS integrated control module)

    QCL7400 - 7.4um low-power benchtop DFB-QCL mid-infrared quantum cascade laser is a domestically advanced ultra-low-power QCL DFB laser developed by Idealphotonics in the first half of 2018. The tunable range exceeds 100nm, and the output power is greater than 20mw to meet the industrial needs of customers testing gas sensors. Our laser collimated output has stable output power and high temperature and wavelength stability, which is several orders of magnitude higher than the stability of traditional high-power quantum cascade lasers. It provides an excellent test light source for our mid-infrared test customers.

    Product features：Low power consumption, high power、 High side mode suppression ratio、 Intelligent software control、 Small structure

    Part Number：--

    Application area：TDLAS CO high-precision trace analysis、 Mid-infrared test light source

    Add to Cart Consult Favorite

    Related Products

    Main parameters
  • Core parameters

  • Peak wavelength Spectral width Output power Laser type

  • Dimension Drawing
    • General Parameters

    Parameter

    Parameter

    Unit

    Indicators



    Min.

    Typical value

    Max.

    PN#


    7.4umDFB-QCL

    Output power 1

    mW


    5


    Peak operating wavelength 2

    um


    7.4


    Spectral width (FWHM)

    MHZ


    1


    Output side mode suppression ratio (SMSR)

    dB

    20



    Output isolation 3



    30


    Wavelength temperature coefficient

    Mrad


    0.6


    Wavelength current coefficient

    mm


    0.2


    Output power stability (8 hours) 4

    nm/A


    ±1

    ±4

    Output power adjustable range

    %

    0


    100

    TEC operating range

    ℃

    0


    50

    Operating voltage

    VAC

    100

    220

    240

    Operating temperature

    ℃

    0

    -

    55

    Storage temperature

    ℃

    -20

    -

    65

    Specifications and dimensions

    mm

    290(L)×108(W)×68(H) mm

    Technical Specifications

    1. Output power is optional;

    2. Peak operating wavelength can be specified;

    3. Output power stability test condition is 25 degrees, after 30 minutes of preheating;

    4. Maximum power consumption refers to the overall power consumption under extreme working conditions;

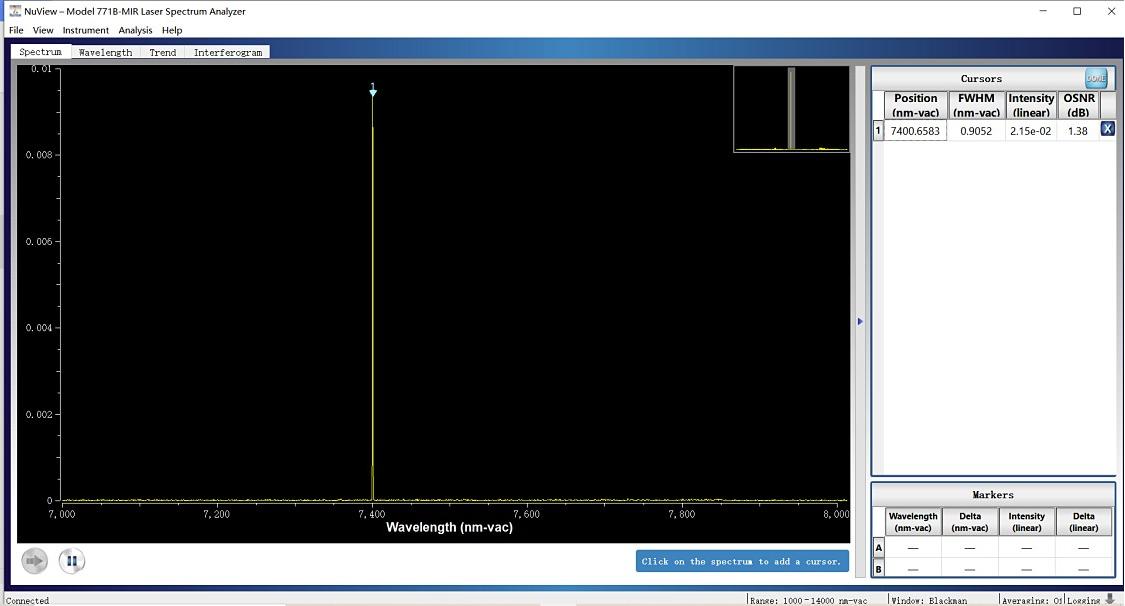

    Measured spectrum




    Wavelength temperature tuning curve

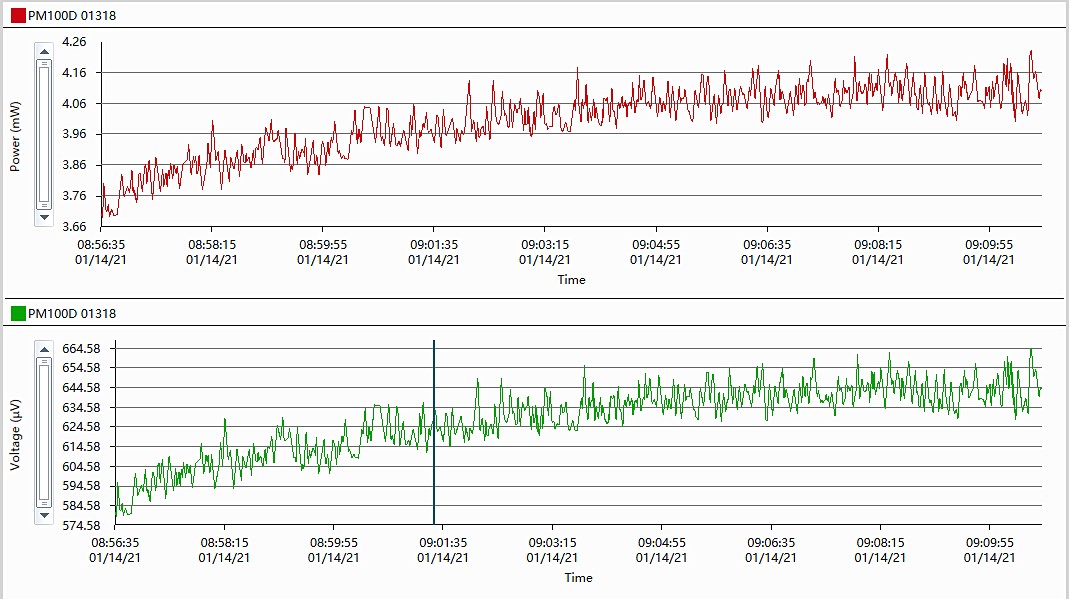

    Power stability




    QCL laser characteristic curve (taking 7.4um typical wavelength as an example)

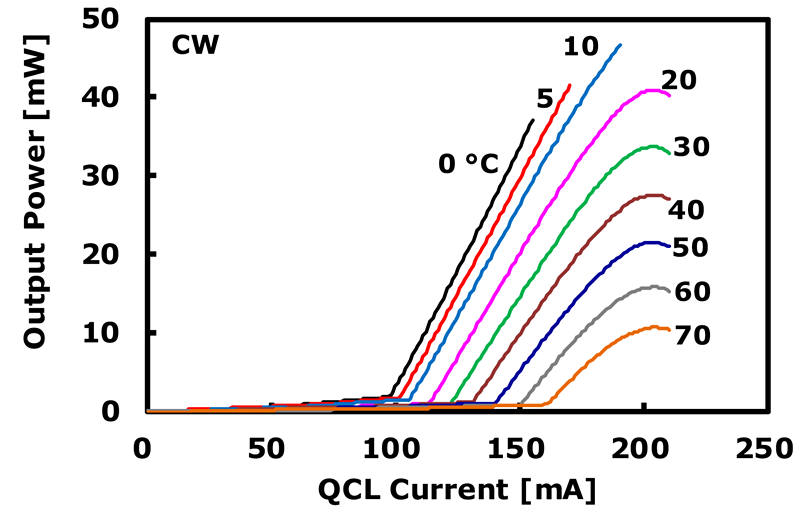

    Output power characteristic curve:

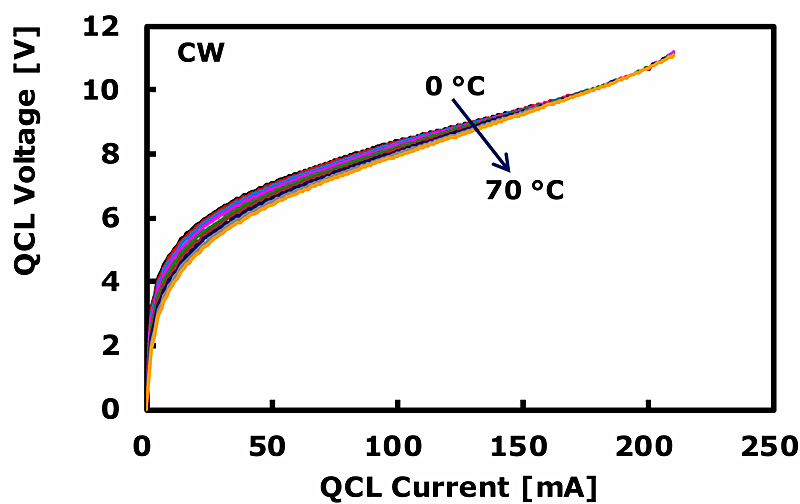

    Voltage characteristic curve

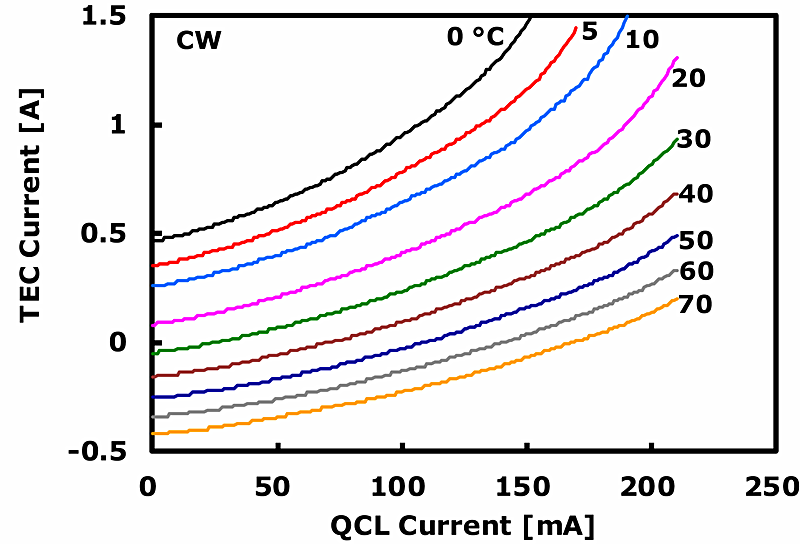

    TEC current characteristic curve

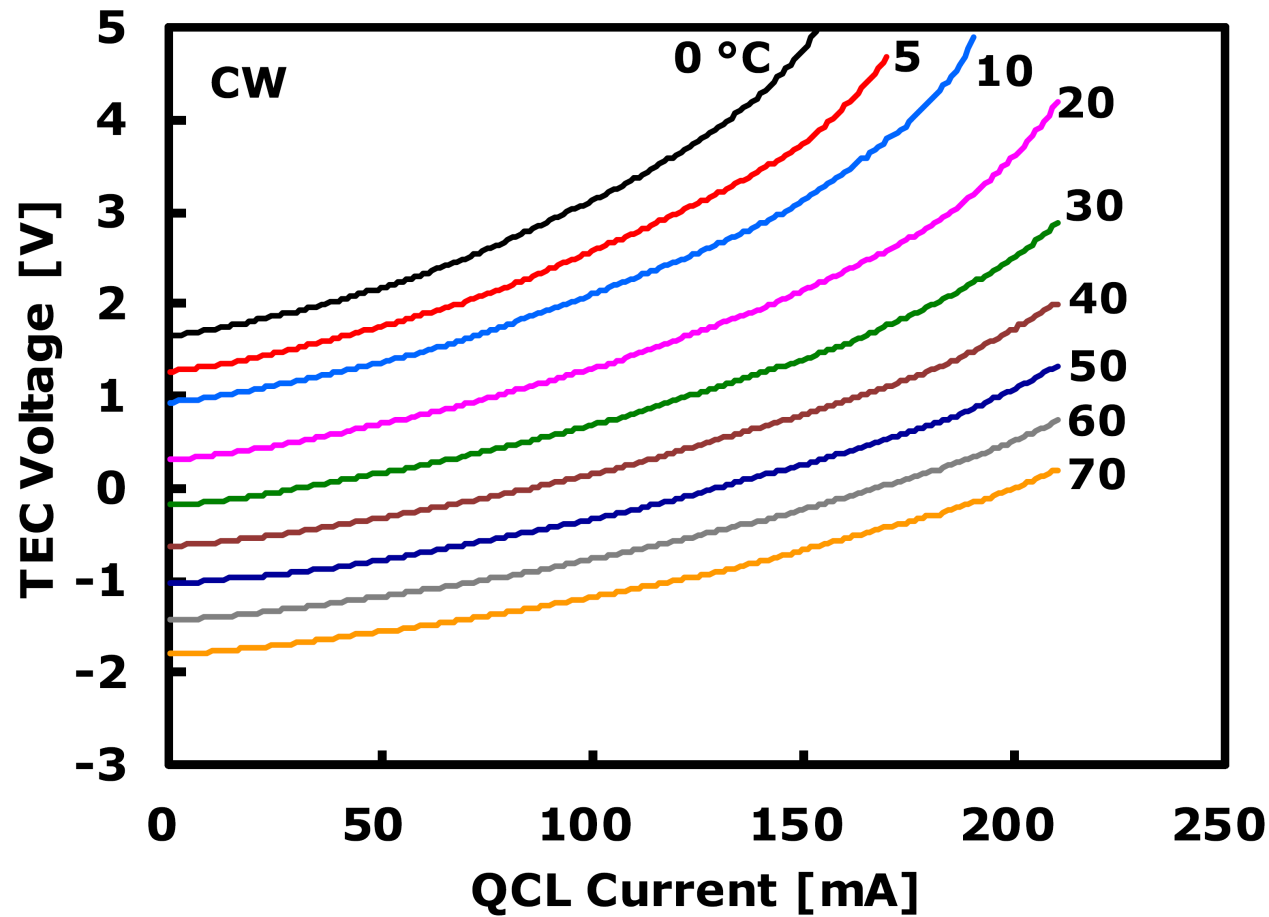

     TEC voltage characteristic curve

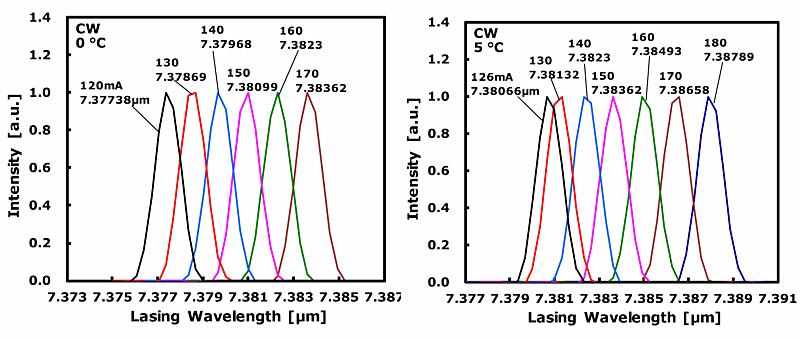

    Laser spectrum (CW)

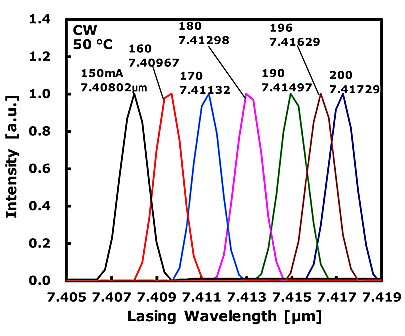

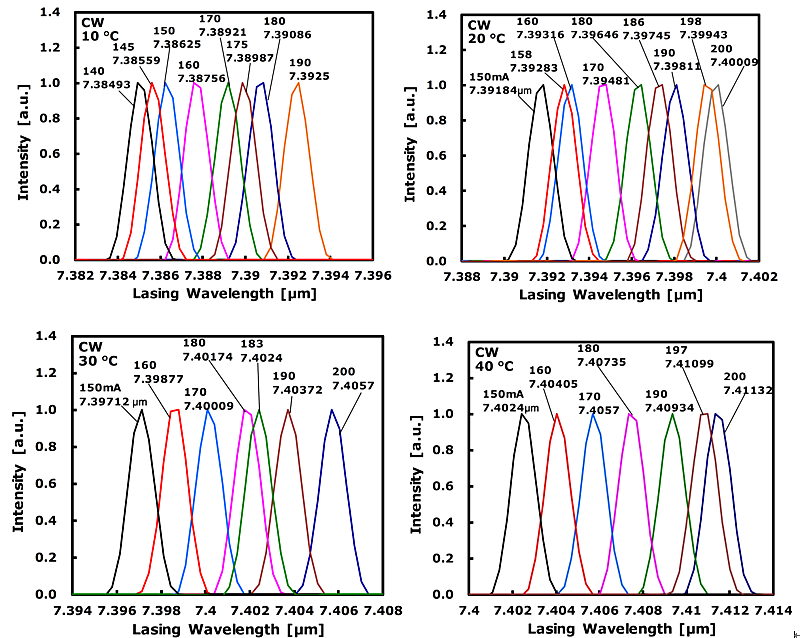

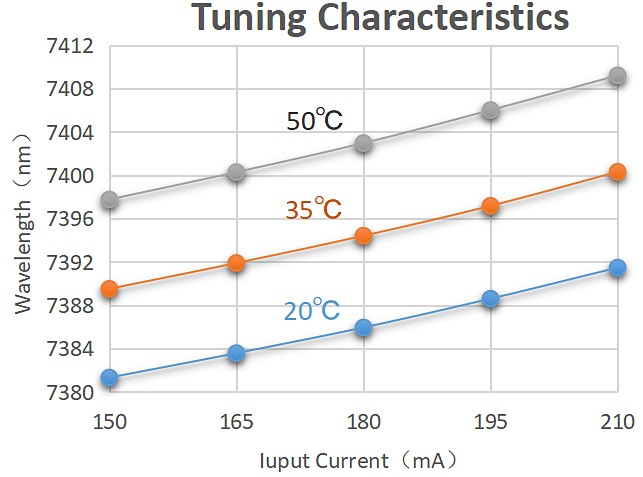

    Wavelength temperature current tuning curve

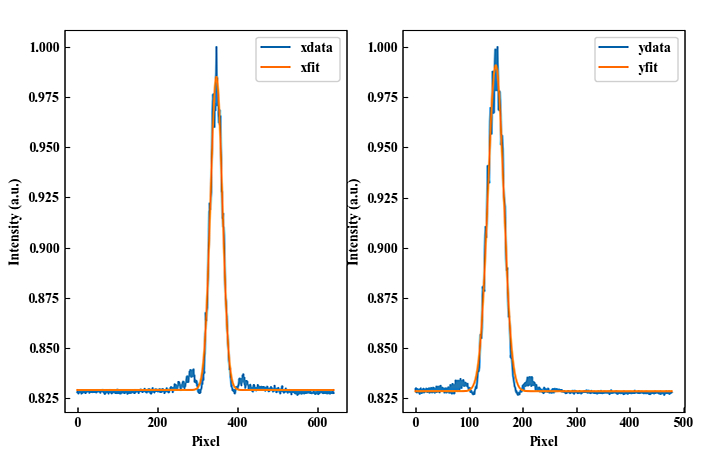

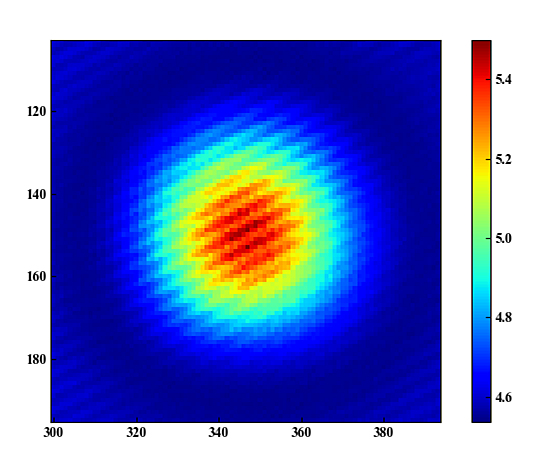

    Quantum cascade laser output spot

    The pixel size of the test camera is 5 μm, and the Gaussian fitting spot diameter is 320 μm.

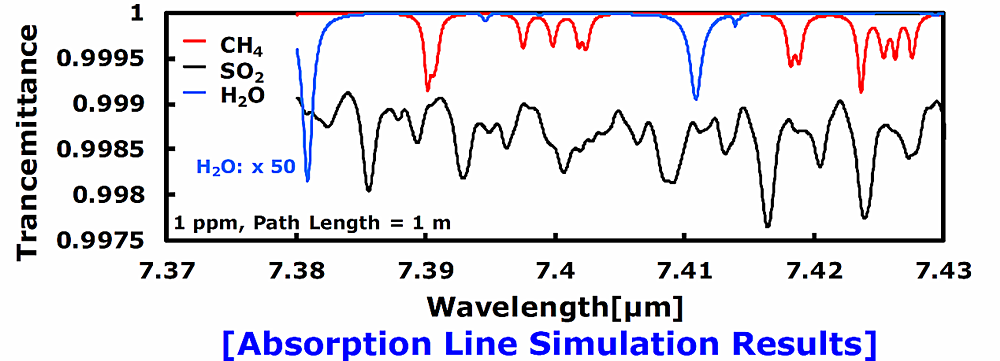

    Simulation results of absorption spectral lines near 7.4um

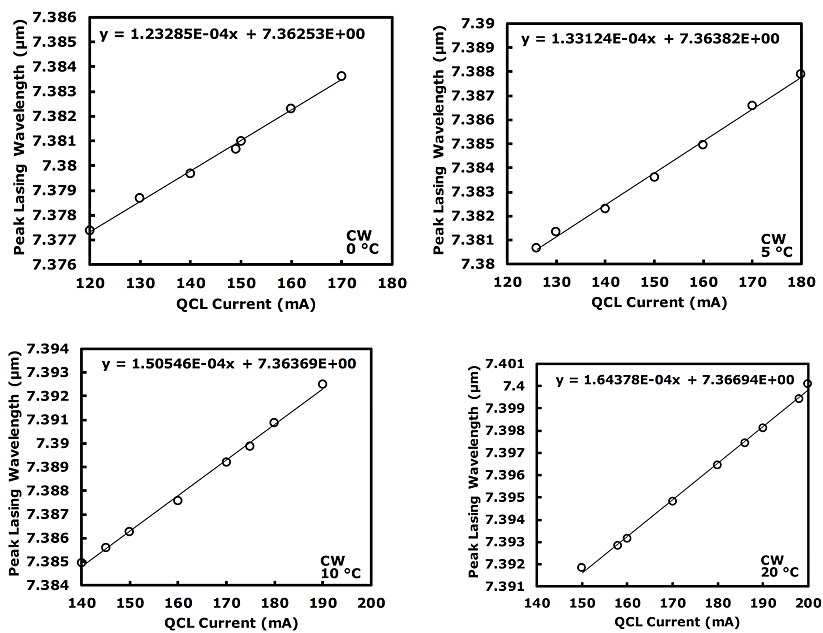

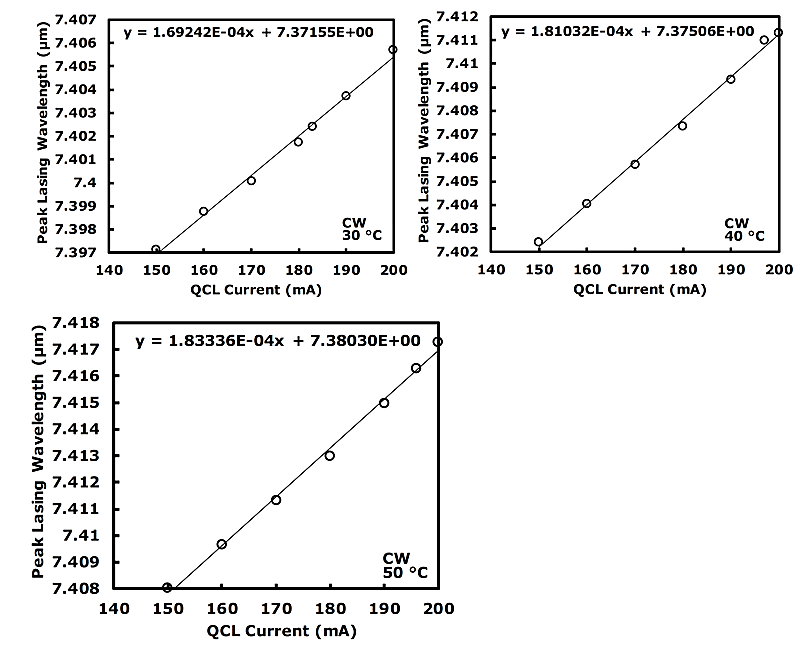

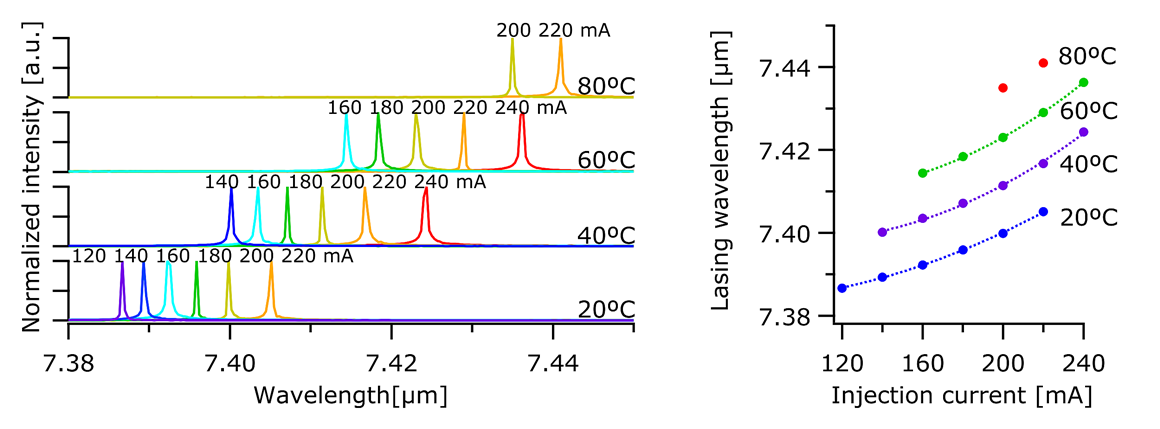

    The relationship curve between peak wavelength and current

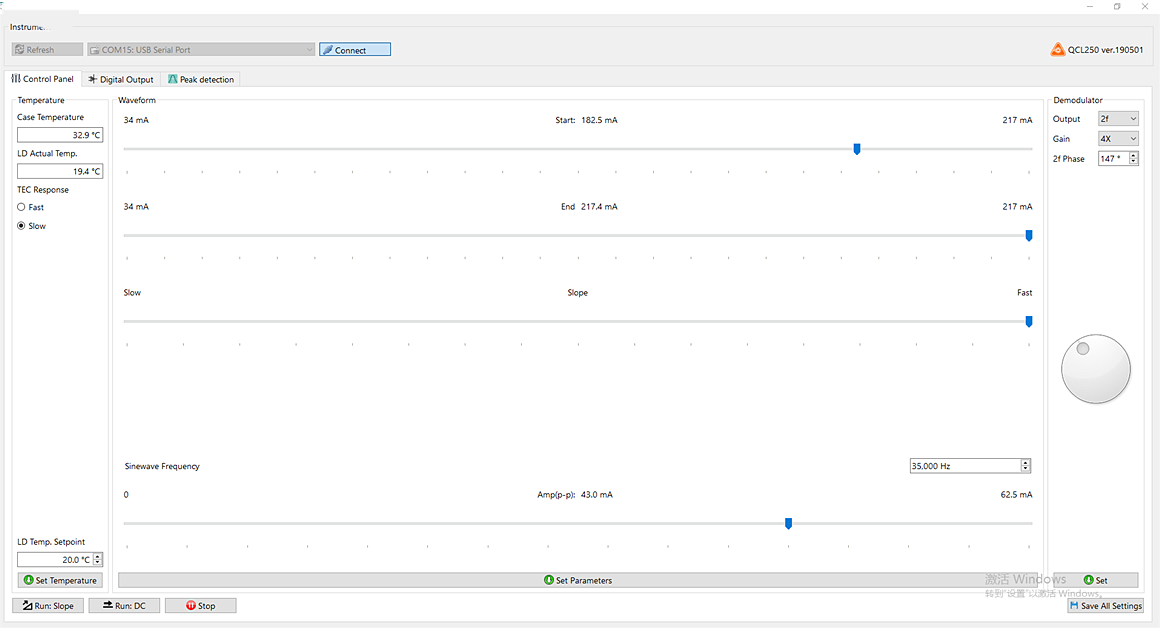

    Control software

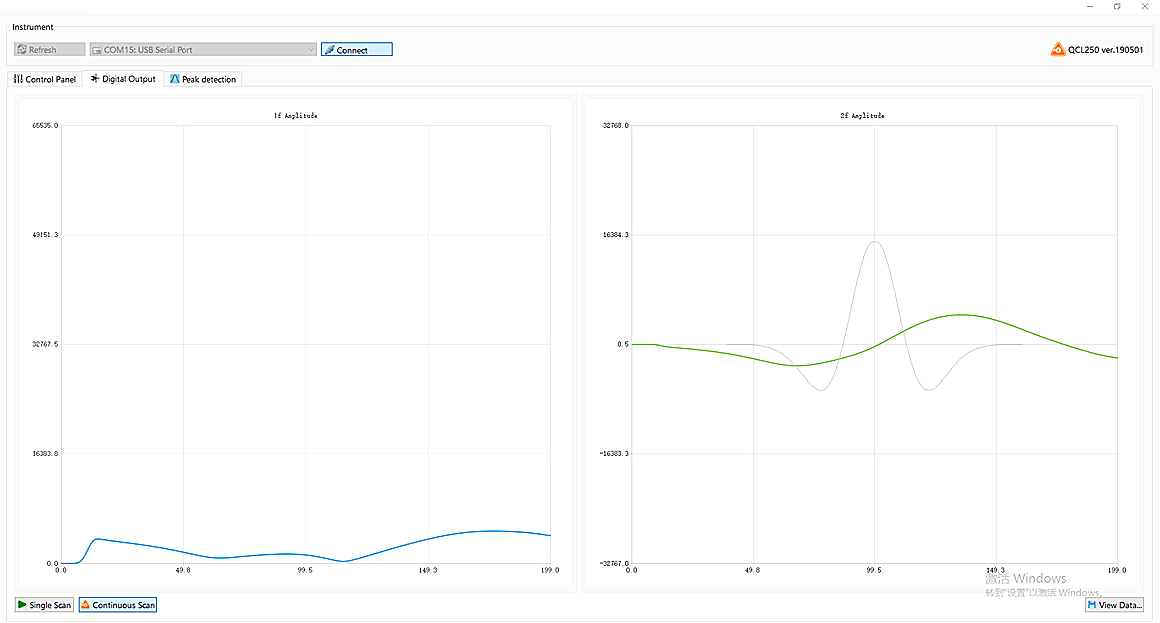

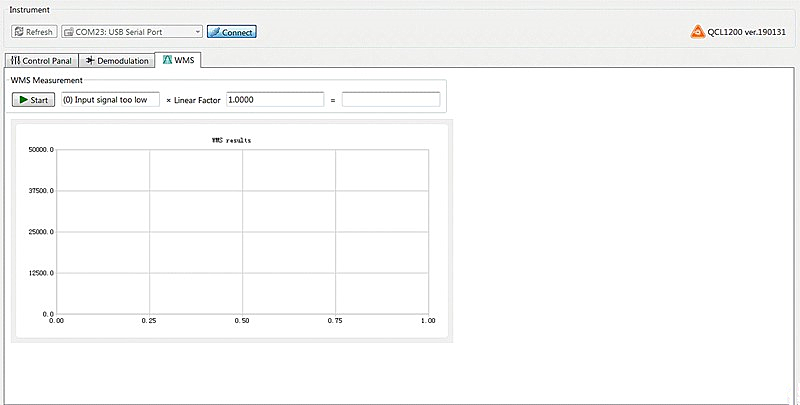

    2F signal acquisition interface:





    Algorithm calibration interface:

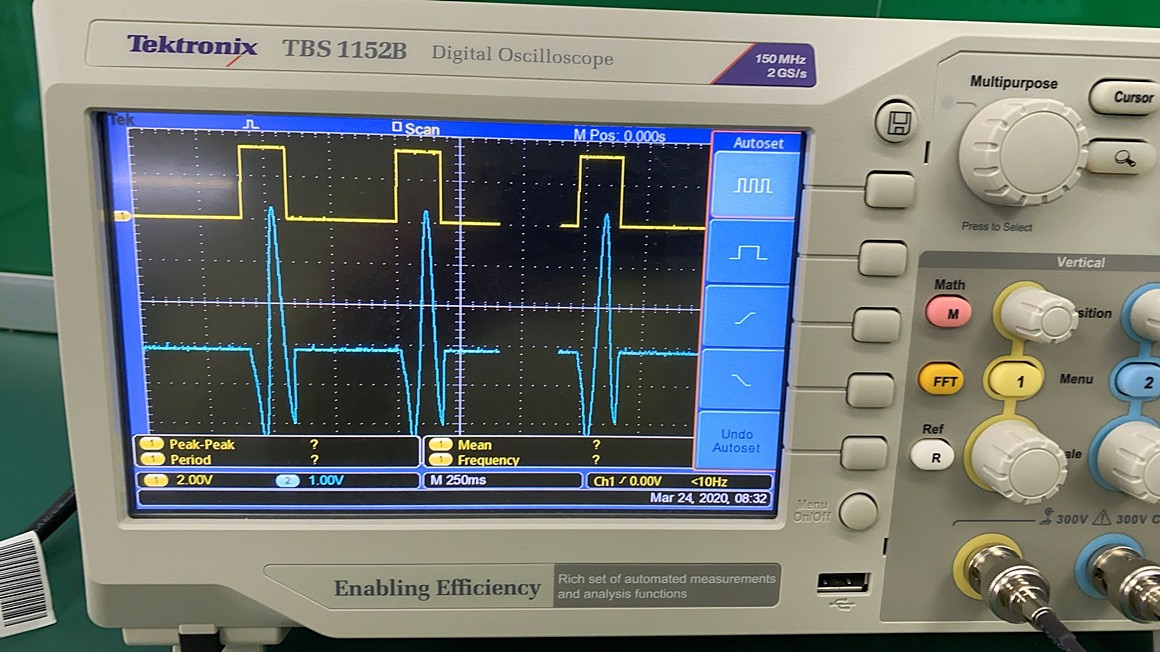

    Modulation signal linearity test (oscilloscope voltage signal effect diagram):






    Ordering Information

    MIR-QCL- W □-☆-△-XX

    W□□□□: Wavelength

    7400: 7400nm

    10530: 10530nm

    ☆: collimator

    1:  with

    0:  without

    △:  laser type

    FP: QCL-FP

    DFB: QCL-DFB

    XX:  output power

    005=5mw

    010=10mw

    100=100mw


    Optional Configurations

    --

    Downloads

    7.4um low power benchtop DFB-QCL mid-infrared quantum cascade laser 5mW (TDLAS integrated control module).pdf
