InGaAs Ultra Low Noise Photo Detector UPD-600M-A

首页 PhotoDetectors Amplified detectors InGaAs Amplified Photodetector Indium Gallium Arsenide InGaAs Ultra Low Noise Unit Detector UPD-A Series 800-1700nm InGaAs Ultra Low Noise Photo Detector UPD-600M-A

InGaAs Ultra Low Noise Photo Detector UPD-600M-A

The ultra-low noise photoelectric unit detection module integrates an ultra-low noise analog PIN detector, a low-noise broadband transimpedance amplifier, and an ultra-low noise isolation power supply. The output signal is not affected by the external power supply. The module is particularly outstanding in terms of background noise control. Under the same parameters, its background noise is about one-third of that of conventional modules, which can well meet customers' needs for smaller signal detection and higher signal-to-noise ratio.

产品特点Ultra-low noise、 High gain、 High bandwidth、 Compact structure、 Built-in low-noise isolated power supply

产品货号E80040202

应用领域Fiber optic sensing、 Fiber optic communication、 Laser ranging、 Spectral measurement、 Ns-level optical pulse detection

产品单价联系客服询价

到货日期请咨询客服获得货期

产品库存请咨询客服

Sherry

电话：16628709332

邮箱：moli@microphotons.com

加入询价单在线咨询

相关产品

主要参数
可选配置表
资料下载

主要参数

核心参数

尺寸图

Parameters

PN#	UPD-100M-A	UPD-200M-A	UPD-300M-A	UPD-400M-A	UPD-500M-A	UPD-600M-A	UPD-800M-A	UPD-1G-A	UPD-1.2G-A	UPD-1.5G-A	UPD-2G-A	UPD-2.5G-A	UPD-5G-A	Unit
Detector Type	InGaAs
Wavelength	800~1700													nm
Bandwidth	100M	200M	300M	400M	500M	600M	800M	1G	1.2G	1.5G	2G	2.5G	5G	Hz
Detector Responsivity	0.95	0.95	0.95	0.95	0.95	0.95	0.95	0.95	0.95	0.95	0.95	0.95	0.95	A/W@1550nm
Transimpedance Gain	30K	30K	30K	20K	15K	15K	30K	30K	30K	30K	30K	30K	6K	V/W
Saturation Optical Power	140	140	140	420	280	280	140	140	140	420	140	140	700	μW
NEP	2.2	2.2	2.2	2.7	3.1	3.1	3.3	3.3	3.3	3.3	3.3	3.3	3.3	pW/Sqrt(Hz)
Output Impedance	50	50	50	50	50	50	50	50	50	50	50	50	50	Ω
Output Coupling	DC/AC	DC/AC	DC/AC	DC/AC	DC	DC	AC	AC	AC	AC	AC	AC	AC
Power Supply Voltage	5	5	5	5	5	12	12	12	12	12	12	12	12	V
Power Supply Current	0.5(max)	0.5(max)	0.5(max)	0.5(max)	0.5(max)	0.5(max)	0.5(max)	0.5(max)	0.5(max)	0.5(max)	0.5(max)	0.5(max)	0.3	A
Optical Input	FC/APC（Free space option available）												FC/APC
RF Output	SMA												SMA
Dimensions	655020						655025						809025	mm

Test Result

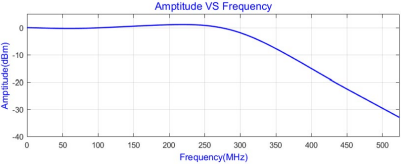

300MHz ultra-low noise unit detector

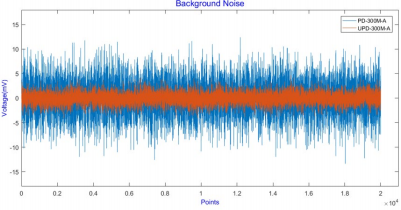

Comparison of the Ultra-Low Noise Unit Detector with Conventional Unit Detector in Terms of Background Noise
