首页 PhotoDetectors Amplified detectors InGaAs Amplified Photodetector 400-1700nm indium gallium arsenide amplification photodetector - adjustable gain - visible light extension 400-1700nm Visible Extension InGaAs Amplified Photodetector Active Area: 2mm × 2m

    • 400-1700nm Visible Extension InGaAs Amplified Photodetector Active Area: 2mm × 2m

    IdealPhotonics' Visible Extension InGaAs Amplified Photodetector has a light-sensitive range covering 400nm to 1700nm. It features 8 adjustable gain levels and can achieve quantitative optoelectronic conversion with a wide dynamic range. It is suitable for various optoelectronic development scenarios, offering excellent performance and cost-effectiveness, along with comprehensive technical support. It is commonly used in visible light and near-infrared light measurements.

    产品特点Light-sensitive range 400nm-1700nm, commonly used in visible and near-infrared light measurements、 Amplified detector with 8 adjustable gain levels for quantitative optoelectronic conversion、 Wide dynamic range, suitable for various optoelectronic development scenarios、 Excellent performance, high cost-performance ratio, with complete technical support、 Customization services available

    产品货号E80043191

    应用领域Visible and infrared light measurement.

    产品单价联系客服询价

    到货日期请咨询客服获得货期

    产品库存请咨询客服

    Sherry

    电话：16628709332

    邮箱：moli@microphotons.com

    加入询价单 在线咨询

    收藏

    相关产品

    主要参数
  • 核心参数

  • 尺寸图

    • Main Parameters



    Parameter

    Value

    Wavelength Range

    400-1700nm

    Response Time Constant

    5ns

    35ns

    Gain Range

    Hi-Z Load: 1.51kV/A to 4.75MV/A; 50Ω Load: 0.75kV/A to 2.38MV/A

    Signal Amplitude

    Hi-Z Load: 0 to 10V; 50Ω Load: 0 to 5V

    Gain Adjustment Method

    Rotary switch adjustment: 0 to 70dB, 10dB per step, total 8 steps. Bandwidth inversely proportional to gain.

    NEP

    1.4 × 10-12W/Hz1/2

    5.2 × 10-13W/Hz1/2

    Active area

    1mm×1mm

    2mm×2mm

    Active area Depth

    0.13"     (3.3  mm)

    Detector Net Weight

    0.10kg

    Operating Temperature

    10-40℃

    Storage Temperature

    -20-70℃

    Dimensions

    2.79" X 2.07" X 0.89"  (70.9  mm X  52.5  mm X  22.5  mm)

    Power Interface

    Power Switch

    Signal Interface

    Gain Adjustment

    Mounting Rod Interface

    Optical Interface

    LUMBERG  R SMV3  FEMA LE

    Slide switch with LED indicator

    BNC Female Socket

    8-step rotary knob

     M4×2

    SM1× 1

    SM0.5 × 1



    8-step Quantitative Adjustable Gain Parameters

    0dB

    10dB

    20dB

    30dB

    Gain (Hi-Z)

    1.51× 103V/ A

    Gain (Hi-Z)

    4.75× 103V /A

    Gain (Hi-Z)

    1.5 × 104V/ A

    Gain (Hi-Z)

    4.75× 104 V/A

    Gain (50Ω)

    0.75× 103V/ A

    Gain (50Ω)

    2.38× 103V /A

    Gain (50Ω)

    0.75× 104V /A

    Gain (50Ω)

    2.38× 104 V/A

    Bandwidth (BW)

    13MHz

    Bandwidth (BW)

    1.7MHz

    Bandwidth (BW)

    1.1MHz

    Bandwidth (BW)

    300kHz

    Noise (RMS)

    ≤250uV

    Noise (RMS)

    ≤250uV

    Noise (RMS)

    ≤250uV

    Noise (RMS)

    ≤250uV

    40dB

    50dB

    60dB

    70dB

    Gain (Hi-Z)

    1.51× 105V/ A

    Gain (Hi-Z)

    4.75× 105V /A

    Gain (Hi-Z)

    1.5 × 106V/ A

    Gain (Hi-Z)

    4.75× 106 V/A

    Gain (50Ω)

    0.75× 105V/

    Gain (50Ω)

    2.38× 105V /A

    Gain (50Ω)

    0.75× 106V/ A

    Gain (50Ω)

    2.38× 106V/A


    A


    /A


    /A


    V/A

    Bandwidth (BW)

    90kHz

    Bandwidth (BW)

    28kHz

    Bandwidth (BW)

    9kHz

    Bandwidth (BW)

    3kHz

    Noise (RMS)

    ≤250uV

    Noise (RMS)

    ≤250uV

    Noise (RMS)

    ≤300uV

    Noise (RMS)

    ≤400uV

    Signal Bias

    ±8mV(Typ.) ， ±12mV(Max)

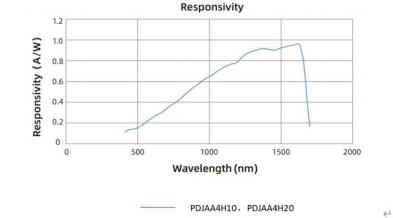

    Response Curve：

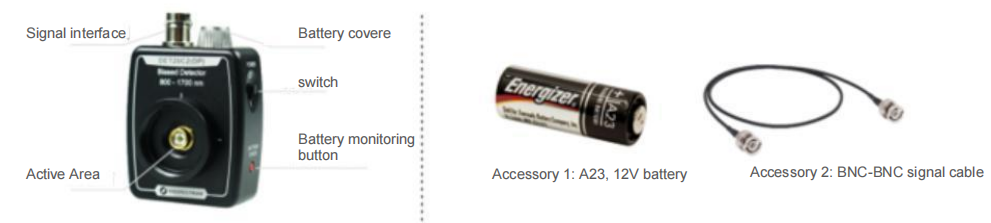

    Product Configurations：



    Attachment 1: Optional Configuration Table

    Visible Light Extended InGaAs Amplified Photodetector

    Optional Configurations

    Product Name

    Material

    Type

    Features

    Wavelength Range  Sensitive Area

    Reserved Optional Configurations

    PD: "Photodetector"

    J: InGaAs

    A: Amplified Type

    A:Adjustable Gain

    4H10：400-1700nm，1mm× 1mm






    4H20：400-1700nm，2mm× 2mm




    Attachment 2: Model and Product Number Correspondence Table

    Model

    Part Number

    Specs

    PDJAA4H10

    A80153433

    400-1700nm Visible Light Extended InGaAs Amplified Photodetector, Active area 1mm×1mm, 0～70dB Eight-Level Quantitative Adjustable Gain, Response Time Constant 5ns

    PDJAA4H20

    A80153434

    400-1700nm Visible Light Extended InGaAs Amplified Photodetector, Active area 2mm×2mm, 0～70dB Eight-Level Quantitative Adjustable Gain, Response Time Constant 35ns
