1550nm PM Lithium Niobate 10Gb/s Intensity Modulator

1550nm PM Lithium Niobate 10Gb/s Intensity Modulator

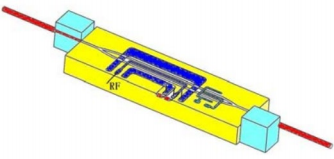

The Lithium Niobate (LiNbO3) intensity modulator is made using titanium diffusion or proton exchange techniques to create a Mach-Zehnder type optical waveguide. The input and output optical fibers are precisely coupled to the waveguide, and the electro-optic effect of the lithium niobate material is used to achieve intensity modulation of the optical signal.

Product features：X-cut and Y-propagating Lithium Niobate、 Titanium diffusion or proton exchange waveguide、 Low drive voltage、 Independent bias electrodes、 Zero chirp、 Precise diagonal coupling of the fiber to the chip、 Greatly reducing back-reflection、 Excellent long-term stability

Part Number：--

Application area：Fiber optic communication、 Optical sensing、 Optical measurement

Add to Cart Consult Favorite

Related Products

Main parameters
General Parameters
Optional Configurations
Downloads

Main parameters

Core parameters

Dimension Drawing

General Parameters

Structure

Parameters(23℃)

Parameter		Unit	Value
			2.5Gb/s	10Gb/s
Optical	Operating Wavelength*	nm	1550±20
	Insertion Loss	dB	≤4.0
	Maximum Input Optical Power	mW	≤200(APE process)
			≤50(Ti process)
	Optical Return Loss	dB	≥45
	On-Off Extinction Ratio	dB	≥20
Electrical	RF Half-Wave Voltage@DC	v	≤4.0	≤5.0
	Bias Half-Wave Voltage	v	≤5.0	≤8.0
	Bandwidth	GHz	≥3	≥8
	Electrical Return Loss	dB	≤-10
Mechanical	RF Connector		SMA
	Bias Connector		PIN
	Input Pigtail Type		PM Fiber
	Output Pigtail Type		PM or SM Fiber
Environmental	Operating Temperature	℃	0~+70
	Storage Temperature	℃	-40~+85

* The wavelengths of 1310nm, 1064nm, and 850nm are available for customization.
