    • 1551.08nm Narrow Linewidth Fiber Bragg Grating (FBG) Filter (Bandwidth < 0.05nm, Reflectivity up to 90%, PM optional)

    IdealPhotonics' narrow linewidth passband filter is based on our advanced fiber Bragg grating technology. The narrow linewidth passband filter can be used to select narrow-bandwidth optical signals to pass through while blocking all other wavelengths. This narrow linewidth passband filter is designed for applications such as fiber laser ASE noise suppression, lidar filters, high-resolution Raman spectroscopy, fluorescence microscopy, and optical instruments.

    Product features：Ultra-narrow bandwidth、 All-fiber structure、 Wavelength selectable、 Wide stopband width、 Different fiber types available

    Part Number：--

    Application area：Fiber laser noise filtering、 Lidar spectral noise filtering、 High-resolution Raman spectroscopy analysis、 Fluorescence imaging

    Add to Cart Consult Favorite

    Related Products

    Main parameters
  • Core parameters

  • Dimension Drawing
    • General Parameters

    Technical Parameters

    Model:

    NBFBG-1551.08-004-99-01-SA


    Date:

    28/09/2022

    Name:

    Fiber Bragg Grating




    S/N:

    5618-1


    Temperature:

    23°C

    Optical Specifications

    Requirement

    Measurement Values

    Unit

    Center Wavelength @ 3 dB

    1551.08±0.1

    1551.02

    nm

    Isolation

    N.A.

    36.86

    dB

    Bandwidth @ 0.5dB

    N.A.

    0.02

    nm

    Bandwidth @ 3.0dB

    <0.05

    0.03

    nm

    Bandwidth @ 25.0dB

    N.A.

    0.07

    nm

    Reflectance

    >95

    100.0

    %

    Thermal Stability

    N.A.

    N.A.

    pm/°C

    Fiber Type

    SMF28e+

    SMF28e+


    Adsorptive Coating

    N.A.

    N.A.


    Connector

    FC/APC

    FC/APC

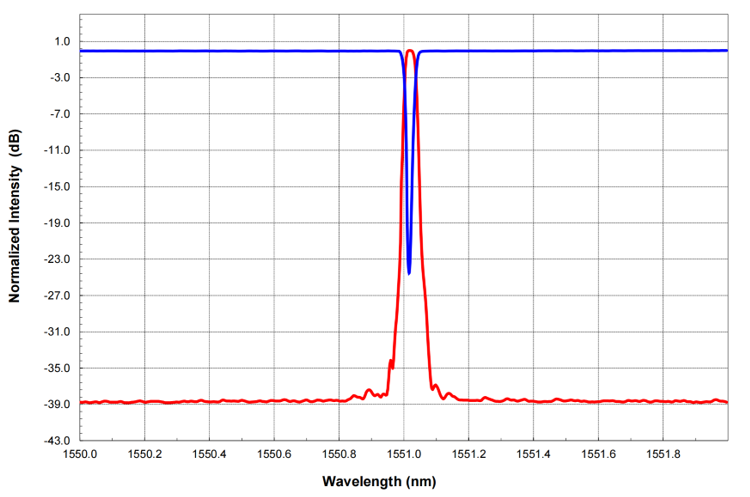

     Transmission spectrum




    General Parameters








    Ordering Info

    NBFBG- □□□□-☆-☆☆-A8▽- XX

     □□□□: Wavelength

    532: 532nm

    1064: 1064nm

    1550: 1550nm

    *****

    1950: 1950nm

    ☆ : bandwidth

    004: 0.04nm

    008: 0.08nm

    ☆☆：Reflectivity 01:1%

    10:10% 90:90%

    ▽: Wavelength Tolerance

     01: ±0.1nm

    XX: Fiber and Connector Type

    SA=SMF-28E+ FC/APC

    SP=SMF-28E+ FC/PC

    SN=SMF-28E+ None

    PA=PM1550 Fiber+ FC/APC

    PP=PM1550 Fiber+ FC/PC

    PN=PM1550 Fiber+ None




    Optional Configurations

    --

    Downloads

    1551.08nm Narrow Linewidth Fiber Bragg Grating (FBG) Filter (Bandwidth < 0.05nm, Reflectivity up to 90%, PM optional).pdf
