• FBG Filter 100GHz 1062nm

    Fiber Bragg Grating (FBG) is a widely used component in optical communications. FBG functions as a narrowband filter in optical fibers. The Bragg grating is imprinted in the fiber using a holographic process. They can be produced using standard single-mode fibers or special fibers, such as radiation mode suppression fibers, which are designed to reduce cladding mode losses.

    产品特点

    产品货号A80152158

    应用领域DWDM technology for 2.5 Gbps and 10 Gbps systems、 ASE filtering、 Multiplexers for 100 GHz and 50 GHz channel spacing

    产品单价联系客服询价

    到货日期请咨询客服获得货期

    产品库存请咨询客服

    Sherry

    电话:16628709332

    邮箱:moli@microphotons.com

    主要参数
  • 核心参数
  • 尺寸图
  • Parameters



    Parameters

    Advanced

    Standard

    Wavelength

    800 .. 1620 nm

    1280 .. 1340nm; 1520 .. 1620 nm

    Reflectivity

    5 .. 99.99 %

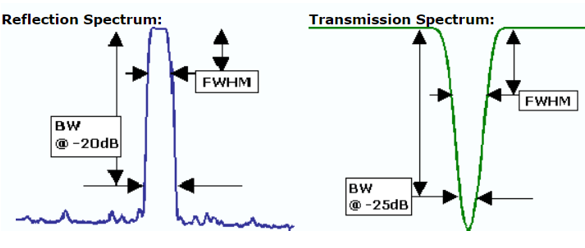

    FWHM

    50GHz / 100GHz / 200GHz spacing(Customizable)

    Passband bandwidth

    > +/- 0.12 nm

    Insertion loss

    <0.1 dB

    PDL

    <0.2 dB

    SNR adjusted channel

    >25 dB

    >20 dB

    SNR non-adjusted channel

    >30 dB

    >25 dB

    Terminal connection type

    Bare fiber, FC/PC, FC/APC, ST, SC/PC, SC/APC, DIN, SMA

    Packaging

    3mm standard tube, 9mm athermal, boxed

    Operating temperature

    0°C .. 70°C

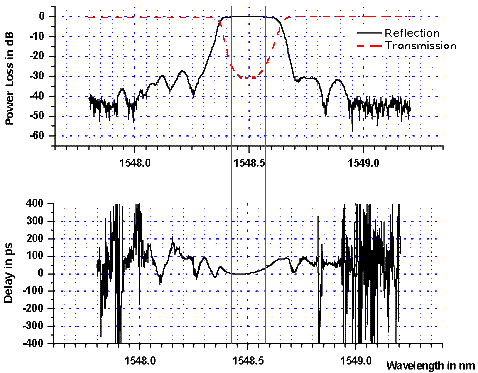

    Spectral and Delay Characteristics (50 GHz Spacing)








    可选配置表
