    • Polarization-maintaining optical isolator (single-stage) 1050nm 1W FC/APC

    Idealphotonics offers a broad range of fiber optic isolators within the 780-1310nm wavelength range. The isolators can be coupled with any single-mode fiber coupling equipment purchased from our company (such as lasers, SLDs, SOAs, and gain modules). In these cases, the devices feature isolators, and measurement reports show the performance of the OI output. The equipment can be spliced to prevent additional losses and feedback at the FC/APC connector. For fiber optic isolators in the 1060-1310nm wavelength range, a compact (55×5.5×5.5mm) light package is used, with a maximum input power of 300-500mW. In the shorter range (780-1055nm), a different material that absorbs less light power is used, and the OI is offered in a significantly larger (up to 118x37x35) and heavy metal package. In high-power OIs, the same material is used to allow up to 1W input powe

    产品特点High isolation、 Low insertion loss、 Fast axis blocked

    产品货号A80152511

    应用领域Light-sources isolation

    产品单价联系客服询价

    到货日期请咨询客服获得货期

    产品库存请咨询客服

    Sherry

    电话：16628709332

    邮箱：moli@microphotons.com

    加入询价单 在线咨询

    收藏

    相关产品

    主要参数
  • 核心参数

  • 尺寸图

    • Specifications

    Parameter

    Min.

    Typ.

    Max.

    Unit

    Single/Double Stage


    Single



    Center Wavelength


    1064


    nm

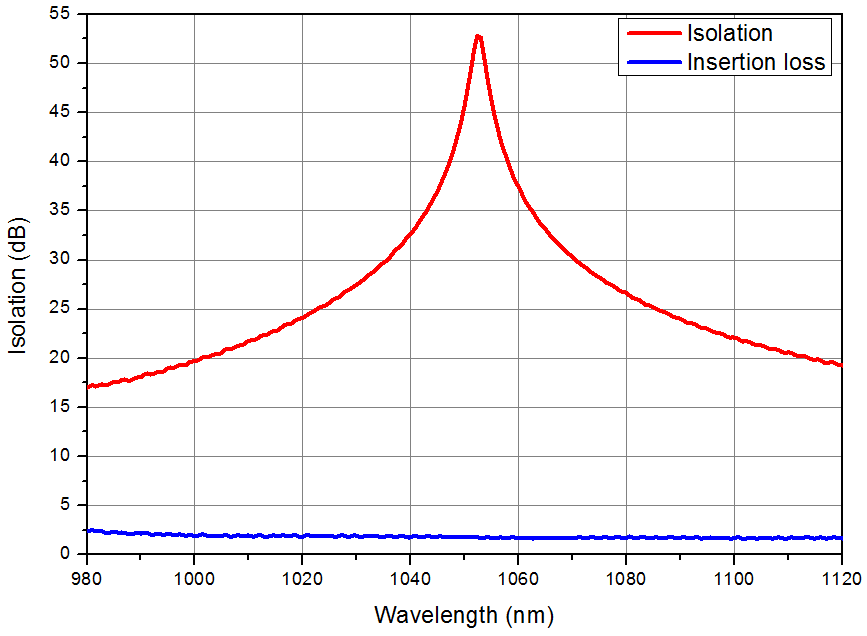

    Peak Isolation

    35

    50


    dB

    Insertion Loss


    2

    3

    dB

    Return Loss (Input/Output)

    55/50



    dB

    Extinction Ratio

    18

    23


    dB

    Optical Power (CW)



    1

    W

    Max Tensile Load



    5

    N

    Operating Temperature

    -5


    50

    °C

    Storage Temperature

    -40


    85

    °C





    Fiber Specifications

    Parameters

    Panda PM980

    Unit

    Mode Field Diameter

    6.6±1

    μm

    Cutoff Wavelength

    920±50

    nm

    Cladding Diameter

    125±1

    μm

    Coating Diameter

    245±15

    μm

    Core to Cladding Offset

    ≤0.5

    μm

    Length (per port)

    1.0 ± 0.2

    m

    Connector

    FC/APC


    Connector Alignment with Panda Fiber:5.1.png




    PN#

    PMOI-1050-SS-①①-②②

    ①Connector Type on Port 1 & 2: 1 - FC/APC, N - none

    ②Fiber Jacket on Port 1 & 2: B - 250um Panda Fiber, L - 900um Loose Tube Panda Fiber Example: PMOI-1050-SS-N1-BB









    General Parameters



    Typical parameters of fiber optic isolators

     * @Max10mW Reverse optical power。

    model

    Single/Bipolar

    Stage

    wavelength

    Peak isolation*

    insertion loss

    Return Loss

    extinction ratio

    Input optical power(CW)

    (Direct optical power)

    Fiber type

    Package Size(LWH)

    nm

    dB

    dB

    dB

    dB

    W

    mm

    PMOI-780-SS

    single

    780

    30

    1

    50

    20

    0.3

    PM780

    91x27x28

    PMOI-808-SS

    single

    808

    30

    1

    50

    20

    0.3

    PM780

    91x27x28

    PMOI-850-SS

    single

    850

    35

    1

    50

    20

    0.3

    PM850

    91x27x28

    PMOI-980-SS

    single

    980

    35

    1

    50

    20

    0.3

    PM980

    91x27x28

    PMOI-1025-SS-HP

    single

    1025

    30

    1.2

    50

    20

    1

    PM980

    118x37x35

    HIOI-1025-SS-HP

    single

    1025

    30

    1.2

    50


    1

    HI1060

    118x37x35

    PMOI-1030-SS-HP

    single

    1030

    26

    1

    50

    20

    1

    PM980

    118x37x35

    HIOI-1030-SS-HP

    single

    1030

    26

    1

    50


    1

    HI1060

    118x37x35

    PMOI-1030-SS

    single

    1030

    22

    4.7

    55

    23

    0.08

    PM980

    55×5.5×5.5

    HIOI-1030-SS

    single

    1030

    22

    4

    55


    0.08

    HI1060

    55×5.5×5.5

    PMOI-1040-SS-HP

    single

    1040

    35

    1

    50

    20

    1

    PM980

    118x37x35

    HIOI-1040-SS-HP

    single

    1040

    35

    1

    50


    1

    HI1060

    118x37x35

    PMOI-1040-SS

    single

    1040

    30

    4.2

    55

    23

    0.1

    PM980

    55×5.5×5.5

    HIOI-1040-SS

    single

    1040

    30

    4.2

    55

    23

    0.1

    PM980

    55×5.5×5.5

    PMOI-1050-SS-HP

    single

    1050

    50

    2.5

    50

    20

    1

    PM980

    118x37x35

    PMOI-1050-SS

    single

    1050

    40

    2.9

    55

    23

    0.15

    PM980

    55×5.5×5.5

    PMOI-1055-SS-HP

    single

    1055

    35

    1

    50

    20

    1

    PM980

    118x37x35

    HIOI-1055-SS-HP

    single

    1055

    35

    1

    50


    1

    HI1060

    118x37x35

    PMOI-1055-SS

    single

    1055

    40

    2.6

    55

    23

    0.2

    PM980

    55×5.5×5.5

    HIOI-1055-SS

    single

    1055

    40

    2.6

    55


    0.2

    HI1060

    55×5.5×5.5

    HIOI-1064-SS-HP

    single

    1064

    26

    1

    55


    1-5

    HI1060

    35x5x5

    PMOI-1064-SS

    single

    1064

    40

    1.8

    55

    23

    0.3

    PM980

    55×5.5×5.5

    HIOI-1064-SS

    single

    1064

    40

    1.8

    55


    0.3

    HI1060

    55×5.5×5.5

    PMOI-1064-DS

    double

    1064

    55

    3.2

    55

    20

    0.3

    PM980

    55×5.5×5.5

    PMOI-1085-SS-HP

    single

    1085

    35

    1

    50

    20

    1

    PM980

    118x37x35

    HIOI-1085-SS-HP

    single

    1085

    35

    1

    50


    1

    HI1060

    118x37x35

    PMOI-1085-SS

    single

    1085

    30

    1.8

    55

    23

    0.3

    PM980

    55×5.5×5.5

    HIOI-1085-SS

    single

    1085

    30

    1.8

    55


    0.3

    HI1060

    55×5.5×5.5

    PMOI-1095-SS-HP

    single

    1095

    30

    1

    50

    20

    1

    PM980

    118x37x35

    HIOI-1095-SS-HP

    single

    1095

    30

    1

    50


    1

    HI1060

    118x37x35

    PMOI-1095-SS

    single

    1085

    28

    1.8

    55

    23

    0.3

    PM980

    55×5.5×5.5

    HIOI-1095-SS

    single

    1085

    28

    1.8

    55


    0.3

    HI1060

    55×5.5×5.5

    PMOI-1120-SS

    single

    1120

    30

    1.7

    50

    21

    0.3

    PM980

    55×5.5×5.5

    PMOI-1120-DS

    double

    1120

    40

    2.8

    50

    21

    0.3

    PM980

    55×5.5×5.5

    PMOI-1150-SS

    single

    1150

    20

    2

    55

    20

    0.3

    PM980

    55×5.5×5.5

    PMOI-1150-DS

    double

    1150

    30

    2.8

    55

    20

    0.3

    PM980

    55×5.5×5.5

    PMOI-1178-DS

    double

    1178

    25

    2

    50

    20

    0.35

    PM980

    55×5.5×5.5

    PMOI-1188-DS

    double

    1188

    20

    2.1

    50

    20

    0.35

    PM980

    55×5.5×5.5

    PMOI-1250-DS

    double

    1250

    30

    1.2

    55

    23

    0.4

    PM980

    55×5.5×5.5

    PMOI-1310-DS

    double

    1310

    58

    0.6

    55

    23

    0.5

    PM1300

    55×5.5×5.5
