首页 Light Sources Incoherent Sources Thulium fiber ASE source 2000nm band ASE broadband light source 10/20/40mW (non adjustable) 2000nm Band ASE Broadband Light Source, Modular, 40mW (Non-adjustable)

    • 2000nm Band ASE Broadband Light Source, Modular, 40mW (Non-adjustable)

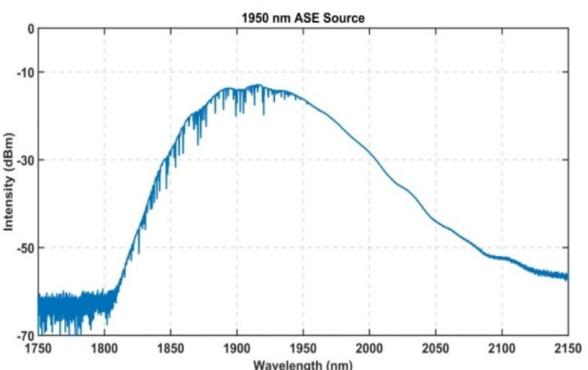

    2000nm-band ASE Broadband Light Source The 2000nm band ASE broadband light source uses a short-wavelength laser-pumped thulium-doped fiber, with single-mode fiber output power reaching up to 40mW. The spectral coverage ranges from 1850 to 2000nm, making it suitable for applications such as laser biology and spectral measurement

    产品特点Spectral flatness、 Mid-infrared band、 High stability output power

    产品货号B80010082

    应用领域Fiber optic sensing、 Medical imaging、 Fiber optic device testing

    产品单价联系客服询价

    到货日期请咨询客服获得货期

    产品库存请咨询客服

    Daisy

    电话：18602170419

    邮箱：moli@microphotons.com

    加入询价单 在线咨询

    收藏

    相关产品

    主要参数
  • 核心参数

  • Spectral Range Output Power

  • 尺寸图

    • General Parameters



    Optical Specifications

    Unit

    Typical Value

    Remarks

    Spectral Range

    nm

    1850~2000


    Output Power

    mW

    10/20/40

    Non-adjustable

    Isolation at Output Port

    dB

    >35


    Short-term Stability (15 min)

    dB

    ≤   ±0.02

    Equivalent≤±0.5%

    Long-term Stability (8 hours)

    dB

    ≤   ±0.05

    Equivalent≤± 1.2%

    Polarization Extinction Ratio (PER)

    dB

    ≤  0.2


    Tail Fiber and Connector Type



    -

    SMF-28 or SM  1950， FC/A PC




    Electrical and Environmental Parameters

    Benchtop

    Module

    Control Method

    Keypad

    RS232 Serial Communication

    Communication Interface

    Optional

    DB9  Female

    Power Supply

    100~240V  AC,<30W

    DC12V3A,  ≤36W

    Dimensions

    260(W) ×320(D) ×120(H)mm

    139(W)x235(D)x70(H)mm

    Operating Temperature Range

    -5~+35 °C

    Operating Humidity Range

    0~70%




    Ordering info/PN#

    ASE

    Spectral Range

    Output Power (mW)

    Fiber Type

    Packaging Type


    2000

    10/20/40

    SM

    Benchtop; M = Modular
