2000nm Mid-Infrared Benchtop ASE Light Source 10mW

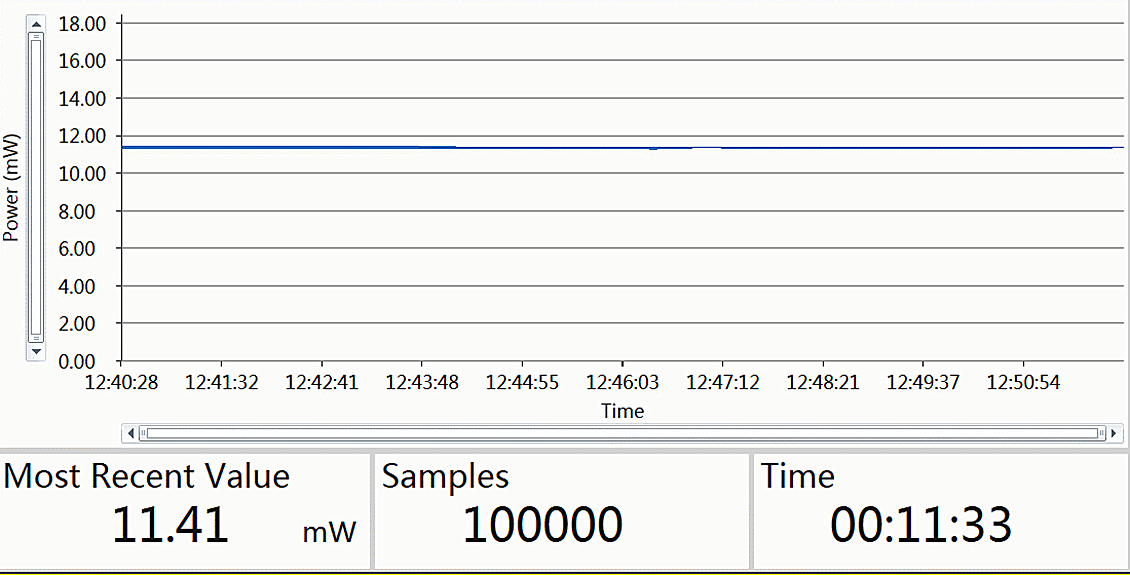

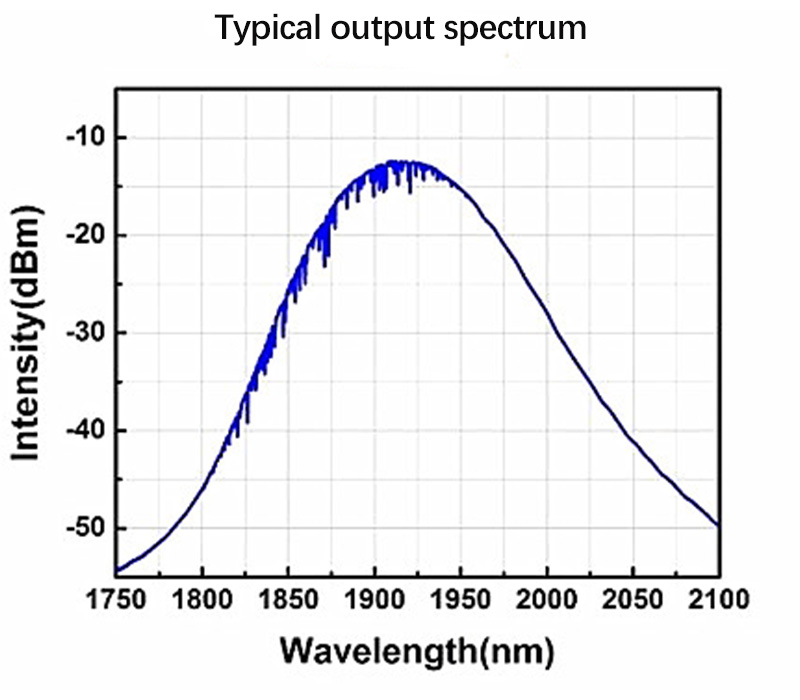

IdealPhotonics' Ultra-Width series 2000nm ASE light source is an Amplified Spontaneous Emission (ASE) light source operating around 1900 nm, offering one-touch operation and single-mode fiber output for testing and measurement applications. It is based on thulium-doped fluoride fiber to maximize ASE, with a typical maximum optical output power of 10 mW. An integrated isolator minimizes back reflections into the light source to enhance output power stability. The nominal center wavelength of the emitted light is 1920 nm and is non-polarized. The spectral width measured 20 dB below the peak is 100 nm. This light source features a Turn-Key pump laser protection function to effectively prevent user errors. It supports coarse power adjustment (1mW steps) and fine power adjustment (0.1mW steps).2000nm single-mode pump source is a highly integrated desktop system light source with a high-definition LCD display, continuously adjustable output power, and synchronous current and voltage display, making it ideal for experimental scientific research and production testing. Additionally, the company can provide modular packaging based on user needs for easy system integration.

产品特点Single-mode high-power output: up to 10mW、 Spectral width up to 120nm、 ASE optical isolation protection design、 Stable and continuously adjustable output power、 LCD status display、 High-precision ACC and ATC control circuits、 Optional built-in isolator

产品货号B80010002

应用领域Test and measurement、 Spectroscopy、 Gas sensing、 Biomedical applications、 Other scientific research
