    • C-Band Gain-Flattened Fiber ASE Broadband Source Module20-30mW

    The C-band gain-flattened fiber ASE broadband light source module adds gain-flattening technology to the ordinary broadband light source and optimizes the light source structure. The output spectrum flatness reaches 2dB, and it has high output power and compact size.

    产品特点Adjustable power、 Spectrum flatness, flatness < 2dB、 Highly stable output power

    产品货号B80010039

    应用领域Fiber optic sensing、 Medical imaging、 Fiber optic device testing、 Production testing

    产品单价联系客服询价

    到货日期请咨询客服获得货期

    产品库存请咨询客服

    Daisy

    电话：18602170419

    邮箱：moli@microphotons.com

    加入询价单 在线咨询

    收藏

    相关产品

    主要参数
  • 核心参数

  • 尺寸图

    • Main Parameters:

    Optical indicators

    Unit

    Typ

    Note

    Spectral range

    nm

    1528~ 1563

    2dB spectral range

    Output optical power

    mW

    10/20/50/100/200/400


    Power adjustment range (optional function)

    -

    10%~ 100%

    Spectral flatness maintenance

    Spectral flatness

    dB

    2

    *400mW model flatness 3d B

    Output isolation

    dB

    >35


    Short-term stability (15 minutes)

    dB

    ≤  ±0.02

    Equivalent ≤±0.5%

    Long-term stability (8 hours)

    dB

    ≤  ±0.05

    Equivalent≤± 1.2%

    Polarization PER

    dB

    ≤ 0.2

    ≥23


    Pigtail and connector type

    -

    SMF-28

    PM1550

    FC/APC


    Electrical and environmental parameters

    Benchtop

    Module

    Control mode

    Buttons

    RS232 serial communication

    Communication interface

    Optional

    DB9 Female

    Power supply

    100~240V AC, <30W

    5V DC,<15W

    Dimensions

    260(W) ×280(D) ×120(H)mm

    125(W) ×150(D) ×20( H)mm

    Operating temperature range

    -5~+35 °C

    Operating humidity range

    0~70%


    Ordering Information

    ASE

    Spectral range

    Output power (mW)

    *Adjustable power (optional)

    Output pigtail type

    Packaging


    C

    10/20/50/100/20 0/400

    *T

    SM= SMF-28 PM=PM1550

    B= Benchtop  M=Module

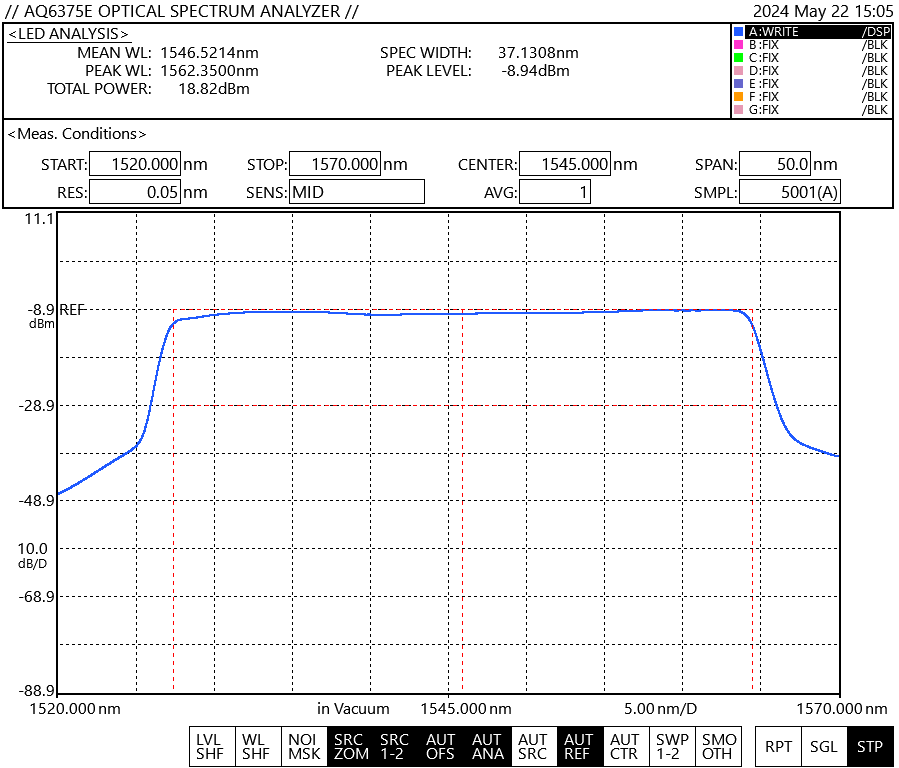

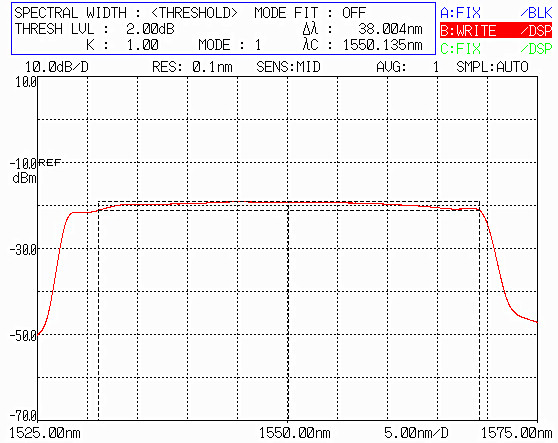

    C-Band ASE Broadband Source Spectrum (100mW)

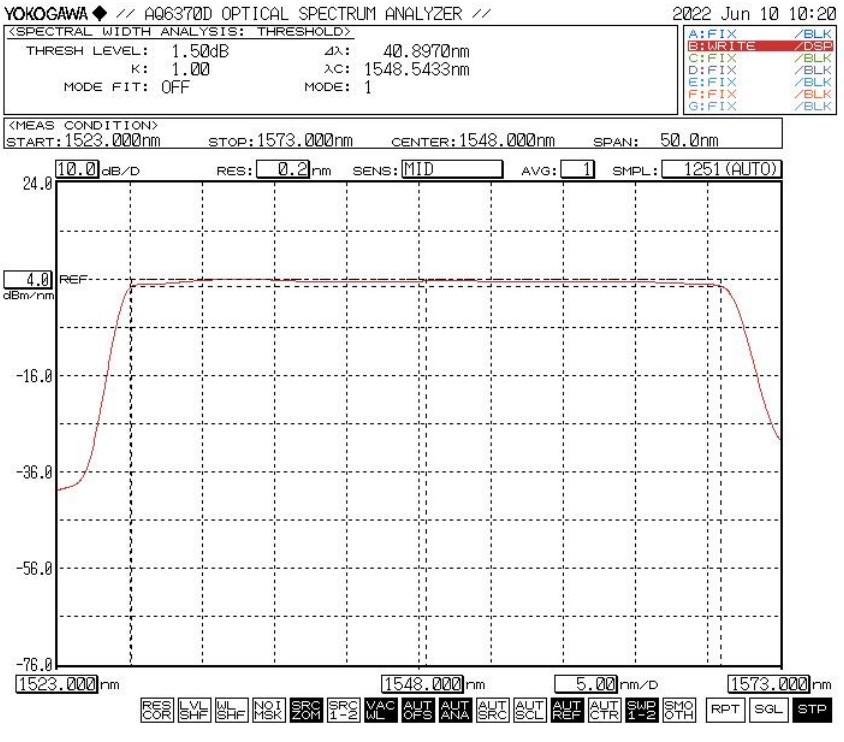

    C-Band ASE Broadband Source Spectrum (500mW)
