    • 780nm AR-coated fiber optic patch cord

    Fiber patch cords (also known as fiber connectors) are optical cables with connector plugs installed on both ends to achieve active connection of optical paths. Both ends of our fiber patch cords are high-quality, narrow-pin ceramic FC/AFC connectors. The fiber end faces of this fiber patch cord are coated with anti-reflection coating. Produced by our equipment, each patch cord is individually tested at the test wavelength listed on the specification label to ensure the extinction ratio and low back reflection (return loss) when connecting fibers to fibers.

    产品特点Fiber endface AR coating、 Single AR coating、 Typical 60 dB return loss、 Ceramic ferrule, angled 8° (APC)、 Ø3 mm outer protective layer、 Custom patch cords available

    产品货号H80020064

    应用领域Fiber optic communication system、 Fiber optic access network、 Fiber optic data transmission、 Fiber optic CATV、 Local area network (LAN)、 Test equipment、 Fiber optic sensor

    产品单价联系客服询价

    到货日期请咨询客服获得货期

    产品库存请咨询客服

    Sherry

    电话：16628709332

    邮箱：moli@microphotons.com

    加入询价单 在线咨询

    收藏

    相关产品

    主要参数
  • 核心参数

  • 尺寸图

    • Parameter:

    PN#

    MPC-TAR-80-SM-780-2-1-FC/APC

    Test wavelength

    780nm

    Operating wavelength

    770 - 1100nm

    Cut-off wavelength

    720 ± 50nm

    Fiber type

    HI780

    Coating material

    Fiber end face (with ceramic ferrule)

    AR coating type

    AR coating

    Transmittance requirement

    0.1-99.9%

    Maximum insertion loss

    0.5 dB

    Mode field diameter

    4.6±0.5um@780nm

    Numerical aperture

    0.14

    Return loss

    60 dB Typical

    Fiber connector

    FC/APC-FC/APC（FC/PC-FC/PC，FC/APC-FC/PC）optional

    Fiber length

    1M(Length can be customized)

    Loose tube type

    900um/2mm/3mmLoose tube optional

    Operating temperature

    0 to 70 ℃

    Storage temperature

    -45 to 85 ℃

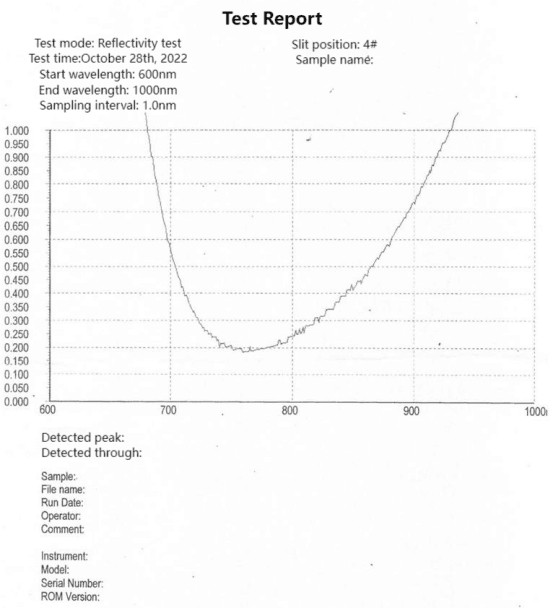

    Anti-reflection film coating curve:
