    • 488nm single mode fiber optic patch cord

    Fiber optic patch cords (also known as fiber optic connectors) are optical cables with connector plugs installed on both ends to achieve active connection of the optical path. Both ends of Idealphotonics' fiber optic patch cords are high-quality, narrow-pin ceramic FC/AFC connectors. Produced by our equipment, each patch cord is individually tested at the test wavelength listed in the specification label to ensure the extinction ratio and low back reflection (return loss) when connecting fibers. These patch cords are in stock and have high-quality polishing to ensure a typical return loss of more than 60 dB.

    产品特点Typical 60 dB return loss、 Ceramic ferrule, angled 8° (APC)、 Ø3 mm outer shield、 Custom patch cords available

    产品货号A80150534

    应用领域Fiber optic communication system、 Fiber optic access network、 Fiber optic data transmission、 Fiber optic CATV、 Local area network (LAN)、 Test equipment、 Fiber optic sensor

    产品单价联系客服询价

    到货日期请咨询客服获得货期

    产品库存请咨询客服

    Sherry

    电话：16628709332

    邮箱：moli@microphotons.com

    加入询价单 在线咨询

    收藏

    相关产品

    主要参数
  • 核心参数

  • 尺寸图

    • Parameters

    PN#

    SM-405-2-1-FC/APC

    SM-633-2-1-FC/APC

    SM-780-2-1-FC/APC

    SM-1060-2-1-FC/APC

    SM-1310/1550-2-1-FC/APC

    SM-1950-2-1-FC/APC

    Test wavelength

    405 nm

    630nm

    780nm

    1060nm

    1550nm

    1950nm

    Operating wavelength

    400 - 680nm

    620 - 850nm

    770 - 1100nm

    970 - 1550nm

    1270 - 1625nm

    1750 - 2100nm

    Cut-off wavelength

    380 ± 20nm

    570 ± 50nm

    720 ± 50nm

    920 ± 50nm

    1200 ± 70nm

    1620 ± 80nm

    Fiber type

    SM 405

    SM630nm

    HI780

    HI1060

    SMF - 28e

    SM1950

    Maximum insertion loss

    1.5 dB

    0.5 dB

    0.5 dB

    0.5dB

    0.5dB

    0.5dB

    Mode field diameter

    3.6±0.5um @405nm

    4.0 ±0.4um @630nm

    4.6±0.5@780nm

    6.2±0.3 @1060 nm

    10.4±0.5 @1550nm

    8.6 um @1950 nm

    Numberical aperture

    0.12

    0.13

    0.14

    0.14

    0.14

    0.14

    Return loss

    60 dB Typical

    Fiber connertor

    FC/APC-FC/APC（FC/FC-FC/FC，FC/APC-FC/FC）optional

    Fiber length

    1m (length can be customized)

    Loose tube type

    900um/2mm/3mm loose tube optional

    Operating temperature

    0 to 70 ℃

    Storage temperature

    -45 to 85 ℃



    Taking 1550nm single-mode fiber jumper as an example, the experimental test data is as follows:

    1. End face test



    2. LI Testing

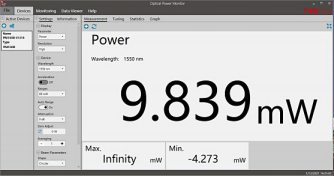

    Laser power before access

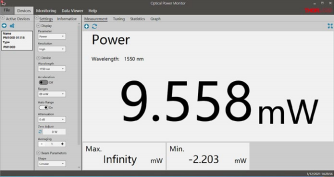

    Power after access to fiber jumper




    PN# and ordering

    E.g. ：SM-633-2-1-FC/APC

    SM: Single mode

    633: 633nm

    2: 2mmloose tube

    1: 1m

    FC/APC: FC/APC connector
