    • 1550nm band continuous high speed scanning wavelength laser source 20mW FC/APC

    The scanning wavelength laser uses a dedicated VCSEL laser chip, which can achieve high-speed scanning of laser wavelength and single-mode fiber coupled output. Professionally designed drive and temperature control circuit control ensures stable operation of the laser, and can provide benchtop or modular packaging.

    产品特点High output power、 Wide spectrum scanning、 High-speed scanning

    产品货号A80130011

    应用领域FBG fiber sensing、 Fiber laser、 Optical communication

    产品单价联系客服询价

    到货日期请咨询客服获得货期

    产品库存请咨询客服

    Daisy

    电话：18602170419

    邮箱：moli@microphotons.com

    加入询价单 在线咨询

    收藏

    相关产品

    主要参数
  • 核心参数

  • 尺寸图

    • Parameter

    Parameter

    Unit

    Typical

    Notes

    Wavelength scanning range

    nm

    1543~1551

    ≥8nm

    Scanning frequency

    kHz

    0.1~100

    adjustable

    Spectral line width

    MHz

    ≤100

    Equivalence ≤0.8pm

    Minimum scanning step length

    pm

    8

    1GHz

    Sideband suppression ratio

    dB

    >50


    Output power

    mW

    ≥20


    Short-term stability (15 minutes)

    dB

    ≤ ±0.02

    Single wavelength full temperature

    Long-term stability (8 hours)

    dB

    ≤ ±0.05

    Single wavelength full temperature

    Fiber pigtail type

    -

    SMF-28 or PM1550


    Fiber pigtail connector type

    -

    FC/APC




    Electrical and environmental parameters

    Benchtop

    Module

    Control mode

    Button

    RS232 Serial communication

    Communication interface

    Optional

    DB9 Female

    Power supply

    100~240VAC,<30W

    5V DC,<15W

    Dimensions

    260(W)×280(D)×120(H)mm

    125(W)×150(D)×20(H)mm

    Synchronous trigger pulse

    TTL，internal trigger

    Operating temperature range

    -5~+35°C

    Operating humidity range

    0~70%

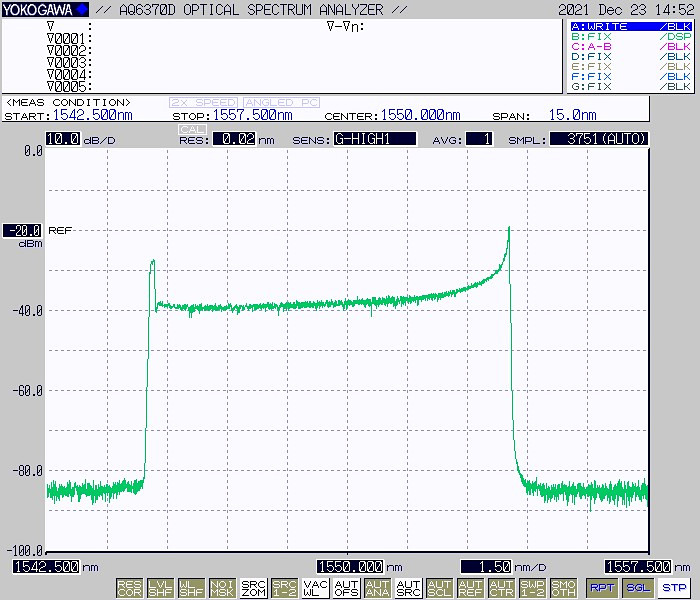

    Spectrum @100kHz scan

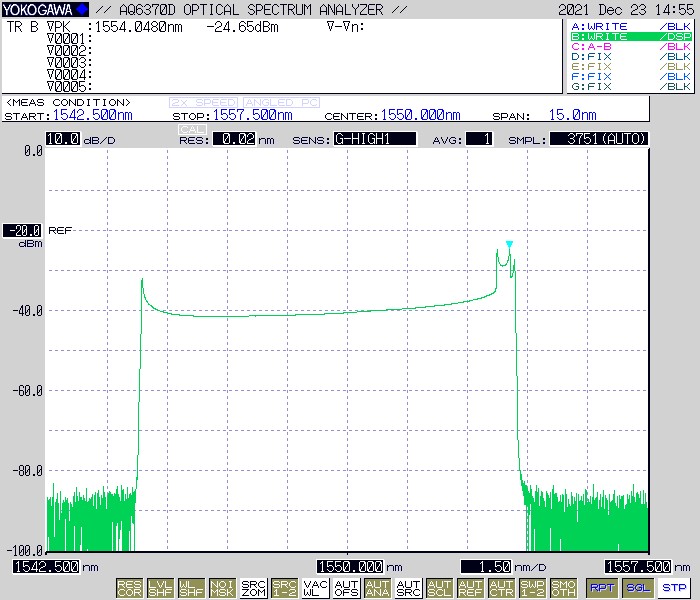

    Spectrum @200kHz scan



    Ordering information

    Ordering information / PN#

    SFL

    Operating wavelength(nm)

    Output power(mW)

    Output pigtail type

    Package method


    1550

    20

    SM=Single mode fiber；

    PM=Polarization fiber

    B=Benchtop；M=Module
