    • 1550nm mini fiber optic circulator

    The mini optical fiber circulator from Idealphotonics is a compact structure designed specifically for applications with limited space. In addition to its smaller size, its foldable design ensures that all fiber ports are located on the same side, minimizing fiber occupation space. It is a compact, high-performance component with high isolation, low insertion loss, low PDL, and excellent stability and reliability. The fiber circulator directs the incoming signal from port 1 to port 2, and from port 2 to port 3.

    产品特点Small package size、 All fiber ports on the same side、 High channel isolation、 No epoxy resin、 RoHS compliant

    产品货号A80150484

    应用领域Dispersion compensation、 Bidirectional cutoff system、 Add/drop multiplexing system、 Miniature optical amplification system、 Miniature OTDR system、 Fiber optic sensing、 Test instruments

    产品单价联系客服询价

    到货日期请咨询客服获得货期

    产品库存请咨询客服

    Sherry

    电话：16628709332

    邮箱：moli@microphotons.com

    加入询价单 在线咨询

    收藏

    相关产品

    主要参数
  • 核心参数

  • 尺寸图

    • Technical Parameters

    Parameters

    Unit

    Value

    Central wavelength

    nm

    1310nm/C band/L Band

    Operating bandwidth

    nm

    +/-20

    Maximum insertion loss

    dB

    1.4

    Isolation

    dB

    30

    Return loss

    dB

    40

    Maximum PDL

    dB

    0.1

    Maximum optical power

    mW

    500

    Fiber type

    -

    SMF-28E

    Operating temperature

    ℃

    -5 ~ +50

    Storage temperature

    ℃

    -40 ~ +85

    Size

    mm

    Ø 3mmxL25mm

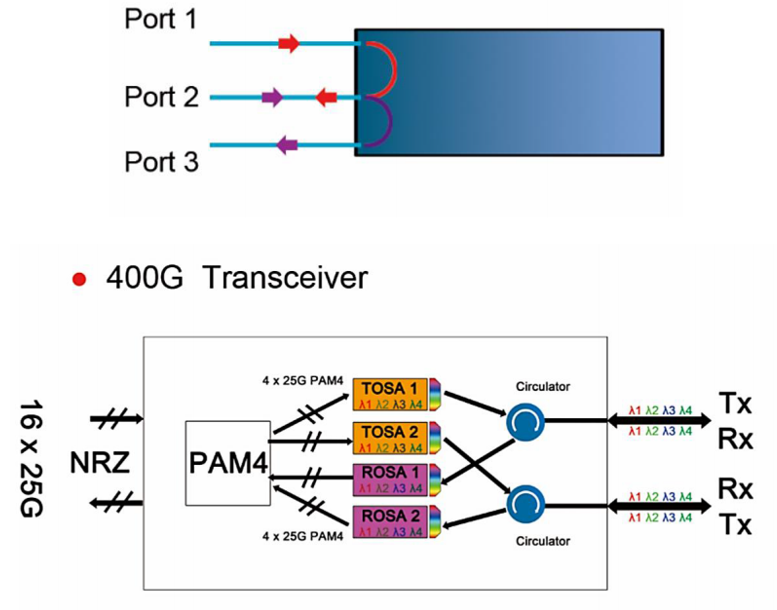

    Optical functional diagram

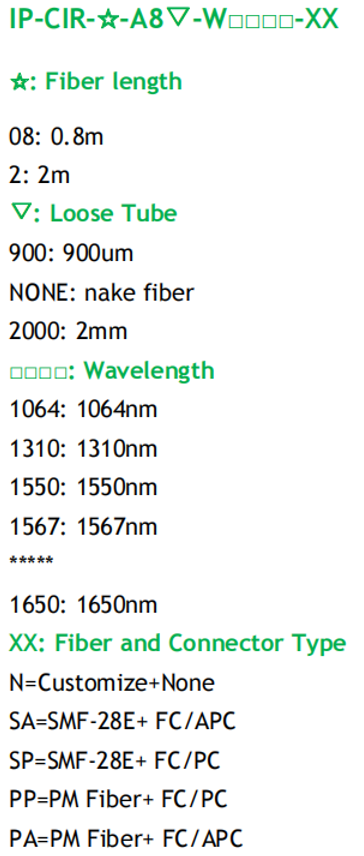

    Ordering info
