2μm Fiber Coupler 2x

2μm Fiber Coupler 2x

The FC series fiber optic couplers are based on Agiltron's fusion double-cone taper technology and compact packaging structure. They feature excellent uniformity, low excess loss, and extremely low polarization sensitivity. This device is ideal for splitting or combining light with outstanding performance across a wide wavelength range.

Product features：Ultra-low loss 、 Low polarization sensitivity 、 High reliability and stability 、 Ultra-low cost 、 No impact on wavelength

Part Number：--

Application area：Optical communication 、 Cable television 、 Local area networks (LAN) 、 Fiber optic instruments

Add to Cart Consult Favorite

Related Products

Main parameters
General Parameters
Optional Configurations
Downloads

Main parameters

Core parameters

Dimension Drawing

General Parameters

Parameters

FC Series	Parameter		Unit
Coupling Ratio	1/99 to 50/50
Bandwidth	±20		nm
Additional Loss	<0.1		dB
Insertion Loss	Output 1	Output 2
Split Ratio: 50/50	<3.6	<3.6	dB
Split Ratio: 40/60	<4.8	<2.8	dB
Split Ratio: 30/70	<6.1	<2.0	dB
Split Ratio: 20/80	<8.0	<1.3	dB
Split Ratio: 10/90	<12.0	<0.8	dB
Split Ratio: 5/95	<18.4	<0.5	dB
Split Ratio: 1/99	<22	<0.3	dB
Consistency (50:50)	<1		dB
Polarization Dependent Loss	<0.15		dB
Directionality	>55		dB
Return Loss	>55		dB
Maximum Operating Power	<5		W
Operating Temperature	-40~75		℃
Storage Temperature	-40~85		℃
Dimensions	250um: (φ)3x(L)60 900um: (φ)3x(L)77		mm

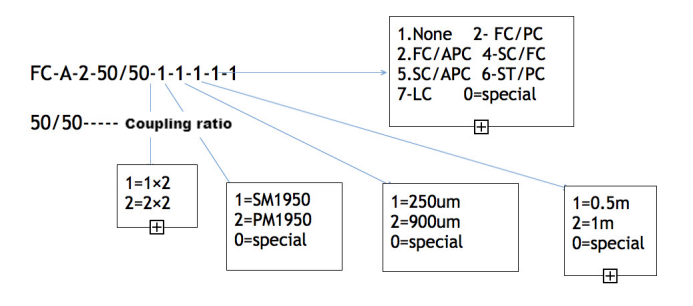

Ordering Info

Optional Configurations

Downloads

2μm Fiber Coupler 2x.pdf
