首页 Light Sources Coherent Sources Single frequency laser 1550nm narrow linewidth single frequency laser module 40mW 1550nm narrow linewidth single-frequency laser module ＜20kHz polarization maintaining

    • 1550nm narrow linewidth single-frequency laser module ＜20kHz polarization maintaining

    Idealphotonics’ narrow linewidth semiconductor laser module has the characteristics of ultra-low RIN noise and ultra-narrow linewidth, and is currently widely used in automotive lidar and fiber optic sensor detection systems.

    产品特点Linewidth: ＜20kHz、 Optical power: 16dBm、 RIN noise: -165dBc/Hz @100kHz

    产品货号B80040006

    应用领域

    产品单价联系客服询价

    到货日期请咨询客服获得货期

    产品库存请咨询客服

    Daisy

    电话：18602170419

    邮箱：moli@microphotons.com

    加入询价单 在线咨询

    收藏

    相关产品

    主要参数
  • 核心参数

  • 尺寸图

    • Specifications

    Parameter

    Min.

    Typical

    Max.

    Unit

    Notes

    wavelength

    1530

    1550

    1570

    Nm

    Customizable

    Operating temperature

    -10


    70

    ℃


    Output power


    16

    17

    dBm

    Customizable

    RIN noise


    -165

    -163

    dBc/Hz   @100kHz


    Operating current


    400

    2000

    mA


    Operating voltage

    4.75

    5

    5.25

    V


    Lorentz linewidth  1


    10

    20

    KHz

    Customizable

    Side Mode Suppression Ratio


    50


    dB


    FM range


    3

    5

    GHz


    Modulation rate

    1

    100

    200

    KHz


    FM linearity


    1%




    Output method

    Optical fiber output（default）

    Connector type

    FC/APC（default）

    Fiber type

    SM/PM

    Note: The line width test solution is a delayed self-heterodyne beat frequency test




    Pin defination




    PIN#

    Name

    Function / specifictaion

    1

    Vcc

    Input power 5V/3A, low noise

    2

    Tx(output)

    Data output, RS232/3.3 to5V TTL232 (default)

    3

    Rx(input)

    Data input, RS232/3.3 to5V TTL232 (default)

    4

    Gnd

    Ground

    5

    Gnd

    Ground

    6

    Vcc

    Input power 5V/3A, low noise

    7

    Mod+(input)

    N/A

    8

    Mod-(input)

    N/A

    9

    Enable(input)

    Laser output enable, low level on (default on)




    Ordering information

    PHX- C-T-M-C32 - ①②-③-④--------- 000

    Power：Unit  dBm

    Coding linewidth   Coding connector type

    2     100 KHz      0    SMF/FZ-APC

    4      20KHz       1    PM/FC-APC

    6       5KHz

    8      1KHz





    The following was filled out by AOL Labs staff:

    Test date

    2021.11.19

    Test engineer

    Yang Guang, Dai Jiahao, Chen Hongyu

    Test production

    1550nm narrow linewidth laser

    Review

    Wang Xiuxiang

    Experimental purpose

    Test power stability, line width and wavelength stability

    Experimental equipment

    Power meter, wavelength meter, 1550nm laser

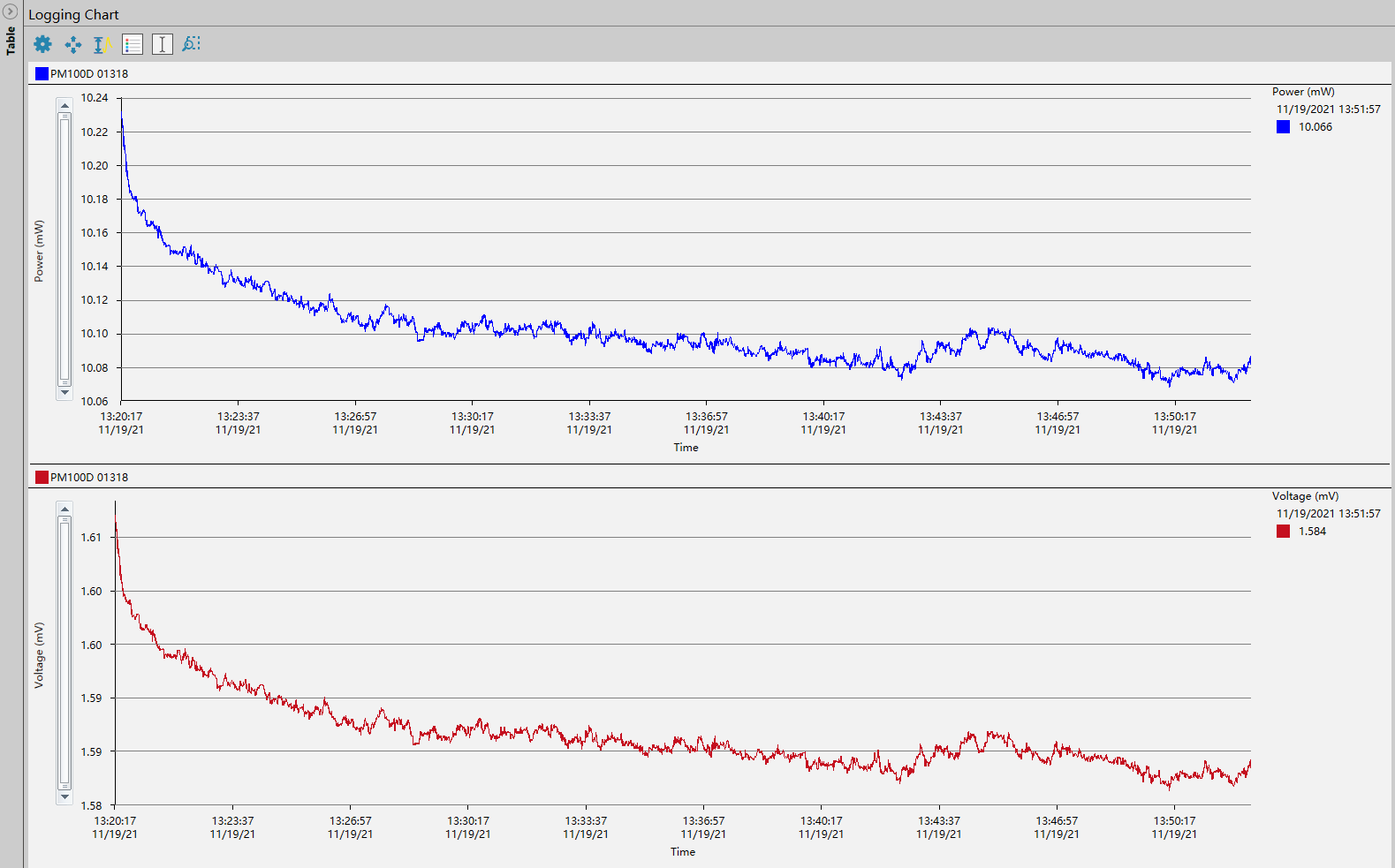

    Power stability

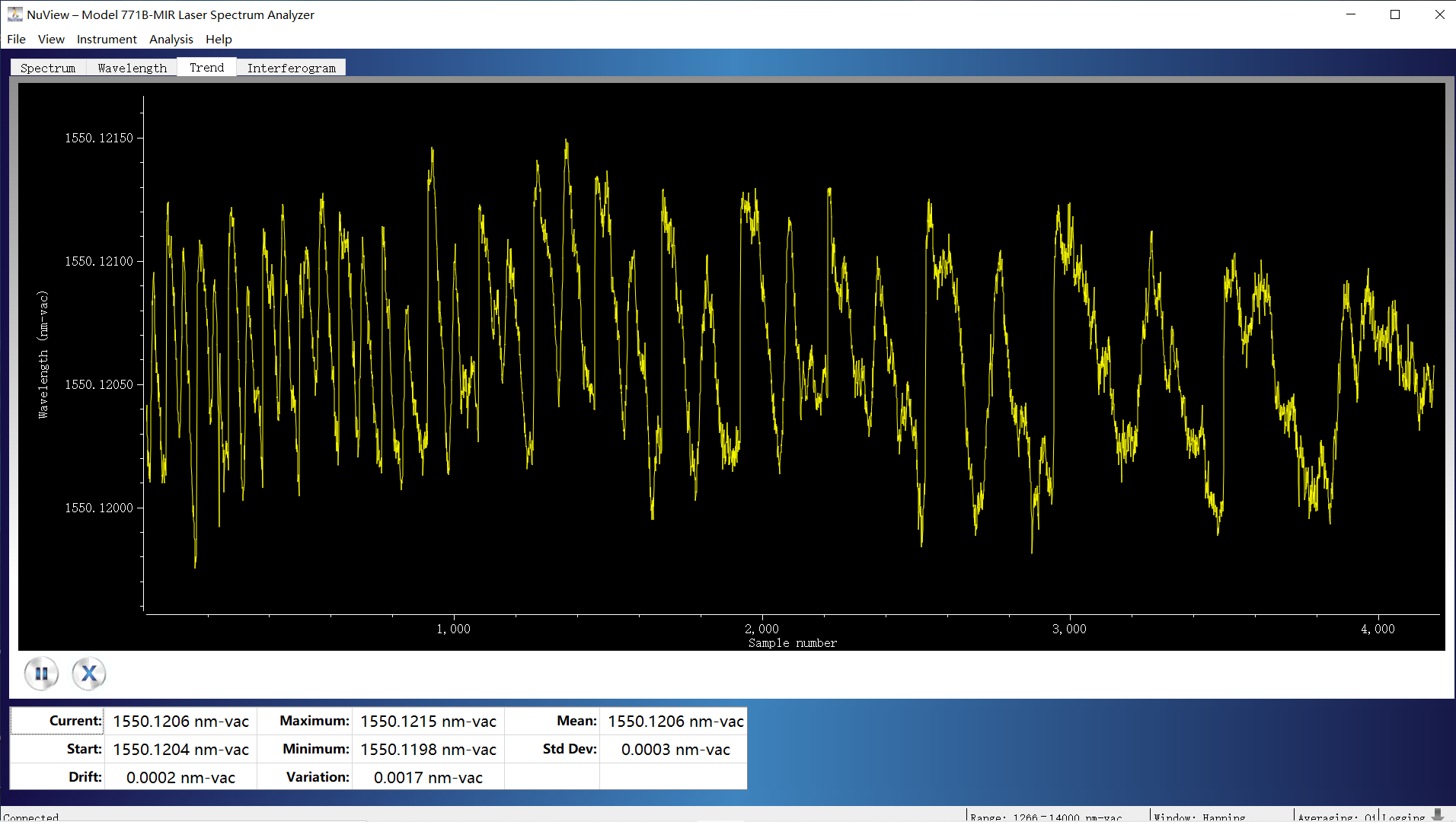

    Wavelength stability

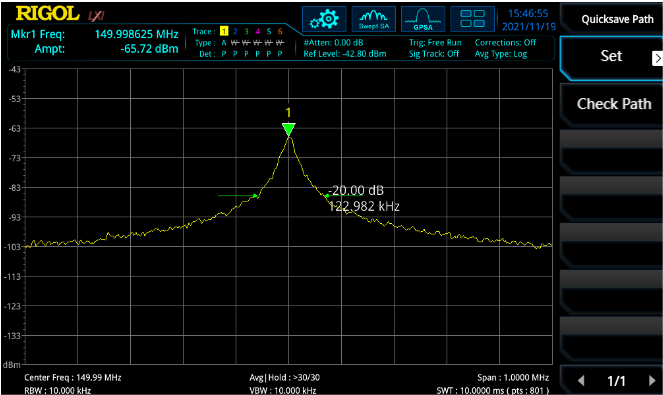

    Linewidth
