wavelength

1530

1550

1570

Nm

Customizable

Operating temperature

-10

70

℃

Output power

16

17

dBm

Customizable

RIN noise

-165

-163

dBc/Hz   @100kHz

Operating current

400

2000

mA

Operating voltage

4.75

5

5.25

V

Lorentz linewidth  ¹

2

5

KHz

Customizable

Side Mode Suppression Ratio

50

dB

Output method

Optical fiber output（default）

Connector type

FC/APC（default）

Fiber type

SM/PM

Output Power

mW

10

66.6

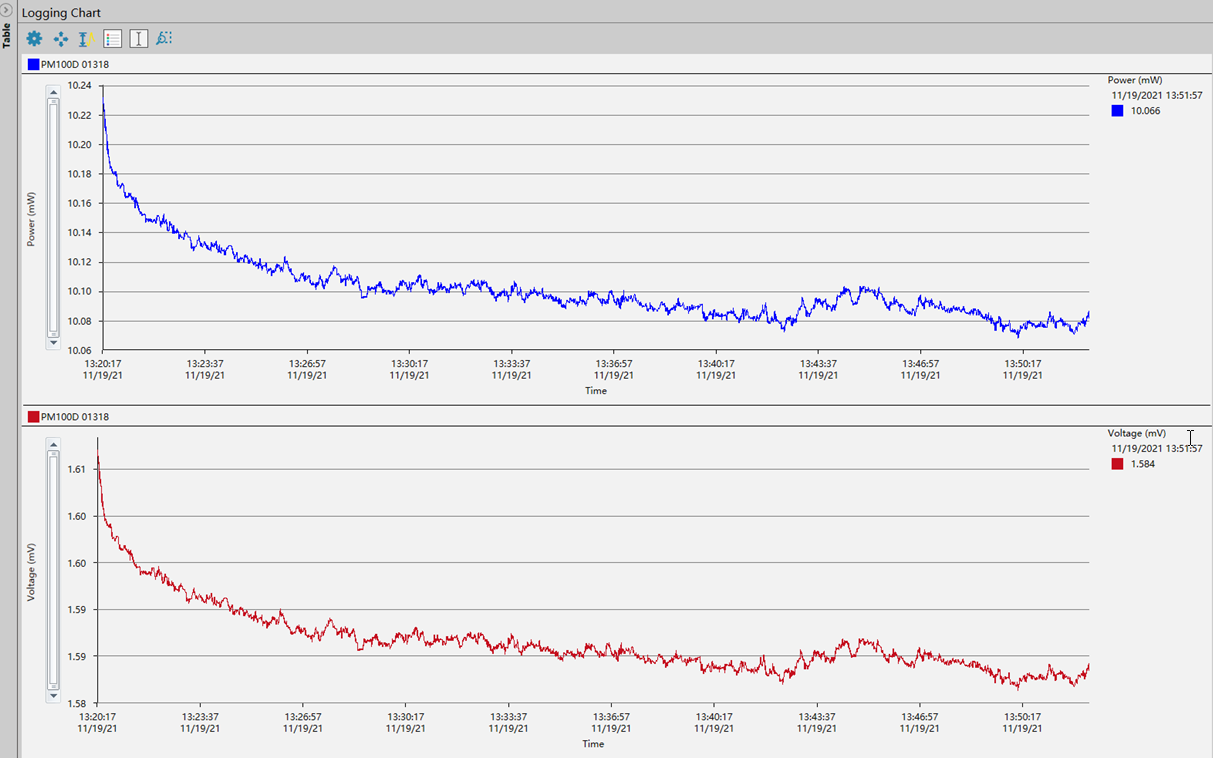

Power Stability

%

Refer to the table below

Center Wavelength (ITU-T DWDM)

nm

1530

1565

1550.218

LD Current

mA

350

281

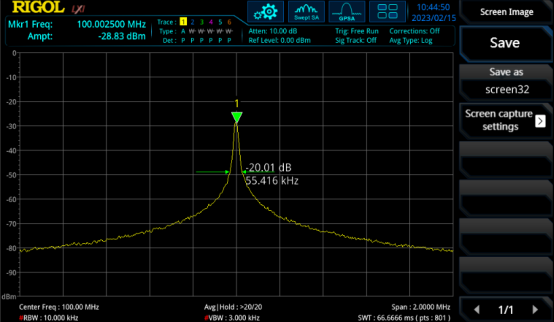

Linewidth

kHz

A:<3

2.4

Relative Intensity Noise

dBc/Hz

SMSR

dB

50

70.95

Polarization Extinction Ratio

dB

20

Input Current

A

3

0.51

Voltage

V

4.75

5

5.25

Fiber Type and Connector

NA

PM1550     FC/APC

Test Tem

℃

25

Dimensions

mm

100 ×57 × 12

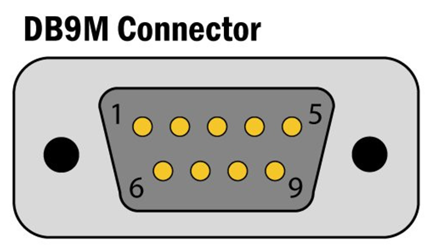

5

Vcc

4.75Min,  5.25V  Max,  3A,  Low  noise

4

Tx(output)

Data  output,  RS232/3.3 to5V TTL232     (Default)

3

Rx(input)

Data  input,  RS232/3.3 to5V    TTL232(Default)

2

/

Amplitude  modulation(customer)

1

Gnd

Gnd

9

Ready  (output)

Ready  output, Active  low,  needs    external  pull  up  Ready output, low level is valid, requires external pull-up

8

Mod +(input)

Modulation  input  +

7

Mod-(input)

Modulation  input  -

6

Enable(input)

Active  low  (Default)
