    • 515nm Picosecond Pulsed Fiber Laser

    The Y-Fiber series ultrafast laser uses high-performance rare earth optical fiber as the working medium, combined with full polarization-maintaining mode locking and frequency doubling technology to achieve stable output of picosecond pulse lasers in the 515/532nm band. It can be fully self-started and work stably for a long time. It has the characteristics of narrow laser pulses and high pulse peak optical power. It can be used for scientific research in the fields of fluorescence lifetime microscopy and nonlinear optics. * Customization of parameters such as pulse width, power, repetition rate, etc. is accepted.

    产品特点Full polarization-preserving optical path、 Self-starting and maintenance-free、 Green light picosecond

    产品货号A80080091

    应用领域Fluorescence lifetime microscopy、 OPA pump laser、 Seed laser

    产品单价联系客服询价

    到货日期请咨询客服获得货期

    产品库存请咨询客服

    Daisy

    电话：18602170419

    邮箱：moli@microphotons.com

    加入询价单 在线咨询

    收藏

    相关产品

    主要参数
  • 核心参数

  • 尺寸图

    • Parameter

    Parameter

    Unit

    Typical

    Notes

    Central wavelength

    nm

    515/532

    Customizable

    Spectral width

    nm

    0.3

    Customizable

    Pulse width

    ps

    10/20/50/100

    Customizable

    Output power

    mW

    1~200

    Customizable

    Power instability

    -

    < ±2%

    25℃, 5 minutes after power on

    Repetition frequency

    MHz

    15~100

    Customizable

    Single pulse energy

    nJ

    >0.5


    Mode-locking stabilization time after power-on

    s

    <20


    Laser polarization state

    -

    Linear polarization


    Laser output mode

    -

    Spatial output


    Warm-up time

    min

    <1




    Electrical and environmental parameters

    Benchtop

    Module

    Control mode

    Button

    Button

    Synchronous electrical signal interface

    SMA

    SMA

    Power supply

    100~240VAC,<30W

    5V DC,<20W

    Dimensions

    330(W)×398(D)×112(H)mm

    200(W)×121(D)×65(H)mm

    Operating temperature

    5 ~ 35°C

    Operating humidity

    0~70%

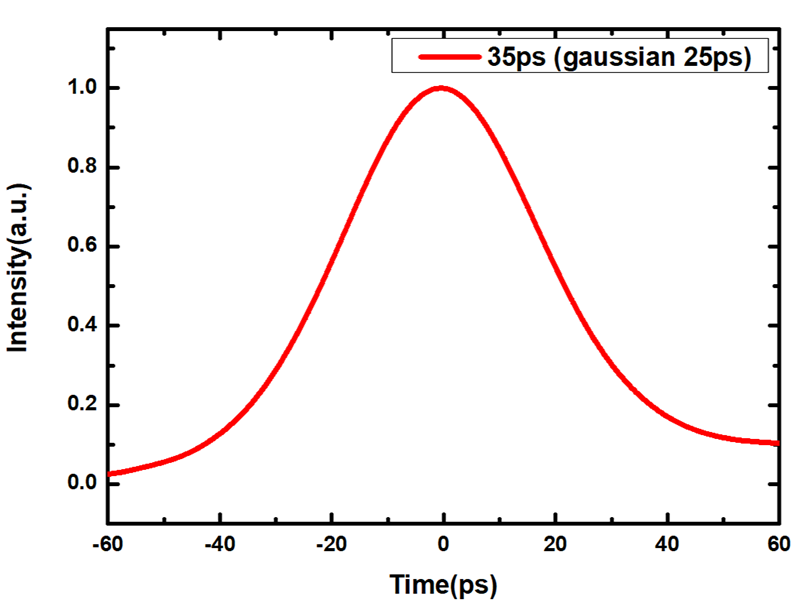

    Pulse autocorrelation line

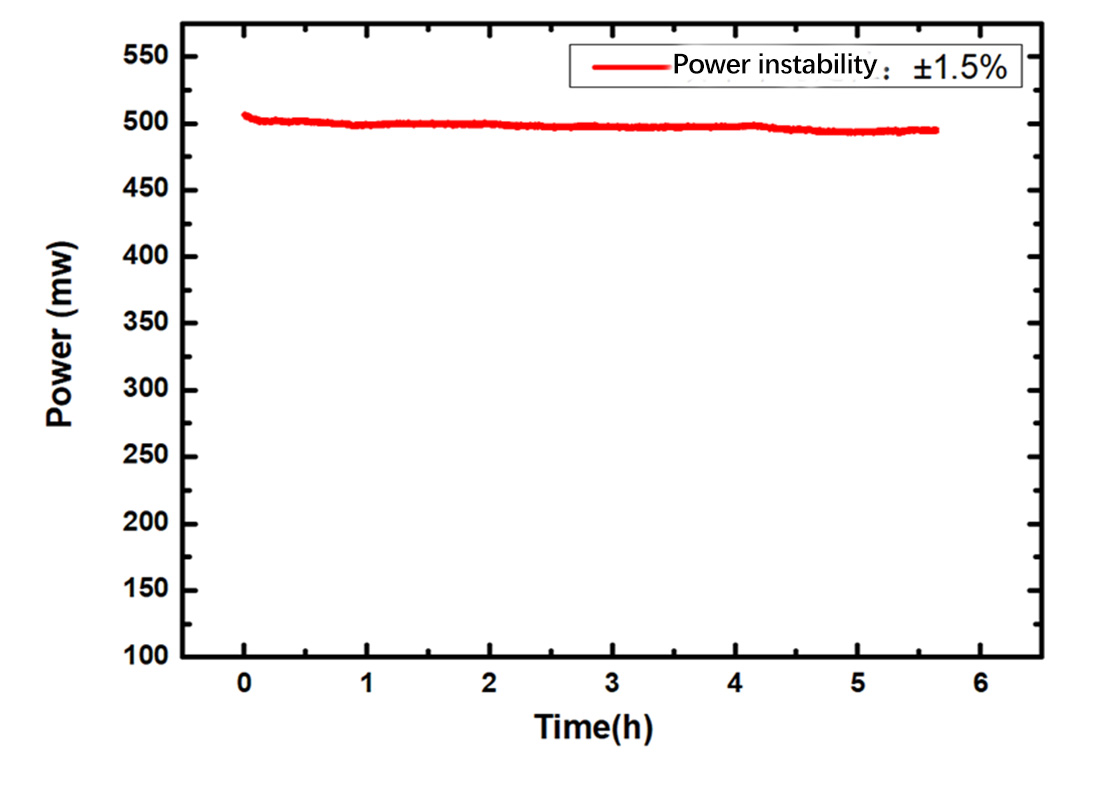

    Power

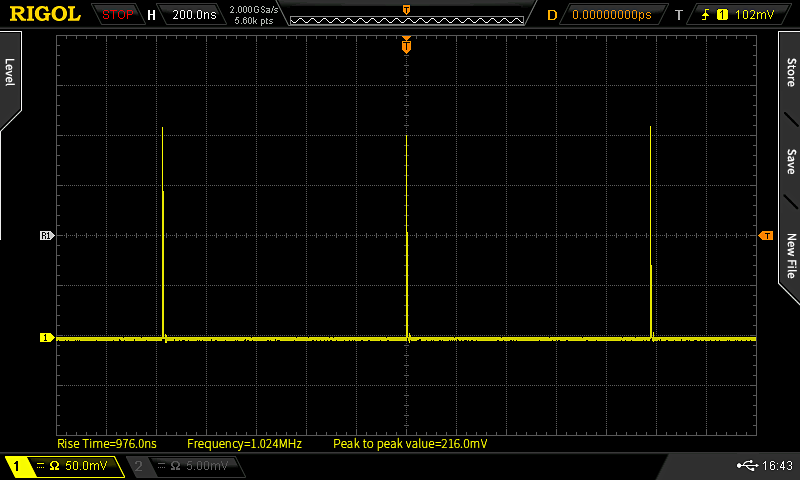

    Pulse sequence

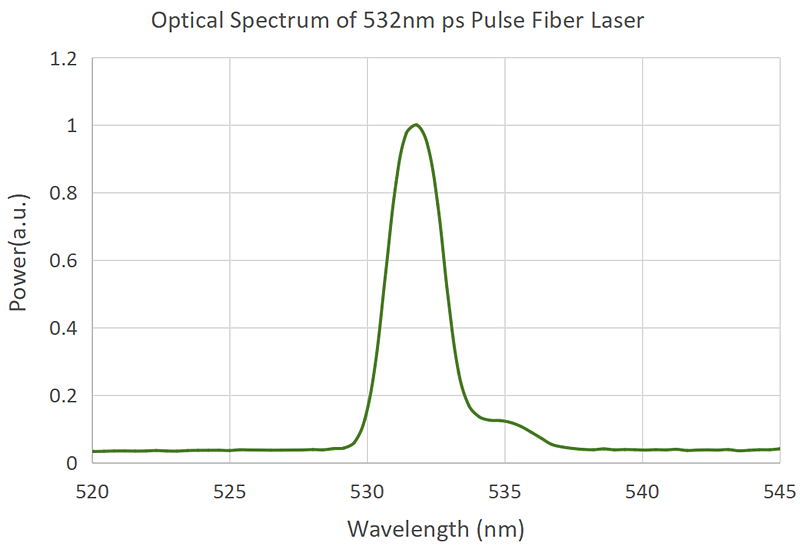

    Spectrum



    Ordering information / PN#

    FSPL

    wavelength(nm)

    Pulse width(fs)

    power (mW)

    Repetition rate(MHz)

    Output method

    Packaging form


    515/532

    10/20/50/100

    10/50/200

    15/50/100

    FS=Free Space Optical

    B=Benchtop

    M=Module
