    • 1064nm ultra-stable picosecond fiber laser

    The 1064 nm ultra-stable picosecond fiber laser developed by Idealphotonics is an excellent seed source solution for industrial ultrafast laser processing applications. The laser has the typical advantages of traditional fiber lasers, namely small size (outer dimensions: 235×120×40 mm), no need for thermal management, and high output beam quality (single-mode output). The spectral center wavelength of the output pulse of this ultrafast laser is 1064 nm, the repetition frequency is optional at 20-30 MHz, the pulse width can be less than 10 ps, ​​the spectral width is <0.5 nm, and the Max. pulse energy is 3 nJ. Due to the use of special nonlinear technology to achieve the equivalent saturable absorber effect, the output pulse not only has high long-term stability, but also can withstand high and low temperature working environments of 0-45°.

    产品特点Customizable wavelength、 High peak power、 Linear polarization、 High diffraction-limited beam quality、 Stability, high and low temperature resistance, no need for thermal management

    产品货号A80080006

    应用领域Terahertz generation、 Two-photon polymerization、 Two-photon imaging、 Precision measurement

    产品单价联系客服询价

    到货日期请咨询客服获得货期

    产品库存请咨询客服

    Daisy

    电话：18602170419

    邮箱：moli@microphotons.com

    加入询价单 在线咨询

    收藏

    相关产品

    主要参数
  • 核心参数

  • 尺寸图

    • Parameter

    PN#

    PL-UFL-8ps-PA

    YDL-ML-12ps-PA

    Central wavelength

    1064nm

    1064nm

    Pulse width

    ~8ps

    ~12ps

    Pulse energy

    0.3-3nJ

    0.3-3nJ

    Spectral width

    <0.5nm

    <0.5nm

    Repetition rate

    20-30MHz

    20-30MHz

    Beam quality

    M2<1.1, TEM00

    M2< 1.1, TEM00

    Polarization

    Linear polarization, > 100:1

    Linear polarization, > 100:1

    Power stability

    <1% RMS@15h

    <1% RMS@15h

    Pulse start time

    <5s

    <5s

    Power consumption

    5W

    5W

    Operating temperature

    0-45°C

    0-45°C

    Dimensions

    235×120×40mm3

    235×120×40mm3

    Weight

    1kg

    1kg

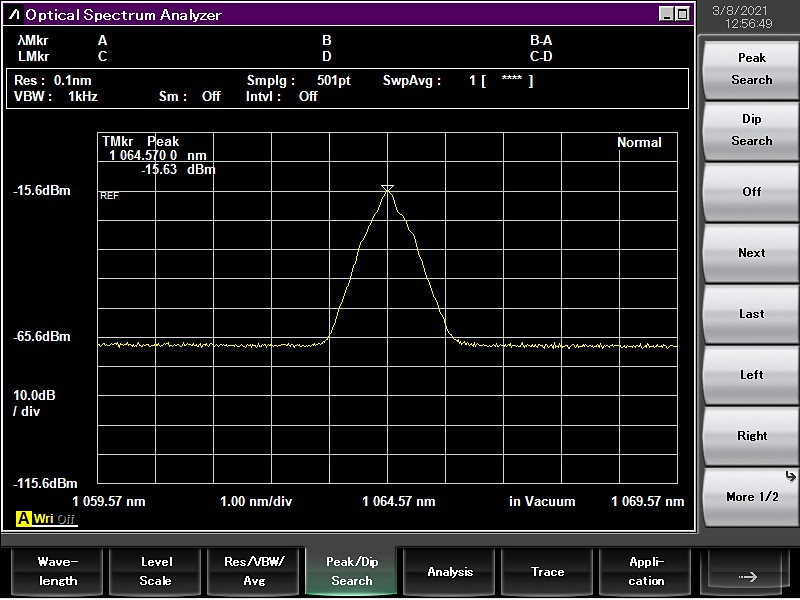

    Spectrum

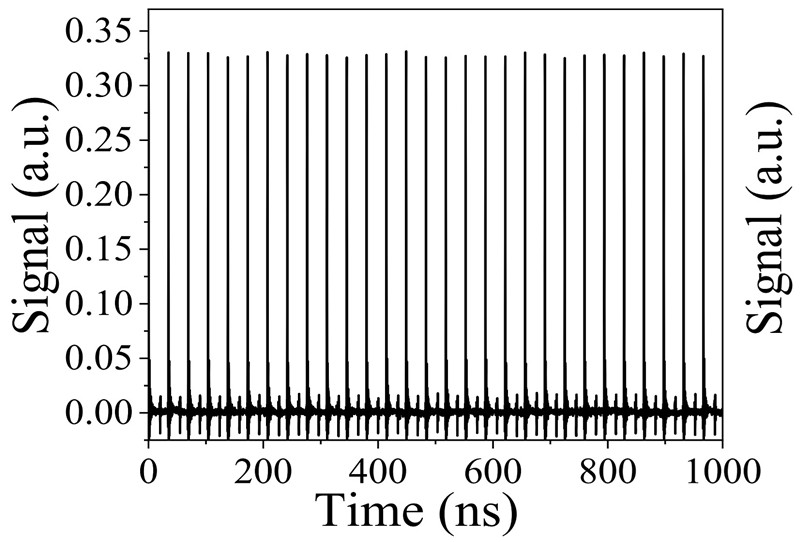

    Typical output pulse timing sequence

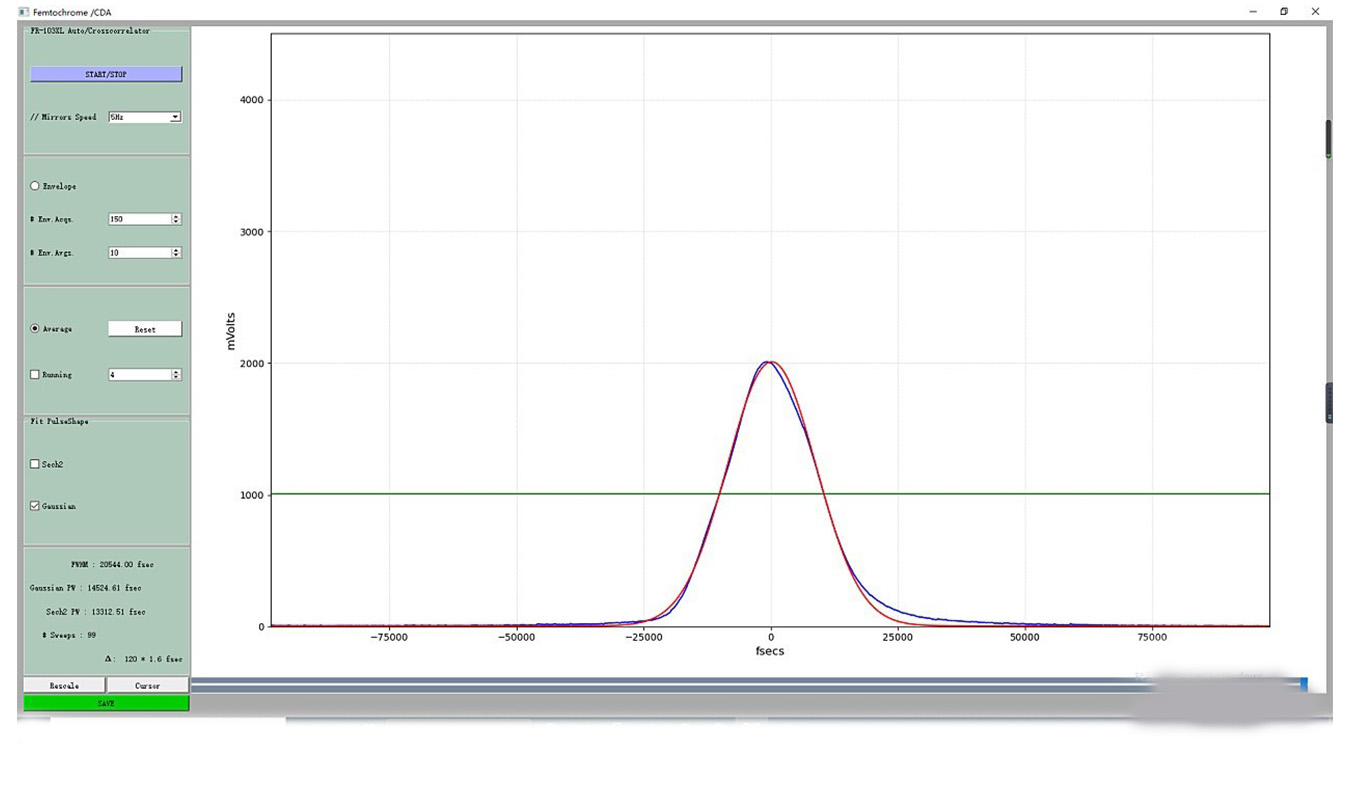

    Pulse width Autocorrelation test

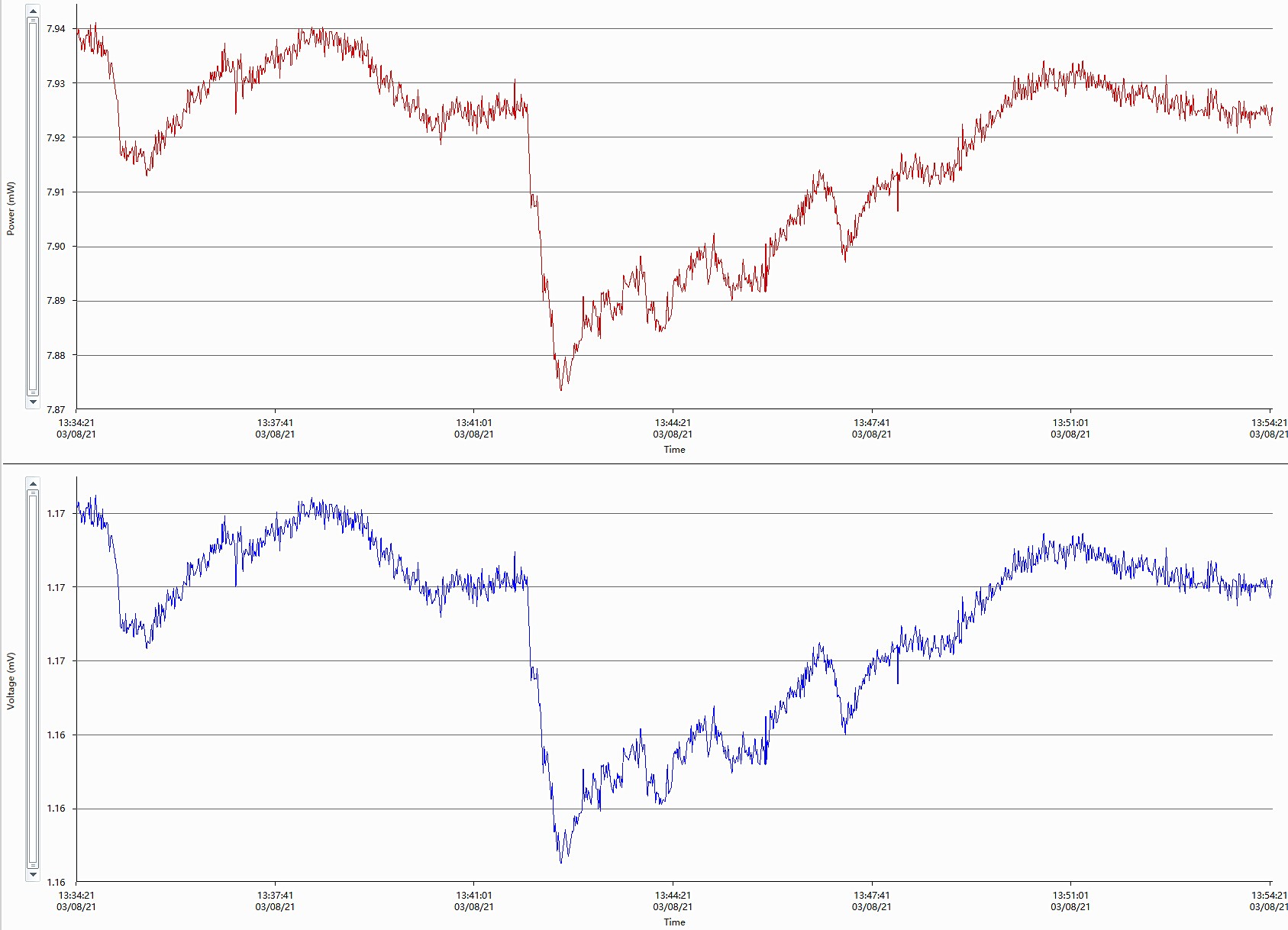

    Power stability






    Ordering Information

    PL-UFL-□□□□-P△-C▽

    □□□□: Average Power

    10:10mw

    P△: Pulse Width

    10:10ps

    100:100ps

    1000-1ns

    C▽: Pigtail and Connector

    SA=HI1060+FC/APC

    PP=PM980+FC/PC

    PL-UFL-10-10-PA Name: 1064nm picosecond ultrafast laser

    Description:

    Center wavelength: 1064nm, average power: 10mw, single pulse energy: 1nJ, pulse width: <15ps, PM980 pigtail, FC/APC connector, repetition rate: 25MHZ



    Testing and usage requirements

    1. Heat dissipation requirements

    This light source consumes a lot of power and must be well cooled, otherwise the light source cannot work well, affecting the stability of the equipment or causing damage.

    2. Repetition frequency and output power requirements

    This product needs to be used at a continuous repetition frequency with uninterrupted trigger pulses.

    3. Power supply use

    Please make sure that the input power is within the voltage and current range required by the product indicators, and the power must not be directly cut off when it is not turned off during use. If there is an accidental power outage, be sure to turn off the power of the product.

    4. Electrostatic protection

    The laser and some chips inside this pulse light source are electrostatic sensitive devices, which are prone to irreversible damage when there is high static electricity outside. The equipment needs to be well grounded and the operator should take electrostatic protection measures.

    5. Fiber end face protection

    Before use, clean the end face of the output fiber with a wipe paper dipped in alcohol to ensure that the output end face is clean, otherwise the output power or stability will decrease easily, and even the fiber end face will burn.

    6. Personal safety

    The pulse light source belongs to Class IV light source. When working, you cannot look directly at the output end of the optical fiber with your naked eyes, and you cannot expose your skin directly to strong light, otherwise it will cause damage.
