    • Diffused laser collimator gas cell 1370nm

    Idealphotonics' collimator gas cell products have mini size, low loss, and low polarization-related loss optical performance, which make them widely used in various fiber optic gas sensing detection systems. At the same time, we can also easily provide customized product types with various working distances, dimensions, etc.

    产品特点Low insertion loss、 No glue in optical path、 Compact structure、 High reliability and stability

    产品货号H80060081

    应用领域Fiber optic devices and modules、 Free space optical path integration、 Optical test system、 Sensor system

    产品单价联系客服询价

    到货日期请咨询客服获得货期

    产品库存请咨询客服

    Daisy

    电话：18602170419

    邮箱：moli@microphotons.com

    加入询价单 在线咨询

    收藏

    相关产品

    主要参数
  • 核心参数

  • 尺寸图

    • Parameter

    parameter

    Unit

    Value

    note

    Operating wavelength

    nm

    1370 1550 or 1650

    Other wavelengths available

    Bandwidth

    nm

    +/-20

    Customizable wider bandwidth range

    Operating distance

    mm

    45 +/-0.1

    Other distances can be customized

    Insertion loss

    dB

    0.5 (Typ.)  0.8 (Max.)


    Return loss

    dB

    >50


    Optical power

    mW

    500


    Polarization-dependent loss

    dB

    ≤0.10


    Operating temperature

    °C

    -5  ~ 70

    Customizable wider temperature range

    Storage temperature

    °C

    -40 ~ 85


    Fiber type

    NA

    Smf-28e+

    Other types of optical fiber can be selected

    Dimensions(ФD x A)

    mm

    Ф5.5× 70

    For 45mm working distance

    *. The above indicators do not include connectors

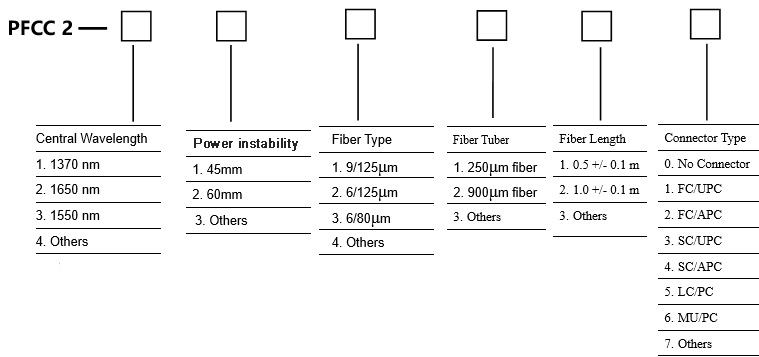

    Ordering Information (e.g. PFCC2-111222)
