    Idealphotonics Thulium-doped Benchtop Single-frequency Single-mode Fiber Amplifier is a power amplifier specially designed for ultra-narrow linewidth, single-frequency signal light (such as fiber lasers based on DFB and DBR principles). This amplifier can amplify low-power optical signals in the kHz range to an output power of up to 50W, and can well maintain the spectral characteristics of the input signal light. Our amplifier uses a high-power, high-performance multi-mode pump source and double-clad fiber amplification technology, and the output power is continuously adjustable. The benchtop fiber amplifier is a complete Turn-Key system with internal microprocessor control. The front panel is equipped with a laser start switch and a power status LCD display, as well as an output power adjustment knob. Benchtop single-mode fiber amplifier (TDFA) can be widely used in scientific research, coherent synthesis, coherent detection sensor systems, etc.

    产品特点High output power、 Low noise figure、 Turn-Key system、 ACC/ALC mode operation

    产品货号B80030008

    应用领域Optical communication、 Test and measurement、 Scientific applications

    产品单价联系客服询价

    到货日期请咨询客服获得货期

    产品库存请咨询客服

    Daisy

    电话：18602170419

    邮箱：moli@microphotons.com

    加入询价单 在线咨询

    收藏

    相关产品

    主要参数
  • 核心参数

  • 尺寸图

    • Parameter

    PN#

    TDFA-1W-FA-PM

    2um fiber amplifier (TDFA)

    Application

    Pre-amplified optical amplifier

    Signal wavelength range

    1900-2050nm

    Maximum output power*1

    >+30dBm />1W

    Gain*2

    >20dB

    Noise factor*2

    <6dB

    Amplification control

    ACC / ALC

    Monitoring items

    Input power, output power, LD current, LD temperature, ambient temperature

    Safety functions

    Remote shutdown interlock

    Remote control interface

    RS232C/IEEE488.2(GP-IB)

    Input/output optical fiber

    PMF(Nufern PM1950)

    Optical fiber connector

    FC/APC

    Minimum extinction ratio

    20dB

    Input signal line width

    Down to 0.1KHZ

    Operating temperature

    0 ~ 40 °C

    Storage temperature

    -10 ~ 60 °C

    Dimensions*3 (mm)

    88 x 430 x 450

    Weight

    5 Kg

    Power consumption

    <30W

    Power supply

    AC 100 ~ 240V (50/60Hz)

     Notes:

    * 1 Input power 1-10dBm@1950

    * 2 Under the premise of ensuring beam quality M2＜1.05, single mode, TEM00 mode

    * 3 Excluding protruding parts

    * TDFA-1W-FA-PM is designed for 1950～2050nm, total power 0dBm input signal to achieve the best gain stability.



    Spectrum

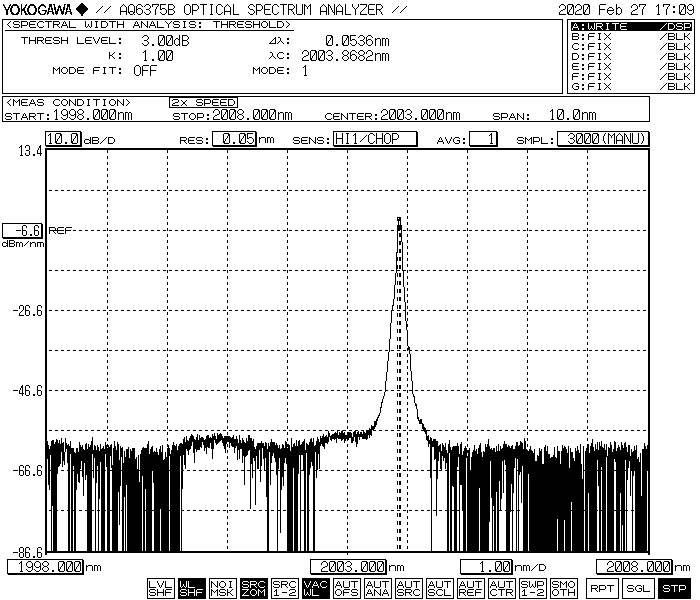

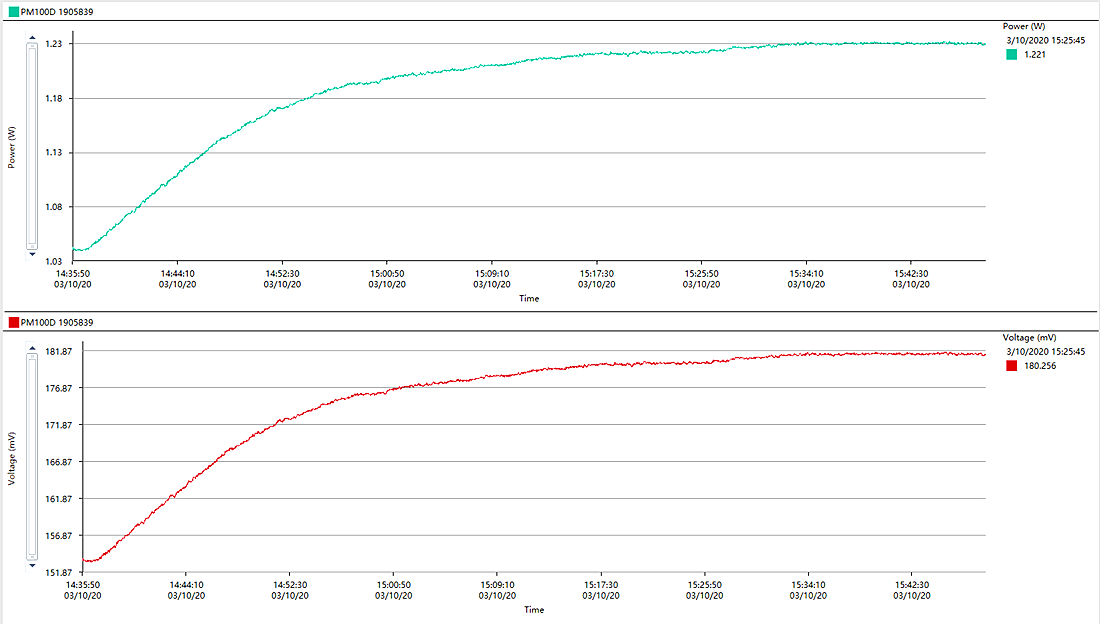

    Power stability curve and modulation linearity test curve





    The following was filled out by AOL Labs staff:


    Test date

    2021.11.9

    Test engineer

    Dai Jiahao

    Test product

    2um continuous fiber amplifier TDFA (XZ2010T264)

    Reviewer

    Wang Xiuxiang

    Purpose of the experiment

    Power stability test, spectrum diagram

    Experimental instruments

    Power meter, spectrometer

     一：2000 nm

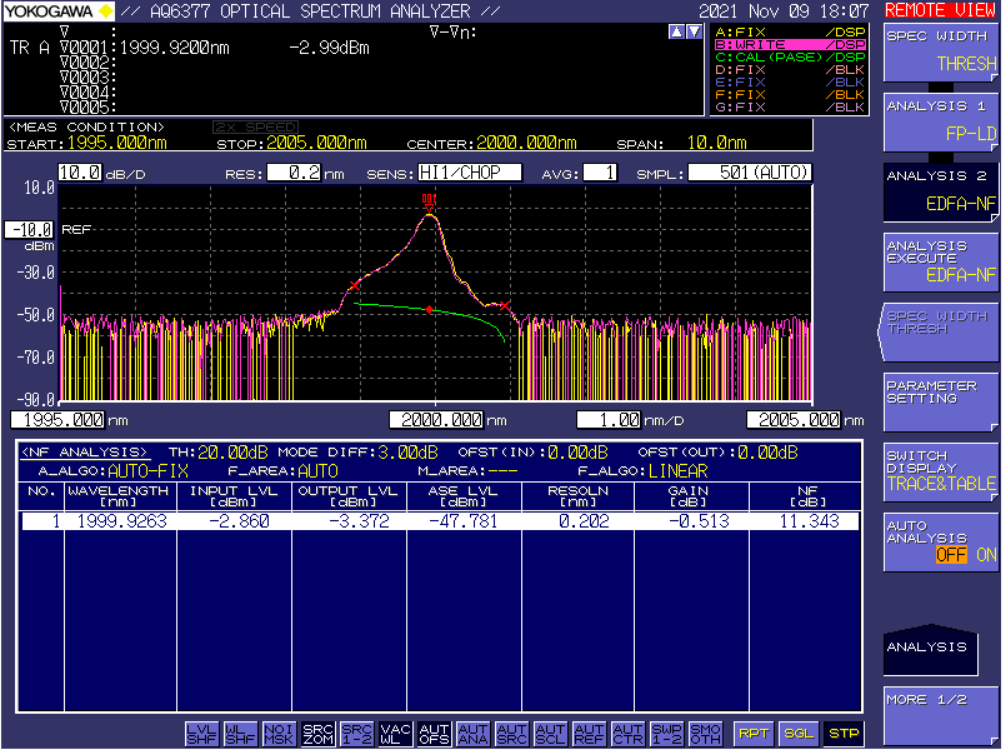

    1. Enlarge the noise test chart


    In the above figure, Trace A (yellow) is the seed light spectrum, and Trace B (purple) is the spectrum after amplification (after passing through a 2um attenuator), and the same below. The amplified noise measured at 2000nm is 11.343dB.

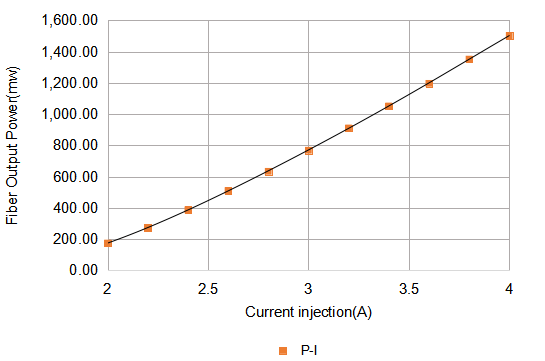

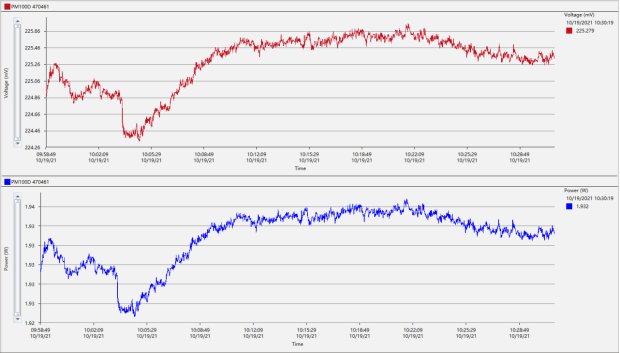

    2. Curve of power

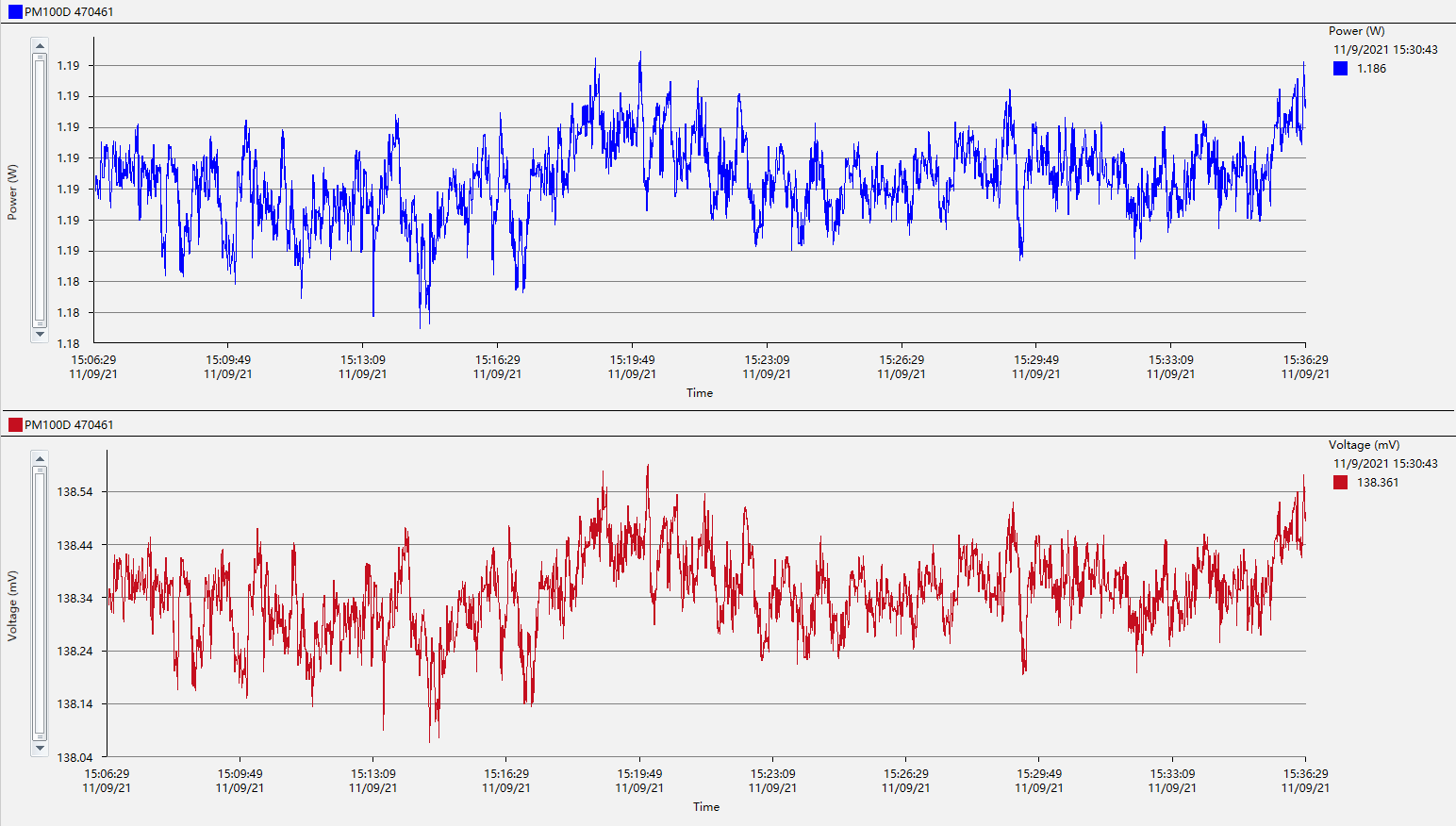

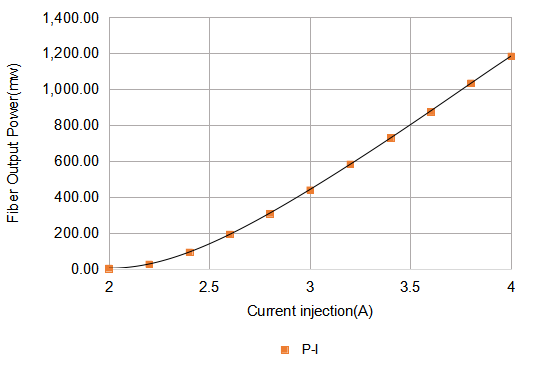

    3. Power stability

    618b2783d1536.png1950 nm

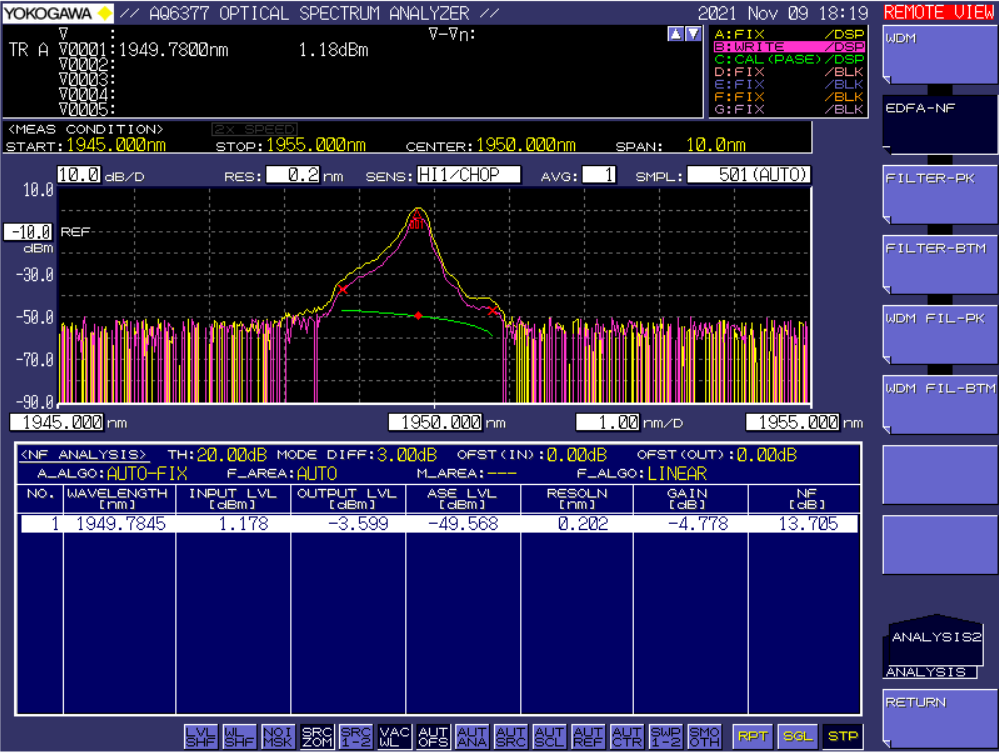

    1.  Amplify the noise test chart




     The amplified noise measured at 1950nm is 13.705dB.

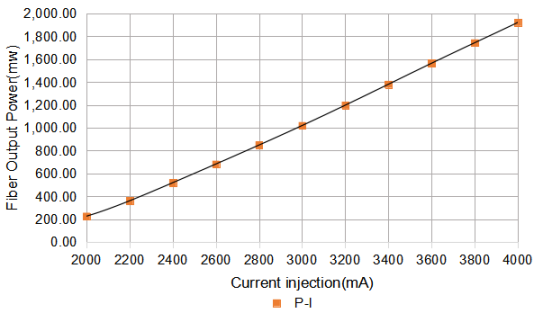

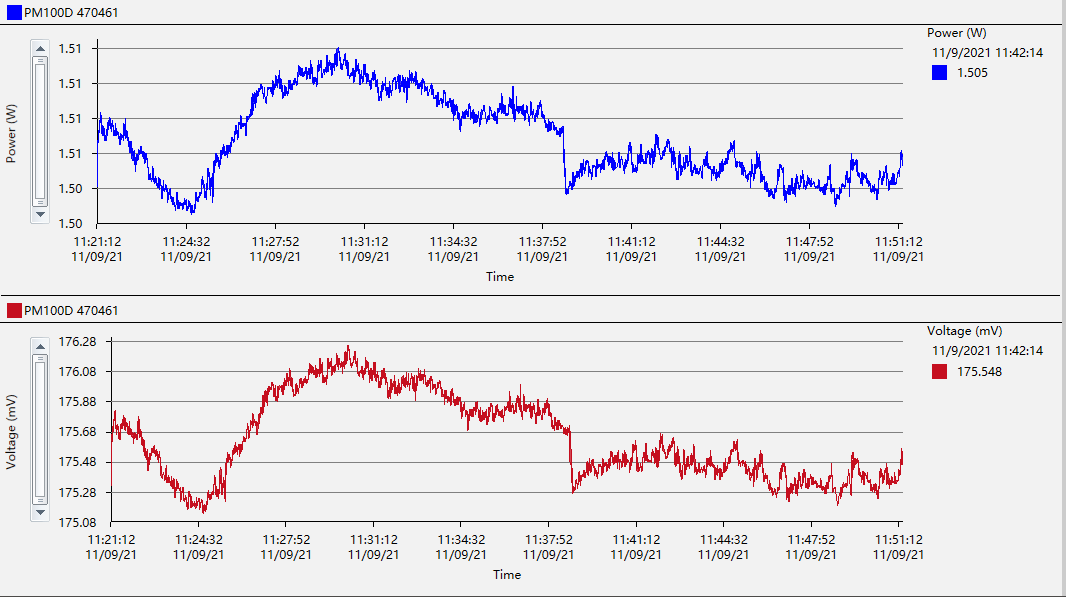

    2. Curve of power




     3. Power stability





     二：1910 nm

    1. Amplify the noise test chart

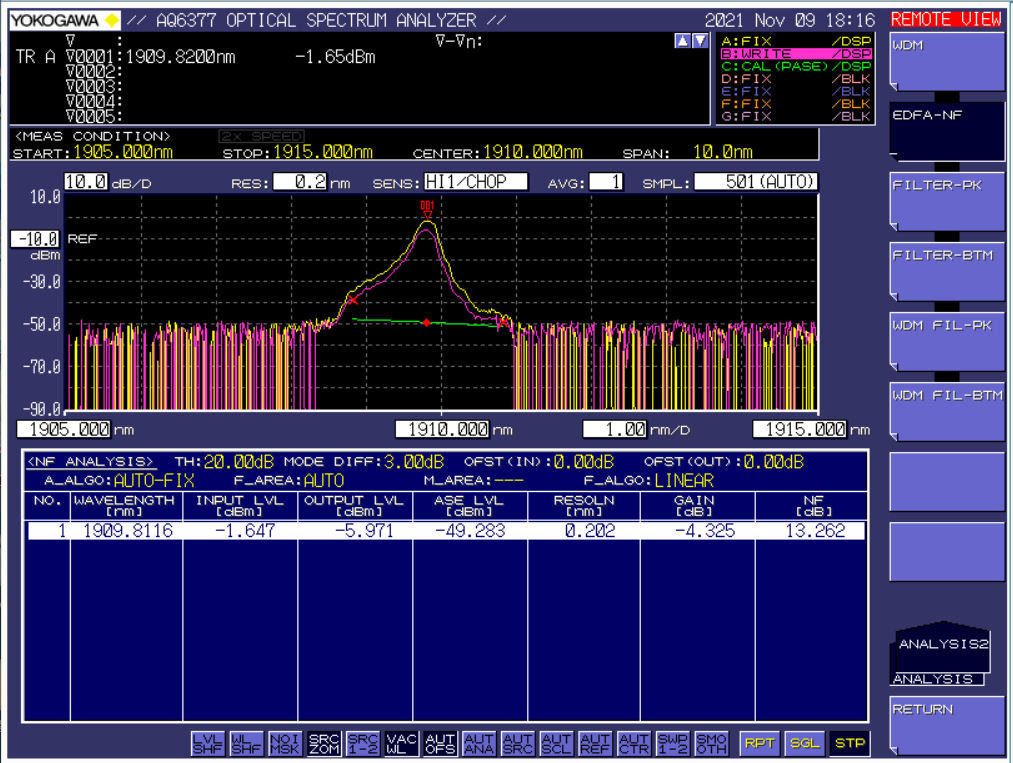

    The amplified noise measured at 1910nm is 13.262dB.



    2. Curve of power






    3. Power stability
