    • 2um Single Frequency Polarization Maintaining Thulium Doped Fiber Amplifier (TDFA) 1950-2050nm TDFA-1W-FA-PM

    Idealphotonics Thulium-doped Benchtop Single-Frequency Polarization-Maintaining Fiber Amplifier is a power amplifier specially designed for ultra-narrow linewidth, single-frequency signal light (such as fiber lasers made based on DFB and DBR principles). This amplifier can amplify low-power optical signals of the kHz level to an output power of up to 50W, and can well maintain the spectral characteristics of the input signal light. Our amplifier uses a high-power, high-performance multi-mode pump source, double-clad fiber amplification technology, an integrated design of a fully polarization-maintaining structure, and continuously adjustable output power. The benchtop fiber amplifier is a complete Turn-Key system, which is internally controlled by a microprocessor. The front panel is equipped with a laser start switch and a power status LCD display, as well as an output power adjustment knob. Benchtop polarization-maintaining fiber amplifier (TDFA) can be widely used in scientific research, coherent synthesis, coherent detection sensor systems, etc.

    Product features：High output power、 Low noise figure、 Turn-Key system、 ACC/ALC mode operation

    Part Number：--

    Application area：Optical communication、 Test and measurement、 Scientific application

    Add to Cart Consult Favorite

    Related Products

    Main parameters
  • Core parameters

  • Dimension Drawing
    • General Parameters

    Parameter

    PN#

    TDFA-1W-FA-PM


    2um fiber amplifier (TDFA)

    Application

    Pre-amplified optical amplifier

    Signal wavelength range

    1900-2050nm

    Maximum output power*1

    >+30dBm />1W

    Gain*2

    >20dB

    Noise factor*2

    <6dB

    Amplification control

    ACC / ALC

    Monitoring items

    Input power, output power, LD current, LD temperature, ambient temperature

    Safety functions

    Remote shutdown interlock

    Remote control interface

    RS232C/IEEE488.2(GP-IB)

    Input/output optical fiber

    PMF(Nufern PM1950)

    Optical fiber connector

    FC/APC

    Minimum extinction ratio

    20dB

    Input signal line width

    Down to 0.1KHZ

    Operating temperature

    0 ~ 40 °C

    Storage temperature

    -10 ~ 60 °C

    Dimensions*3 (mm)

    88 x 430 x 450

    Weight

    5 Kg

    Power consumption

    <30W

    Power supply

    AC 100 ~ 240V (50/60Hz)

    Notes:

    * 1 Input power 1-10dBm@1950

    * 2 Under the premise of ensuring beam quality M2＜1.05, single mode, TEM00 mode

    * 3 Excluding protruding parts

    * TDFA-1W-FA-PM is designed for 1950～2050nm, total power 0dBm input signal to achieve the best gain stability.

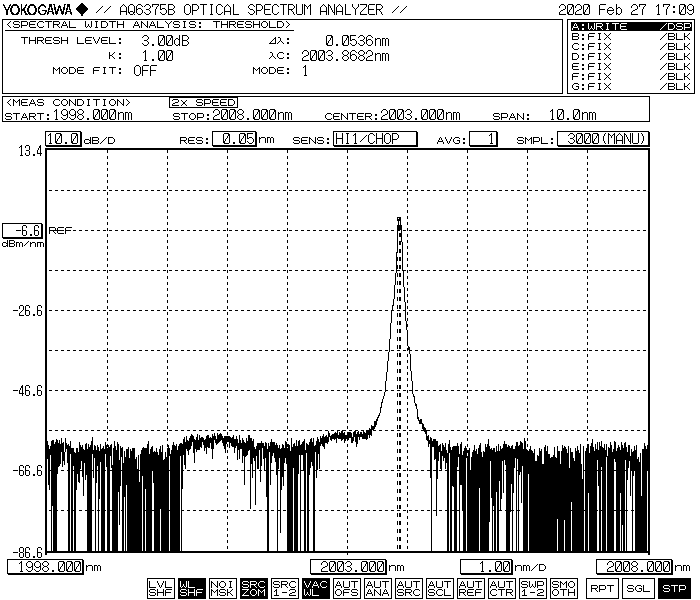

    spectrum

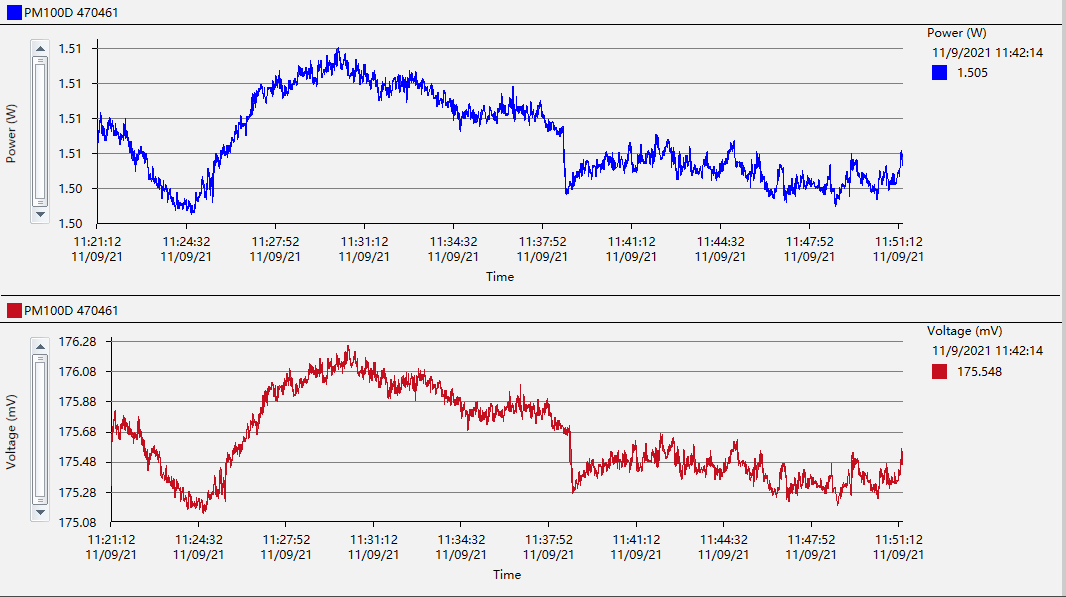

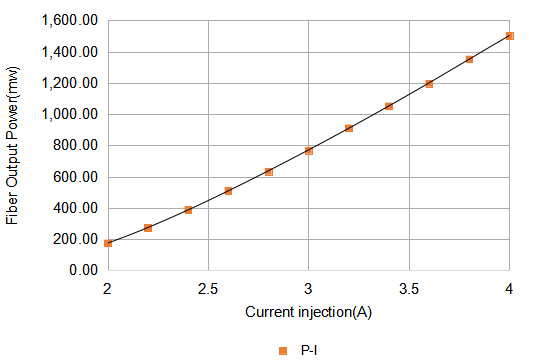

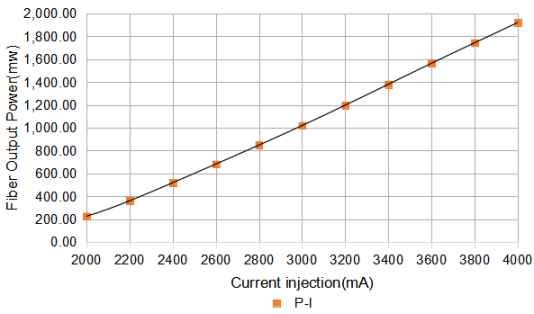

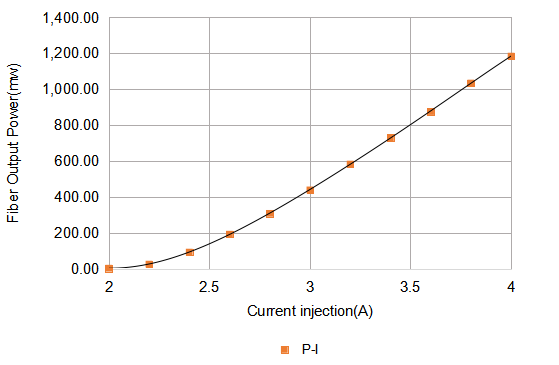

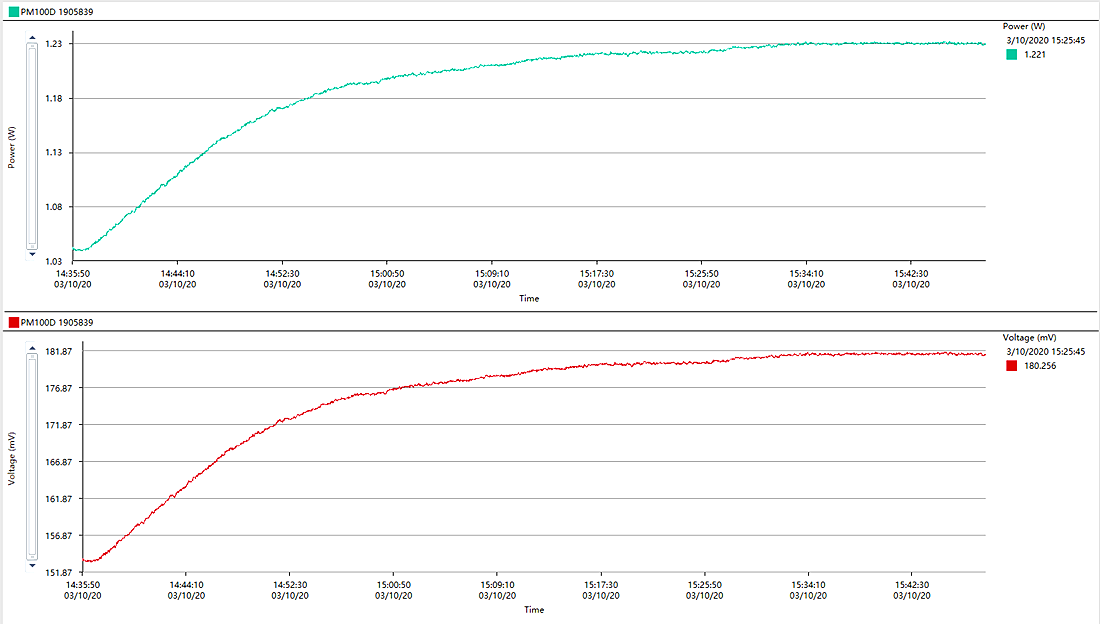

    Power stability curve and modulation linearity test curve




    The following was filled out by the personnel from AOL Laboratory.

    Test date

    2021.11.9

    Engineer

    Dai Jiahao

    Test production

    2um continuous fiber amplifier TDFA(XZ2010T264)

    Auditor

    Wang Xiuxiang

    Purpose of Test

    Power stability test、Spectrum chart

    Equipment of Test

    Dynamometer、Spectrometer





    I 2000nm

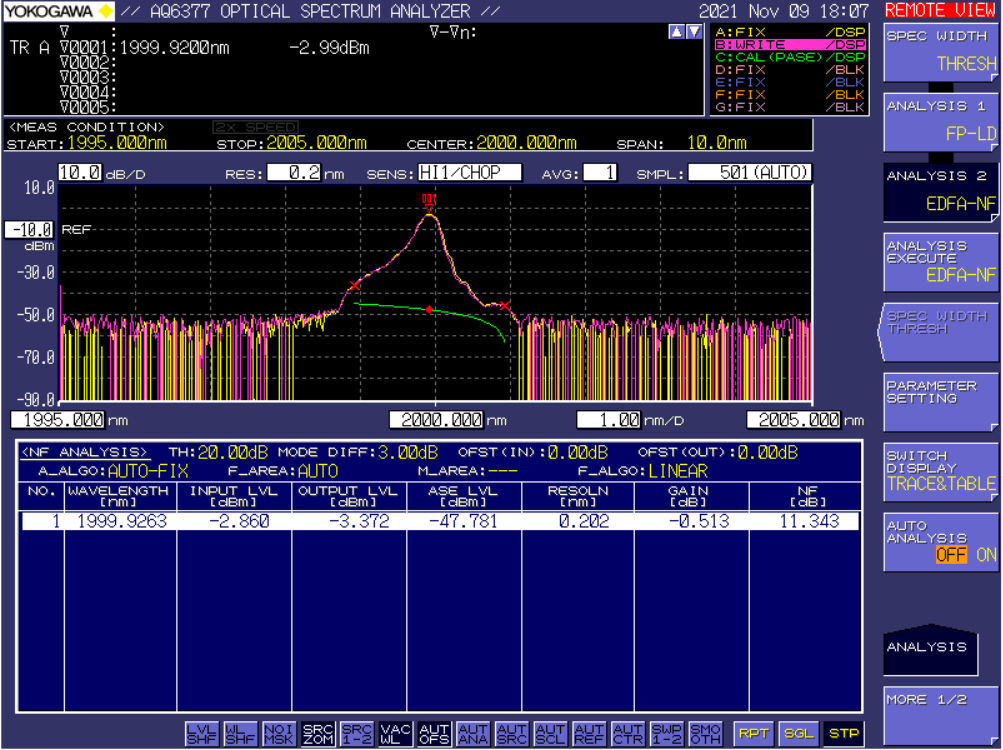

    1. Amplify the noise test chart


    In the above figure, Trace A (yellow) is the seed light spectrum, and Trace B (purple) is the spectrum after amplification (after passing through a 2um attenuator), and the same below. The amplified noise measured at 2000nm is 11.343dB.



    2. Power curve

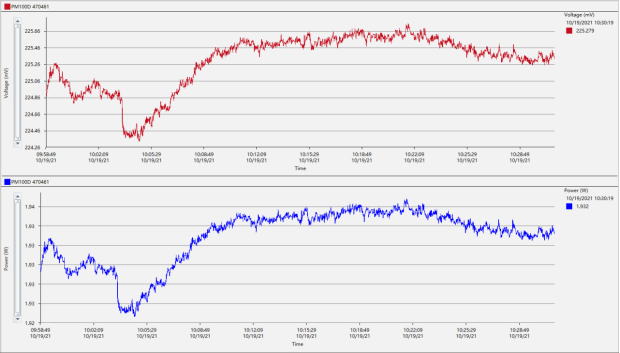

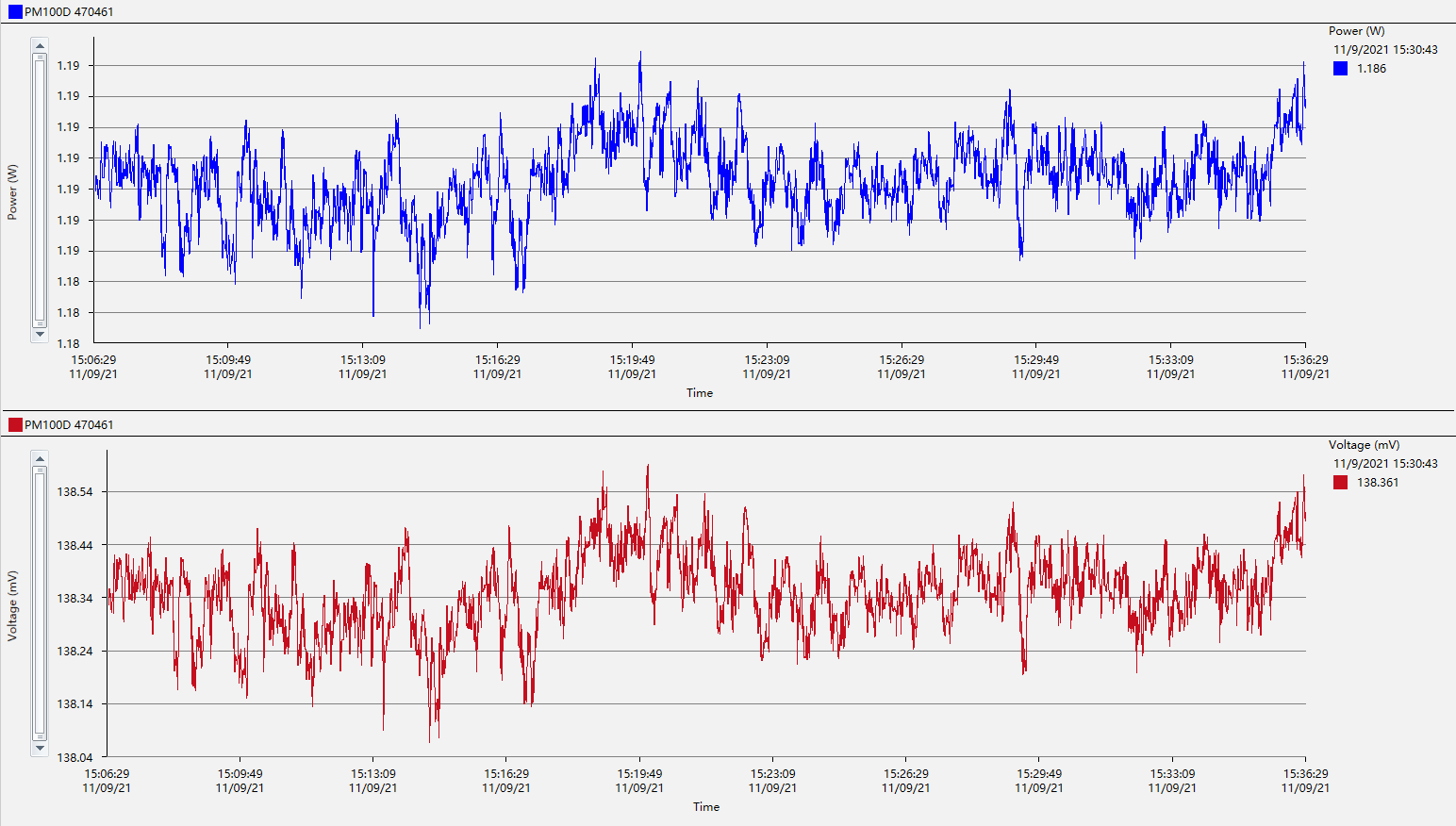

    Power stability






    II 1950nm

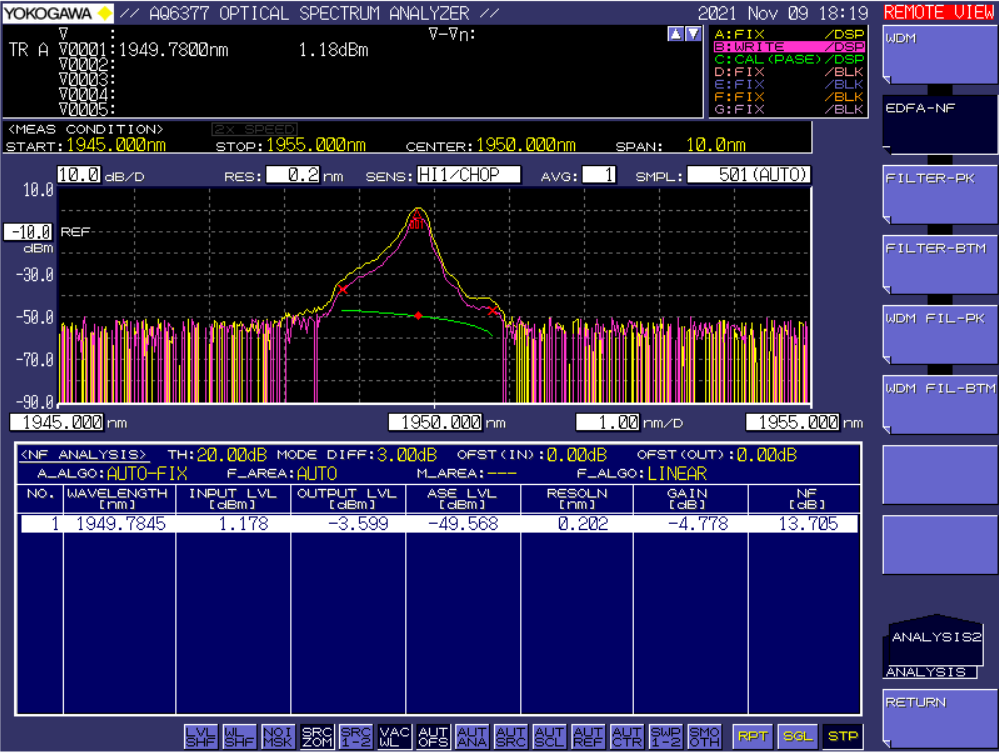

    1. Amplified noise test chart


    The amplified noise measured at 1950nm is 13.705dB.



    2.  Power curve






    3. Power stability






    III 1910nm

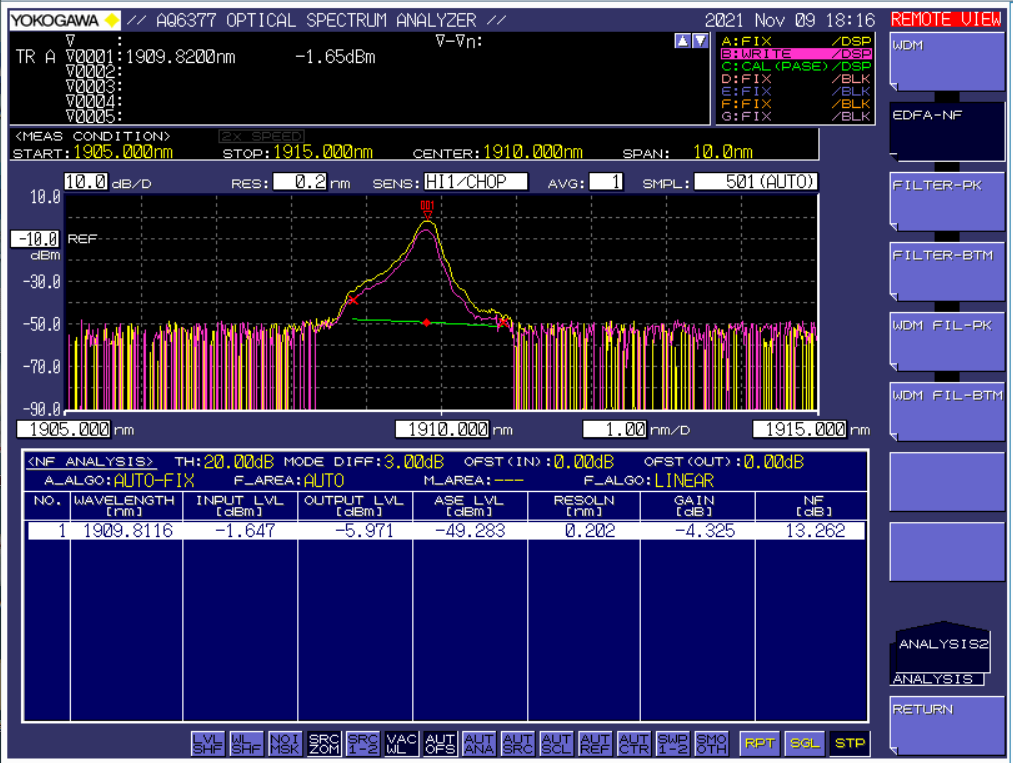

    1. Amplified noise test chart


    The amplified noise measured at 1910nm is 13.262dB.


    2. Power curve






    3. Power curve
