600um Large Core Fiber Patch Cable

600um Large Core Fiber Patch Cable

Fiber optic patch cord (also known as fiber optic connector) refers to the installation of connector plugs at both ends of the optical fiber to achieve active connection of the optical path.

Product features：Large core diameter: 600um、 Fiber optic connector

Part Number：--

Application area：Fiber optic communication system、 Fiber optic access network、 Fiber optic data transmission、 Fiber optic sensor

Add to Cart Consult Favorite

Related Products

50X50μm Homogenized Fiber Optic Connector
310X310μm homogenized fiber connector
600X600μm homogenized fiber connector
400X400μm Homogenized Fiber Optic Connector

Main parameters
General Parameters
Optional Configurations
Downloads

Main parameters

Core parameters

Dimension Drawing

General Parameters

Technical Parameters:

Parameter	Value
Fiber Type	HPCF600
Length	L≤1m Tolerance：±10mm
	1m＜L≤3m Tolerance：±15mm
	3m＜L≤5m Tolerance：±30mm
	5m＜L Tolerance：±30mm
Connector Type	SMA/FC-SMA/FC

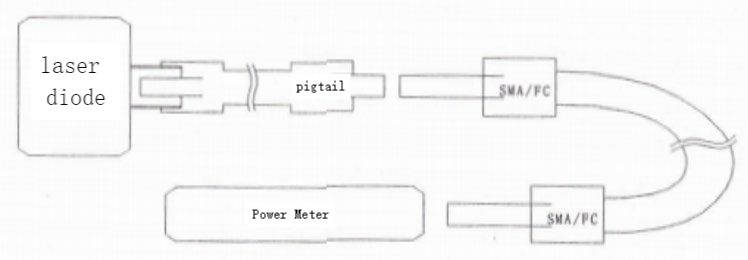

Test diagram:


Optional Configurations

Downloads

600um Large Core Fiber Patch Cable.pdf
