首页 Optical Accessories Active devices AOM 1550/1650nm single-mode/polarization maintaining fiber acousto-optic modulator 1550nm polarization-maintaining acousto-optic modulator

    • 1550nm polarization-maintaining acousto-optic modulator

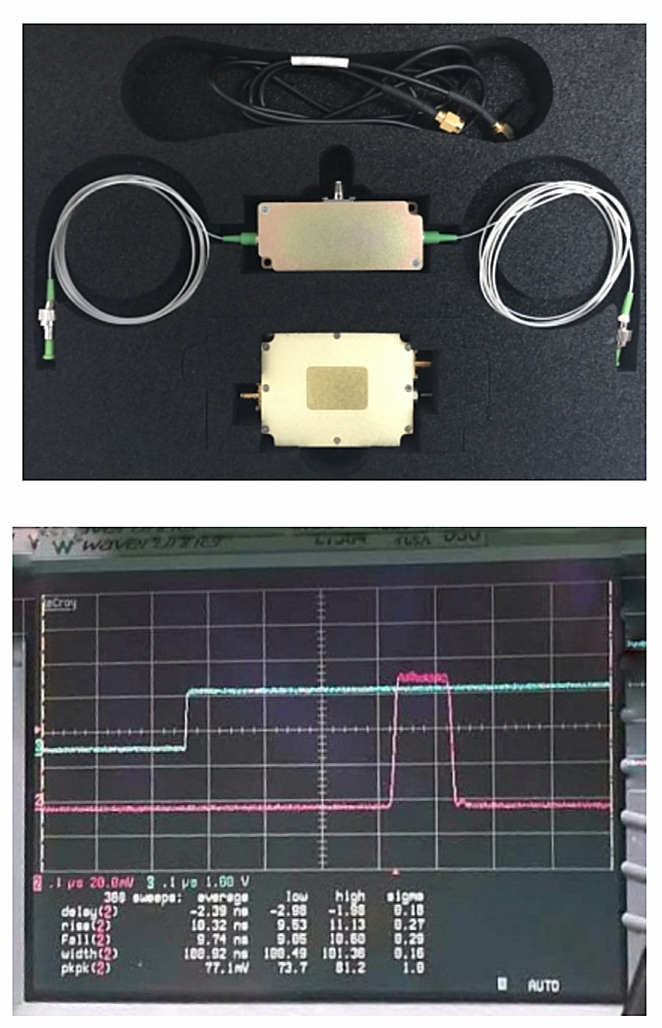

    Idealphotonics' acousto-optic modulators are widely used in the field of fiber optic sensing due to their high modulation extinction ratio and high power tolerance. This product is specially developed for the application needs of fiber optic sensing. It has the advantages of small size, low power consumption (<1W), fast rise time (12ns), good modulation pulse shape (small overshoot), good pulse repeatability (small repetition period jitter), etc., and the modulator and driver can be packaged in an integrated manner, which is convenient for system integration. It can be widely used in various fiber optic sensing systems that require pulse modulation, such as φ-OTDR, BOTDR, and OFDR.

    产品特点Small size、 Low power consumption (<500mW)、 Fast rise time (12ns)、 Good modulated pulse shape (small overshoot)、 Good pulse repeatability (small repetition period jitter)

    产品货号E80070002

    应用领域Fiber optic sensing、 LiDAR、 BOTDA

    产品单价联系客服询价

    到货日期请咨询客服获得货期

    产品库存请咨询客服

    Moli

    电话：13061644116

    邮箱：moli@microphotons.com

    加入询价单 在线咨询

    收藏

    相关产品

    主要参数
  • 核心参数

  • 尺寸图

    • Parameter

    Parameter

    Unit

    PN#

    AOM100-1550-1(X)

    AOM150-1550-1(X)

    AOM200-1550-1(X)

    material

    -

    Tellurium oxide

    Wavelength

    nm

    1550

    Laser power

    W

    ≤0.5

    Pulse laser peak power

    kW

    ≤1（5W customized）

    Insertion loss

    dB

    ≤3

    ≤4

    ≤5

    Extinction ratio

    dB

    ≥50

    Polarization extinction ratio (applicable to polarization-maintaining devices)

    dB

    ≥20

    Voltage standing wave ratio

    1

    ≤1.2:1

    Light pulse rise time

    ns

    40

    20

    12

    Operating frequency

    MHz

    100

    150

    200

    Fiber type

    -

    SM or PM

    Fiber connector

    -

    FC/APC

    Appearance structure

    -

    Figure A

    Driver


    D100-02-M-1D

    D150-02-M-1D

    D200-02-M-1D




    Drive parameter

    Parameter

    Unit

    PN#

    D100-02-M-1D

    D150-02-M-1D

    D200-02-M-1D

    Operating frequency

    MHz

    100

    150

    200

    Drive power

    W

    ≤2.5

    ≤3

    ≤3

    Electric pulse rise time

    ns

    ≤20

    ≤15

    ≤7.5

    Power switching ratio

    dB

    ≥55

    Power supply voltage (DC)

    V

    24

    Harmonic suppression

    dBc

    ≥25

    Modulation mode

    -

    TTL

    Output impedance

    Ω

    50

    Appearance structure

    -

    Figure B




    Modulation Curve
