PM Optical Isolator (Single-Stage) 1064nm 0.3mW FC/APC

首页 Fiber Accessories Fiber optic components Fiber isolator Single/Double stage Optical Isolator 780-1310nm PM Optical Isolator (Single-Stage) 1064nm 0.3mW FC/APC

PM Optical Isolator (Single-Stage) 1064nm 0.3mW FC/APC

Idealphotonics offers a broad range of fiber optic isolators within the wavelength range of 780-1310nm. These isolators can be coupled with any single-mode fiber equipment purchased from the company (such as lasers, SLDs, SOAs, and gain modules). In this configuration, the device is characterized by the isolator, with measurement reports showing the performance of the OI output. The equipment can be spliced to prevent additional loss and feedback at the FC/APC connector. For fiber optic isolators within the 1060-1310nm wavelength range, the devices feature compact (55×5.5×5.5mm) lightweight packaging with a maximum input power of 300-500mW. In the shorter range (780-1055nm), another material is used that absorbs less optical power, and the OI is provided in a larger (up to 118x37x35mm) and heavier metal package. High-power OIs use the same material to achieve input powers of up to 1

产品特点High Isolation、 Low Insertion Loss、 Fast Axis Blocked

产品货号A80152481

应用领域Light Source Isolation

产品单价联系客服询价

到货日期请咨询客服获得货期

产品库存请咨询客服

Sherry

电话：16628709332

邮箱：moli@microphotons.com

加入询价单在线咨询

相关产品

主要参数
可选配置表
资料下载

主要参数

核心参数

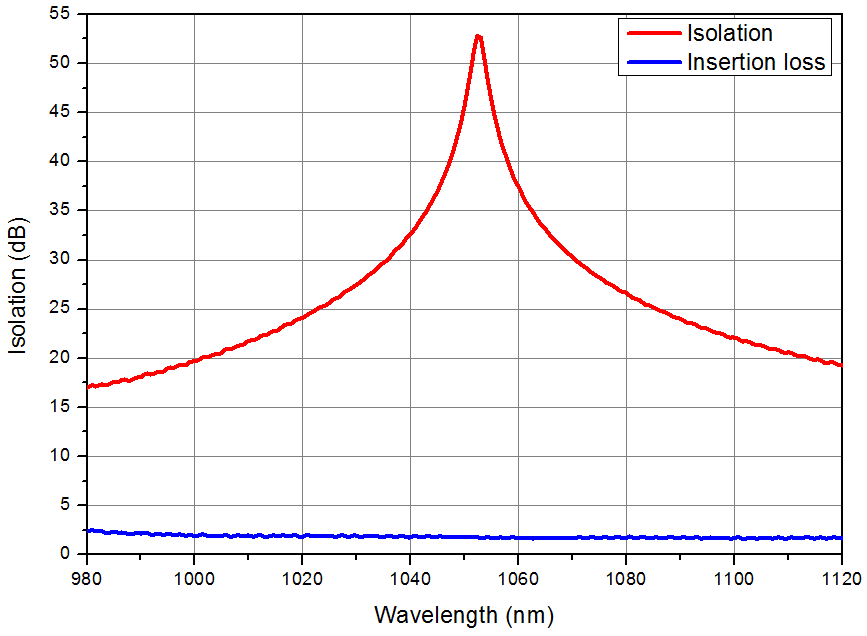

尺寸图

Specifications
Parameter	Min	Typical	Max
Single/Double Stage		Single
Center Wavelength		1064
Peak Isolation	35	40
Insertion Loss		1.5	1.8
Return Loss (Input/Output)	55/55
Extinction Ratio	23
Optical Power (CW)			300
Maximum Tension Load			5
Operating Temperature	-5		50
Storage Temperature	-40		85

Parameter	Panda PM980 Fiber	Unit
Mode Field Diameter	6.6±1	μm
Cutoff Wavelength	920±50	nm
Cladding Diameter	125±1	μm
Coating Diameter	245±15	μm
Core-to-Cladding Offset	≤0.5	μm
Length (per port)	1.0 ± 0.2	m
Connector	FC/APC
Connector Alignment with Panda Fiber:

Model Explanations:

PMOI-1064-SS-①①-②②

①Connector Type on Port 1 & 2: 1 - FC/APC, N - none

②Fiber Jacket on Port 1 & 2: B - 250um Panda Fiber, L - 900um Loose Tube Panda Fiber Example: PMOI-1064-SS-N1-BB

General Parameters:


Typical parameters of fiber optic isolators

* @Max10mW Reverse optical power。

model	Single/Bipolar Stage	wavelength	Peak isolation*	insertion loss	Return Loss	extinction ratio	Input optical power(CW) (Direct optical power)	Fiber type	Package Size(LWH)
model	Single/Bipolar Stage	nm	dB	dB	dB	dB	W	Fiber type	mm
PMOI-780-SS	single	780	30	1	50	20	0.3	PM780	91x27x28
PMOI-808-SS	single	808	30	1	50	20	0.3	PM780	91x27x28
PMOI-850-SS	single	850	35	1	50	20	0.3	PM850	91x27x28
PMOI-980-SS	single	980	35	1	50	20	0.3	PM980	91x27x28
PMOI-1025-SS-HP	single	1025	30	1.2	50	20	1	PM980	118x37x35
HIOI-1025-SS-HP	single	1025	30	1.2	50		1	HI1060	118x37x35
PMOI-1030-SS-HP	single	1030	26	1	50	20	1	PM980	118x37x35
HIOI-1030-SS-HP	single	1030	26	1	50		1	HI1060	118x37x35
PMOI-1030-SS	single	1030	22	4.7	55	23	0.08	PM980	55×5.5×5.5
HIOI-1030-SS	single	1030	22	4	55		0.08	HI1060	55×5.5×5.5
PMOI-1040-SS-HP	single	1040	35	1	50	20	1	PM980	118x37x35
HIOI-1040-SS-HP	single	1040	35	1	50		1	HI1060	118x37x35
PMOI-1040-SS	single	1040	30	4.2	55	23	0.1	PM980	55×5.5×5.5
HIOI-1040-SS	single	1040	30	4.2	55	23	0.1	PM980	55×5.5×5.5
PMOI-1050-SS-HP	single	1050	50	2.5	50	20	1	PM980	118x37x35
PMOI-1050-SS	single	1050	40	2.9	55	23	0.15	PM980	55×5.5×5.5
PMOI-1055-SS-HP	single	1055	35	1	50	20	1	PM980	118x37x35
HIOI-1055-SS-HP	single	1055	35	1	50		1	HI1060	118x37x35
PMOI-1055-SS	single	1055	40	2.6	55	23	0.2	PM980	55×5.5×5.5
HIOI-1055-SS	single	1055	40	2.6	55		0.2	HI1060	55×5.5×5.5
HIOI-1064-SS-HP	single	1064	26	1	55		1-5	HI1060	35x5x5
PMOI-1064-SS	single	1064	40	1.8	55	23	0.3	PM980	55×5.5×5.5
HIOI-1064-SS	single	1064	40	1.8	55		0.3	HI1060	55×5.5×5.5
PMOI-1064-DS	double	1064	55	3.2	55	20	0.3	PM980	55×5.5×5.5
PMOI-1085-SS-HP	single	1085	35	1	50	20	1	PM980	118x37x35
HIOI-1085-SS-HP	single	1085	35	1	50		1	HI1060	118x37x35
PMOI-1085-SS	single	1085	30	1.8	55	23	0.3	PM980	55×5.5×5.5
HIOI-1085-SS	single	1085	30	1.8	55		0.3	HI1060	55×5.5×5.5
PMOI-1095-SS-HP	single	1095	30	1	50	20	1	PM980	118x37x35
HIOI-1095-SS-HP	single	1095	30	1	50		1	HI1060	118x37x35
PMOI-1095-SS	single	1085	28	1.8	55	23	0.3	PM980	55×5.5×5.5
HIOI-1095-SS	single	1085	28	1.8	55		0.3	HI1060	55×5.5×5.5
PMOI-1120-SS	single	1120	30	1.7	50	21	0.3	PM980	55×5.5×5.5
PMOI-1120-DS	double	1120	40	2.8	50	21	0.3	PM980	55×5.5×5.5
PMOI-1150-SS	single	1150	20	2	55	20	0.3	PM980	55×5.5×5.5
PMOI-1150-DS	double	1150	30	2.8	55	20	0.3	PM980	55×5.5×5.5
PMOI-1178-DS	double	1178	25	2	50	20	0.35	PM980	55×5.5×5.5
PMOI-1188-DS	double	1188	20	2.1	50	20	0.35	PM980	55×5.5×5.5
PMOI-1250-DS	double	1250	30	1.2	55	23	0.4	PM980	55×5.5×5.5
PMOI-1310-DS	double	1310	58	0.6	55	23	0.5	PM1300	55×5.5×5.5
