1064nm Polarization Maintaining Fiber Connector/Patch Cable

1064nm Polarization Maintaining Fiber Connector/Patch Cable

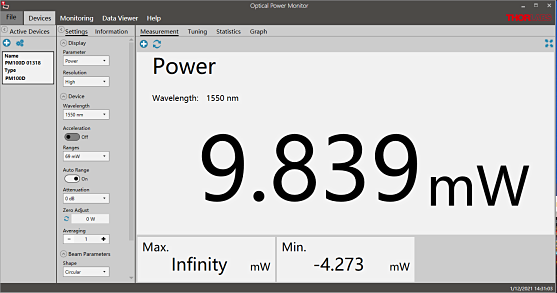

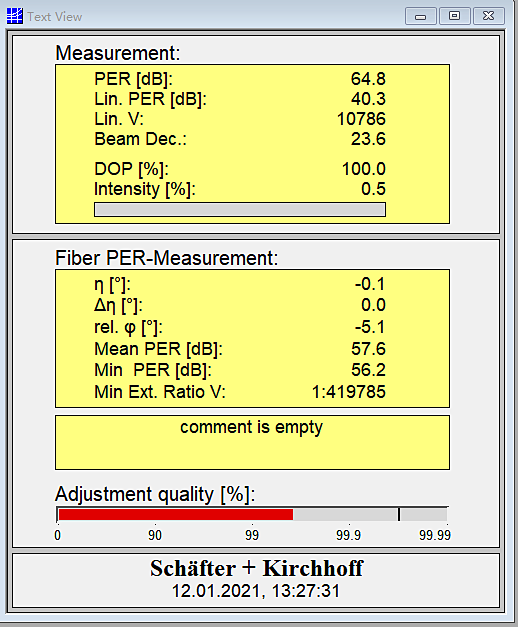

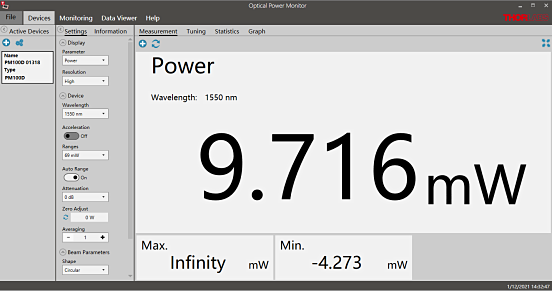

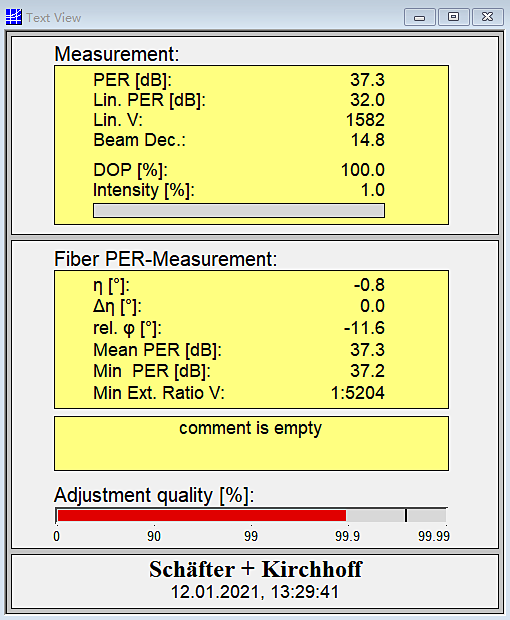

These polarization-maintaining fiber patch cords offered by Idealphotonics feature high-quality, narrow-pin ceramic FC/AFC connectors on both ends. Produced in our facilities, each patch cord is individually tested at the test wavelengths listed on the Specs tab to ensure extinction ratio and low back reflection (return loss) when connecting fiber to fiber. These patch cords are available in stock with a high-quality polish that guarantees a typical return loss of over 60 dB. The test data table provides extinction ratio and insertion loss tests for each patch cord. Each patch cord comes with two protective caps covering the ends to prevent dust or other contaminants from falling into the ferrule end face. We also sell CAPF plastic fiber caps and CAPFM metal threaded fiber caps to protect FC/PC terminations separately. If you don't find the product you need in our stock patch cords, we also offer custom patch cords that can be shipped the same day.

Product features：Slow axis aligned、 Polarization-maintaining fiber with a pair of FC/APC connectors、 Wavelength range 400-2200nm、 Narrow plug (2mm) and slow axis aligned、 Typical 60 dB return loss、 Ceramic ferrule, angled 8° (APC)、 Ø3mm external protective layer、 Customized jumpers available

Part Number：--

Application area：Fiber optic communication system、 Fiber optic access network、 Fiber optic data transmission、 Fiber optic CATV、 Local area network (LAN)、 Test equipment、 Fiber optic sensor

Add to Cart Consult Favorite

Related Products

Main parameters
General Parameters
Optional Configurations
Downloads

Main parameters

Core parameters

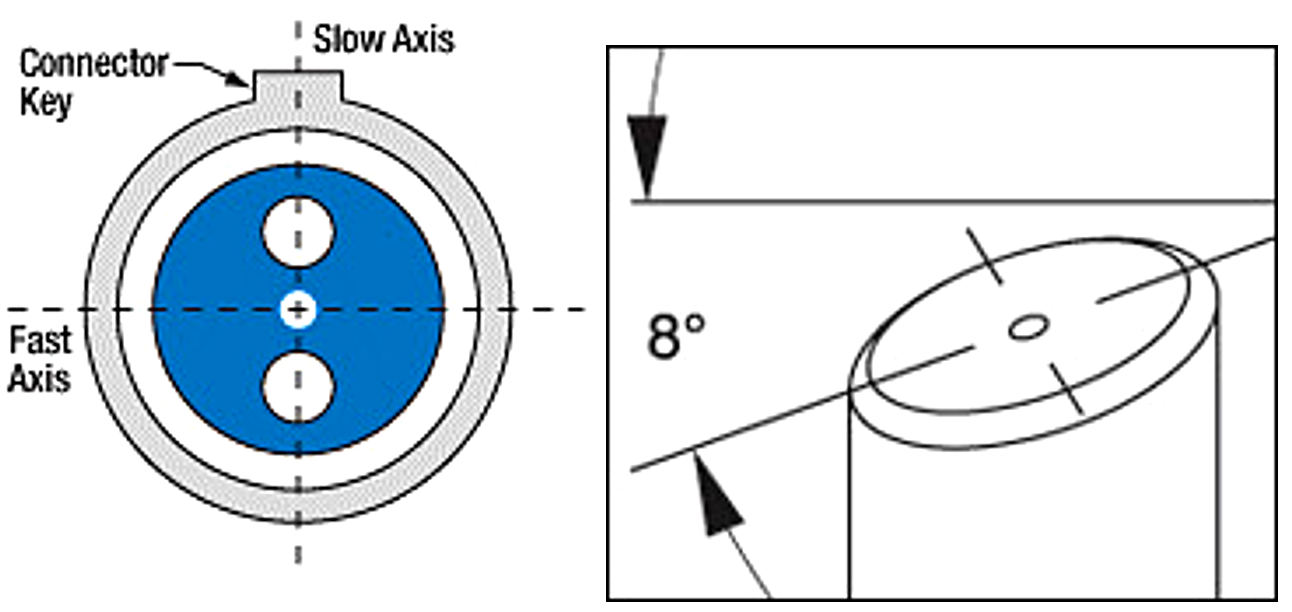

Dimension Drawing

General Parameters

Parameter

PN#	PM-405-2-1-FC/APC	PM-488-2-1-FC/APC	PM-630-2-1-FC/APC	PM-780-2-1-FC/APC	PM-980-2-1-FC/APC
Test wavelength	405 nm	488 nm	630 nm	780 nm	980 nm
Operating wavelength	400 - 680 nm	460 - 700 nm	620 - 850 nm	770 - 1100 nm	970 - 1550 nm
Cut-off wavelength	380 ± 20 nm	420 ± 30 nm	570 ± 50 nm	710 ± 60 nm	920 ± 50 nm
Fiber type	PM-S405-XP (Panda)	PM460-HP (Panda)	PM630-HP (Panda)	PM780-HP (Panda)	PM980-XP (Panda)
Maximum insertion loss a	1.5 dB	1.5 dB	1.2 dB	1.0 dB	0.7 dB
Minimum extinction ratio a	15 dB	18 dB	20 dB	20 dB	22 dB
Mode field diameter b	3.6 ± 0.5 um @ 405nm	3.4 um @ 488nm	4.2 um @ 630nm	4.9 um @ 780nm	6.6 ± 0.7 um @ 980nm
Numerical aperture c	0.12	0.12	0.12	0.12	0.12
Return loss a	60 dB Typical
Fiber connector	FC/APC
Connector groove width	2.00 ± 0.02 mm
Alignment method	Narrow Key Aligned to Slow Axis
Fiber length	1.0 +0.075/-0 m for Item NumbersEnding in -1
	2.0 +0.075/-0 m for Item NumbersEnding in -2
	5.0 +0.075/-0 m for Item NumbersEnding in -5
	10.0 +0.075/-0 m for Item NumbersEnding in -10
Loose tube type	900um/2mm/3mm armor can be choose
Operating temperature	0 to 70 ℃
Storage temperature	-45 to 85 ℃

PN#	PM-1064-2-1-FC/APC	PM-1310-2-1-FC/APC	PM-1550-2-1-FC/APC	PM-2000-2-1-FC/APC
Test wavelength	1064 nm	1310 nm	1550 nm	2000 nm
Operating wavelength	970 - 1550 nm	1270 - 1625 nm	1440 - 1625 nm	1850 - 2200 nm
Cut-off wavelength	920 ±50 nm	1200 ±70 nm	1370 ±70 nm	1720 ±80 nm
Fiber type	PM980-XP(Panda)	PM1300-XP(Panda)	PM1550-XP(Panda)	PM2000(Panda)
Maximum insertion loss a	0.7 dB	0.5 dB	0.5 dB	0.5 dB
Minimum extinction ratio a	22 dB	23 dB	23 dB	23 dB
Mode field diameter b	7.7 um@ 1064 nm	9.3 ±0.5 um @ 1300 nm	9.9 ±0.5 um @ 1550 nm	8.6 um @ 2000 nm
Numerical aperture c	0.12	0.13	0.125	0.2
Return loss a	60 dB Typical
Fiber connector	FC/APC
Connector groove width	2.00 mm ±0.02
Alignment method	Narrow Key Aligned to Slow Axis
Fiber length	1.0 +0.075/-0 m for Item NumbersEnding in -1
	2.0 +0.075/-0 m for Item NumbersEnding in -2
	5.0 +0.075/-0 m for Item NumbersEnding in -5
	10.0 +0.075/-0 m for Item NumbersEnding in -10
Loose tube type	900um/2mm/3mm armor can be choose
Operating temperature	0 to 70 ℃
Storage temperature	-45 to 85℃
