    • PM Optical Isolator (Single-Stage) 780nm 500mW FC/APC

    Innolume offers a broad portfolio of fiber isolators in the 780-1310nm wavelength range. These isolators can be provided with any single-mode fiber-coupled device (laser, SLD, SOA, gain module) purchased from our company. In such cases, the device is characterized with the isolator, and the measurement report reflects the performance at the OI output. The equipment can be spliced to avoid additional loss and feedback at the FC/APC connector. For the 1060-1310nm wavelength range, the fiber isolator features a compact (55×5.5×5.5mm) lightweight package with a maximum input power of 300-500mW. In the shorter range (780-1055nm), due to the use of a different material with lower optical power absorption, the OI is offered in a significantly larger (up to 118×37×35mm) and heavier metal package. The same material is used in high-power OIs to achieve input powers of up to

    产品特点High isolation、 Low insertion loss、 Fast axis blocked

    产品货号A80152482

    应用领域Light source isolation

    产品单价联系客服询价

    到货日期请咨询客服获得货期

    产品库存请咨询客服

    Sherry

    电话：16628709332

    邮箱：moli@microphotons.com

    加入询价单 在线咨询

    收藏

    相关产品

    主要参数
  • 核心参数

  • 尺寸图

    • Parameters

    Specs

    Parameters

    Min

    Typ.

    Max

    Unit

    Single/Dual Stage


    Single



    Center Wavelength


    780


    nm

    Peak Isolation

    25

    35


    dB

    Insertion Loss


    0.5

    1.3

    dB

    Return Loss (Input/Output)

    45/45

    50/50


    dB

    Extinction Ratio

    20



    dB

    Optical Power (CW)



    500

    mW

    Maximum Tensile Load



    5

    N

    Operating Temperature

    -5


    50

    °C

    Storage Temperature

    -40


    75

    °C





    Parameters

    Panda PM850

    Unit

    Mode Field Diameter

    5.5±0.5

    μm

    Cutoff Wavelength

    650-800

    nm

    Cladding Diameter

    125±1

    μm

    Coating Diameter

    245±15

    μm

    Core-to-Cladding Offset

    ≤0.5

    μm

    Length (per port)

    1.0 ± 0.2

    m

    Connector Type

    FC/APC


    Connector aligned with panda fiber:








    Ordering info

    PMOI-780-SS-①①-②②

    ①Connector Type on Port 1 & 2: 1 - FC/APC, N - none

    ②Fiber Jacket on Port 1 & 2: B - 250um Panda Fiber, L - 900um Loose Tube Panda Fiber Example: PMOI-780-SS-N1-BB

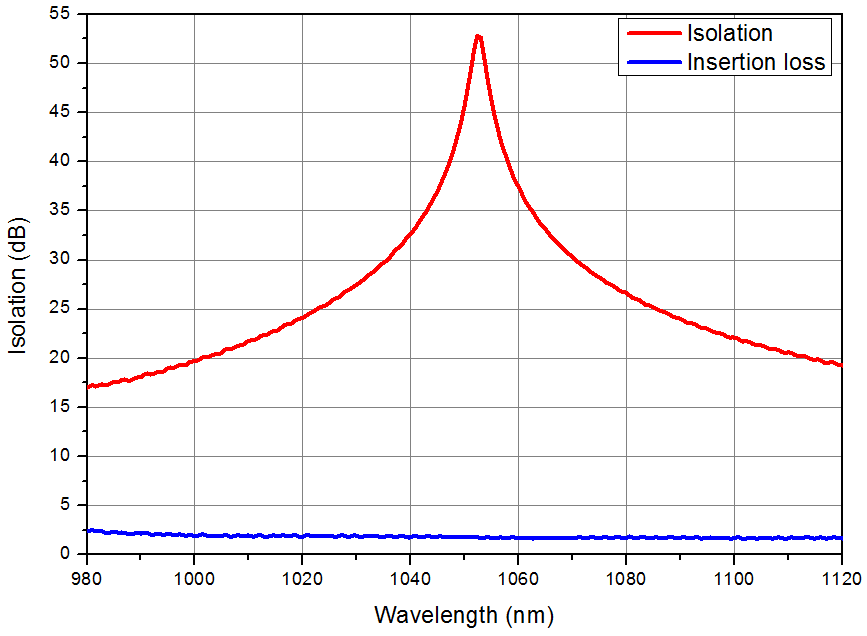

    General Parameters



    Typical parameters of fiber optic isolators

     * @Max10mW Reverse optical power。

    model

    Single/Bipolar

    Stage

    wavelength

    Peak isolation*

    insertion loss

    Return Loss

    extinction ratio

    Input optical power(CW)

    (Direct optical power)

    Fiber type

    Package Size(LWH)

    nm

    dB

    dB

    dB

    dB

    W

    mm

    PMOI-780-SS

    single

    780

    30

    1

    50

    20

    0.3

    PM780

    91x27x28

    PMOI-808-SS

    single

    808

    30

    1

    50

    20

    0.3

    PM780

    91x27x28

    PMOI-850-SS

    single

    850

    35

    1

    50

    20

    0.3

    PM850

    91x27x28

    PMOI-980-SS

    single

    980

    35

    1

    50

    20

    0.3

    PM980

    91x27x28

    PMOI-1025-SS-HP

    single

    1025

    30

    1.2

    50

    20

    1

    PM980

    118x37x35

    HIOI-1025-SS-HP

    single

    1025

    30

    1.2

    50


    1

    HI1060

    118x37x35

    PMOI-1030-SS-HP

    single

    1030

    26

    1

    50

    20

    1

    PM980

    118x37x35

    HIOI-1030-SS-HP

    single

    1030

    26

    1

    50


    1

    HI1060

    118x37x35

    PMOI-1030-SS

    single

    1030

    22

    4.7

    55

    23

    0.08

    PM980

    55×5.5×5.5

    HIOI-1030-SS

    single

    1030

    22

    4

    55


    0.08

    HI1060

    55×5.5×5.5

    PMOI-1040-SS-HP

    single

    1040

    35

    1

    50

    20

    1

    PM980

    118x37x35

    HIOI-1040-SS-HP

    single

    1040

    35

    1

    50


    1

    HI1060

    118x37x35

    PMOI-1040-SS

    single

    1040

    30

    4.2

    55

    23

    0.1

    PM980

    55×5.5×5.5

    HIOI-1040-SS

    single

    1040

    30

    4.2

    55

    23

    0.1

    PM980

    55×5.5×5.5

    PMOI-1050-SS-HP

    single

    1050

    50

    2.5

    50

    20

    1

    PM980

    118x37x35

    PMOI-1050-SS

    single

    1050

    40

    2.9

    55

    23

    0.15

    PM980

    55×5.5×5.5

    PMOI-1055-SS-HP

    single

    1055

    35

    1

    50

    20

    1

    PM980

    118x37x35

    HIOI-1055-SS-HP

    single

    1055

    35

    1

    50


    1

    HI1060

    118x37x35

    PMOI-1055-SS

    single

    1055

    40

    2.6

    55

    23

    0.2

    PM980

    55×5.5×5.5

    HIOI-1055-SS

    single

    1055

    40

    2.6

    55


    0.2

    HI1060

    55×5.5×5.5

    HIOI-1064-SS-HP

    single

    1064

    26

    1

    55


    1-5

    HI1060

    35x5x5

    PMOI-1064-SS

    single

    1064

    40

    1.8

    55

    23

    0.3

    PM980

    55×5.5×5.5

    HIOI-1064-SS

    single

    1064

    40

    1.8

    55


    0.3

    HI1060

    55×5.5×5.5

    PMOI-1064-DS

    double

    1064

    55

    3.2

    55

    20

    0.3

    PM980

    55×5.5×5.5

    PMOI-1085-SS-HP

    single

    1085

    35

    1

    50

    20

    1

    PM980

    118x37x35

    HIOI-1085-SS-HP

    single

    1085

    35

    1

    50


    1

    HI1060

    118x37x35

    PMOI-1085-SS

    single

    1085

    30

    1.8

    55

    23

    0.3

    PM980

    55×5.5×5.5

    HIOI-1085-SS

    single

    1085

    30

    1.8

    55


    0.3

    HI1060

    55×5.5×5.5

    PMOI-1095-SS-HP

    single

    1095

    30

    1

    50

    20

    1

    PM980

    118x37x35

    HIOI-1095-SS-HP

    single

    1095

    30

    1

    50


    1

    HI1060

    118x37x35

    PMOI-1095-SS

    single

    1085

    28

    1.8

    55

    23

    0.3

    PM980

    55×5.5×5.5

    HIOI-1095-SS

    single

    1085

    28

    1.8

    55


    0.3

    HI1060

    55×5.5×5.5

    PMOI-1120-SS

    single

    1120

    30

    1.7

    50

    21

    0.3

    PM980

    55×5.5×5.5

    PMOI-1120-DS

    double

    1120

    40

    2.8

    50

    21

    0.3

    PM980

    55×5.5×5.5

    PMOI-1150-SS

    single

    1150

    20

    2

    55

    20

    0.3

    PM980

    55×5.5×5.5

    PMOI-1150-DS

    double

    1150

    30

    2.8

    55

    20

    0.3

    PM980

    55×5.5×5.5

    PMOI-1178-DS

    double

    1178

    25

    2

    50

    20

    0.35

    PM980

    55×5.5×5.5

    PMOI-1188-DS

    double

    1188

    20

    2.1

    50

    20

    0.35

    PM980

    55×5.5×5.5

    PMOI-1250-DS

    double

    1250

    30

    1.2

    55

    23

    0.4

    PM980

    55×5.5×5.5

    PMOI-1310-DS

    double

    1310

    58

    0.6

    55

    23

    0.5

    PM1300

    55×5.5×5.5
