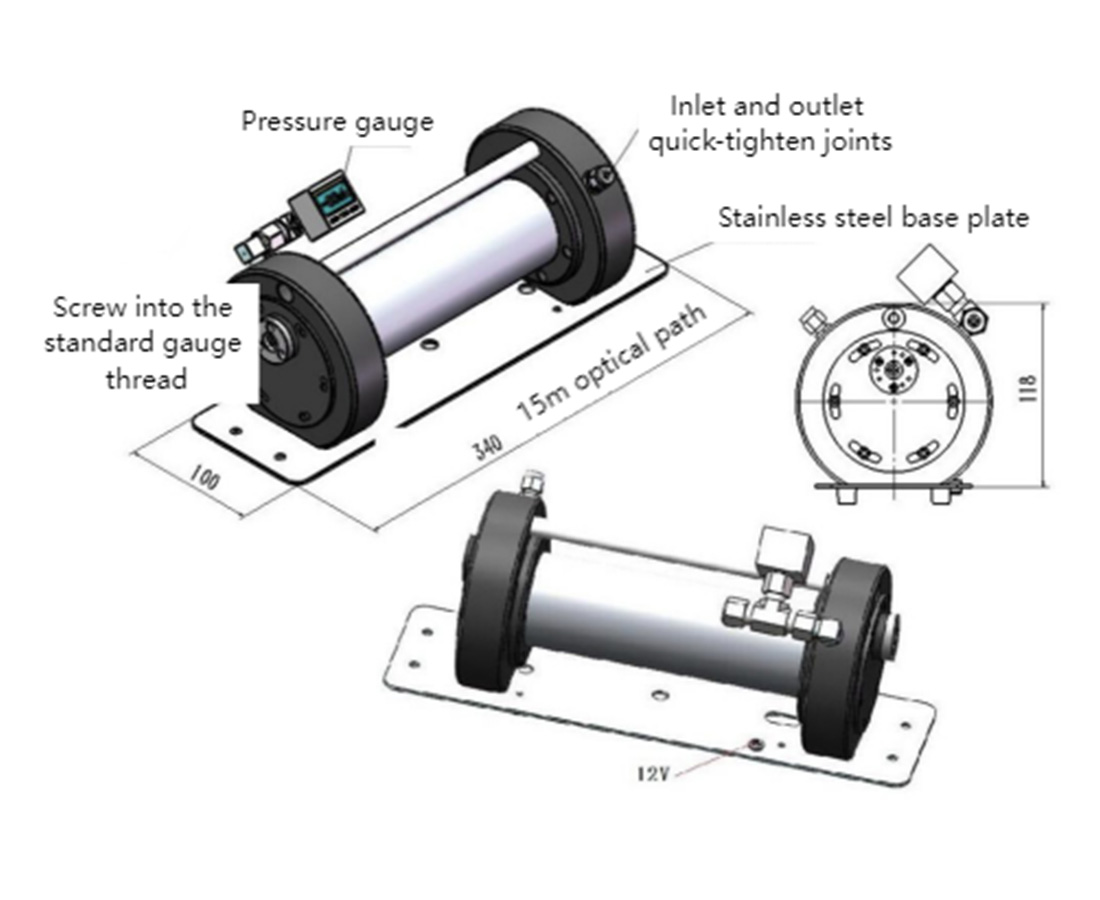

15m long optical path gas absorption cell

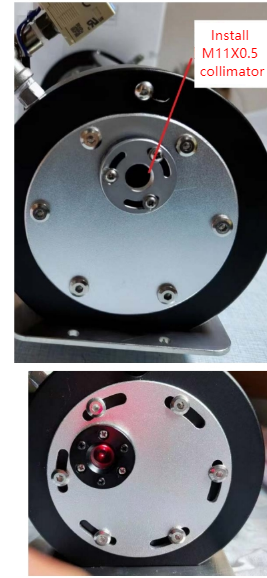

According to the tunable semiconductor laser absorption spectroscopy technology (TDLAS), a Herriott cell concave reflector is used to build a multi-reverse cavity long optical path gas cell. The reflective lens is plated with high-quality gold, silver and protective layer coating, which has high reflectivity. The compact design provides a relatively long absorption light path. The high-precision optical cavity gas cell is made of high-quality corrosion-resistant materials as a whole. It is suitable for industrial product application development, high-sensitivity gas analysis, major universities, scientific research, online environmental monitoring, etc. The standard light source collimator can be directly installed, and the interface is M11X0.5 thread. There is no need to add an external reflector or adapter adjustment to align the light, which is very convenient to use.

产品特点The air chamber structure is ultra-stable and has strong vibration resistance、 Small size, compact structure, easy to carry、 15-meter long effective optical path、 Input and output are coupled with standard single-mode optical fiber

产品货号H80060027

应用领域Monitoring tasks in industrial environments、 Infrared absorption spectroscopy in scientific research、 Industrial online monitoring
