    • InGaAs amplified photodetector 800-1700nm (140MHz )

    Indium Gallium Arsenide (InGaAs ) photodetector is a rated bandwidth, with the fixed gain photodetector to detect optical signals. The optical signal is input from the photoelectric sensor sensing surface and output in the form of voltage through BNC. This product can measure optical signals in the wavelength range of 800nm to 1700nm. For specific performance parameter data, please refer to the appendix table. The Idealphotonicx photodetector housing has a mounting hole with an imperial 1/4"-20 thread, which can be easily installed and fixed. The housing also comes with two different sizes of threaded rings, which are suitable for industrial applications and scientific research applications respectively, and can be easily adapted to external optical components such as filters, attenuators, lenses, FC fiber adapters, etc. The product includes a plastic dust cover. For specific installation, please refer to Chapter 3. Each photodetector is equipped with a DC linear power supply with an output of ±9V. The input rated voltage of the DC power supply is 220VAC/50HZ

    产品特点Low noise, less than ±1mV、 Small overshoot, overshoot voltage less than 2.5%、 Gain stability: gain error is less than 1%、 Dark bias voltage output noise: less than 1mV (rms)

    产品货号E80040181

    应用领域Display panel inspection 、LED lighting stroboscopic analysis 、Measurement of flashing frequency and power of toy lights 、 Gas analysis

    产品单价联系客服询价

    到货日期请咨询客服获得货期

    产品库存请咨询客服

    Sherry

    电话：16628709332

    邮箱：moli@microphotons.com

    加入询价单 在线咨询

    收藏

    相关产品

    主要参数
  • 核心参数

  • 尺寸图

    • parameter

    PN#

    PDA M 005B-Si

    PDA M 36A5B6G-SI

    PDA M 20A6B4G- InGaAs

    Electrical characteristics


    Input voltage

    ±9VDC, 60mA

    ±9VDG 100mA

    ±9VDC. 100mA

    Probe

    Silicon PIN

    Silicon PIN

    InGaAs PIN

    Photosensitive surface

    2.65mm * 2.65mm

    3.6mm * 3.6mm

    Diameters@2 mm

    wavelength

    400 nm - 1100 nm

    320 nm - 1100 nm

    800 nm - 1700 nm (Optional Extended 2600 nm)

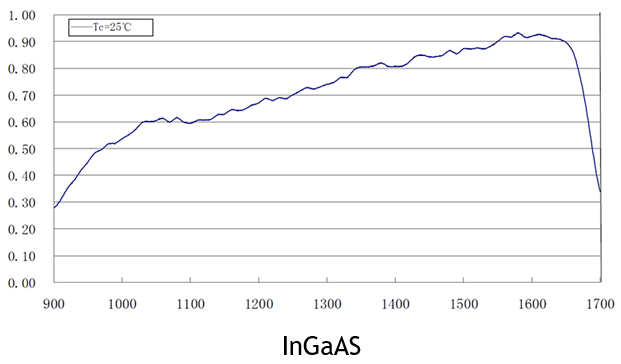

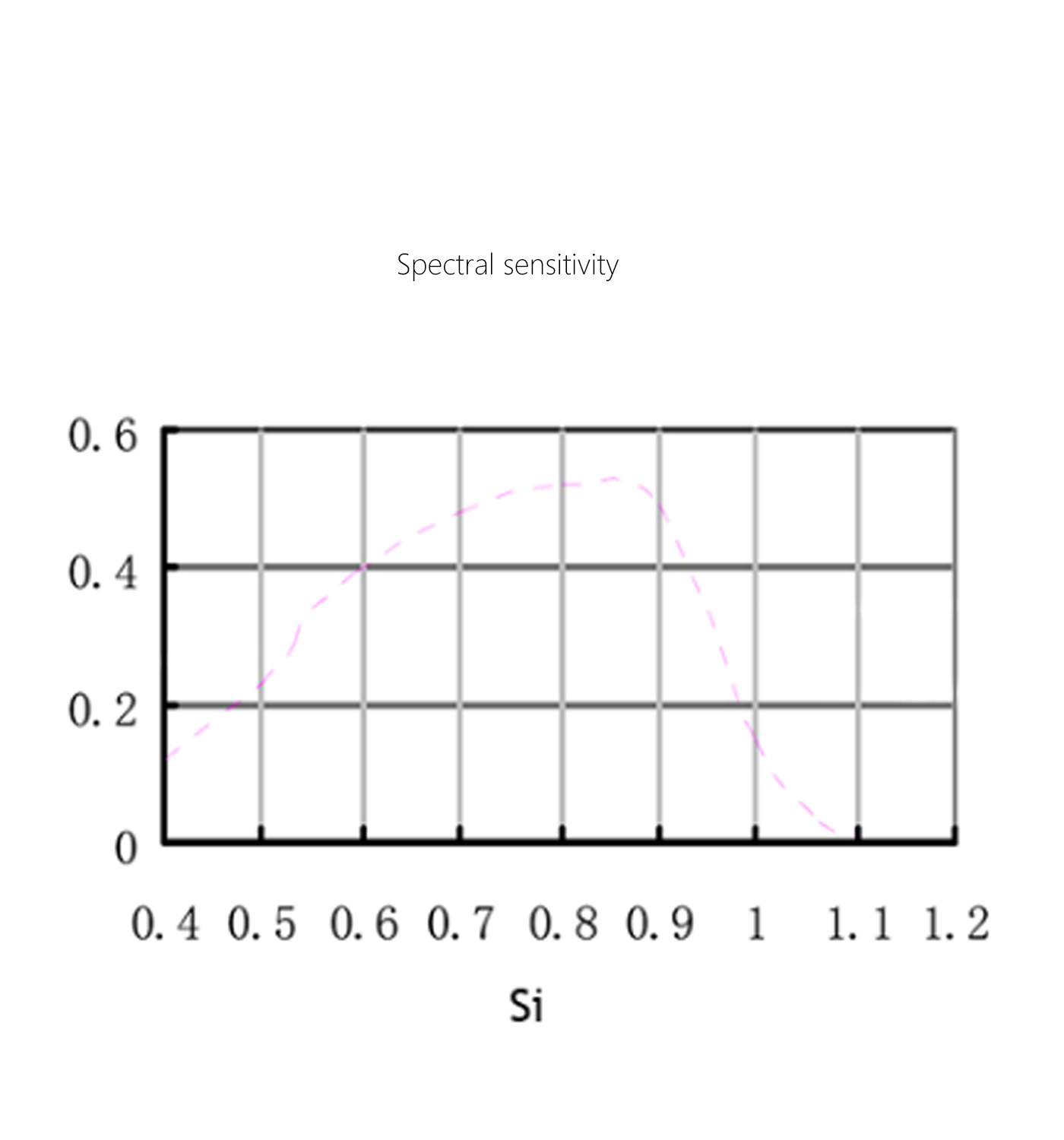

    Peak response

    0.62A/W @850nm

    0.6 A/W @960nm

    0.9 A/W@1550nm

    43.6mV/ uW @850nm

    1 mV/ nW @960nm

    9mV/uW@1550nm

    Saturation optical power

    113pW@ 850nm (Hi-Z)

    6uW @960nm (Hi-Z)

    660 uW@1550nm (Hi-Z)

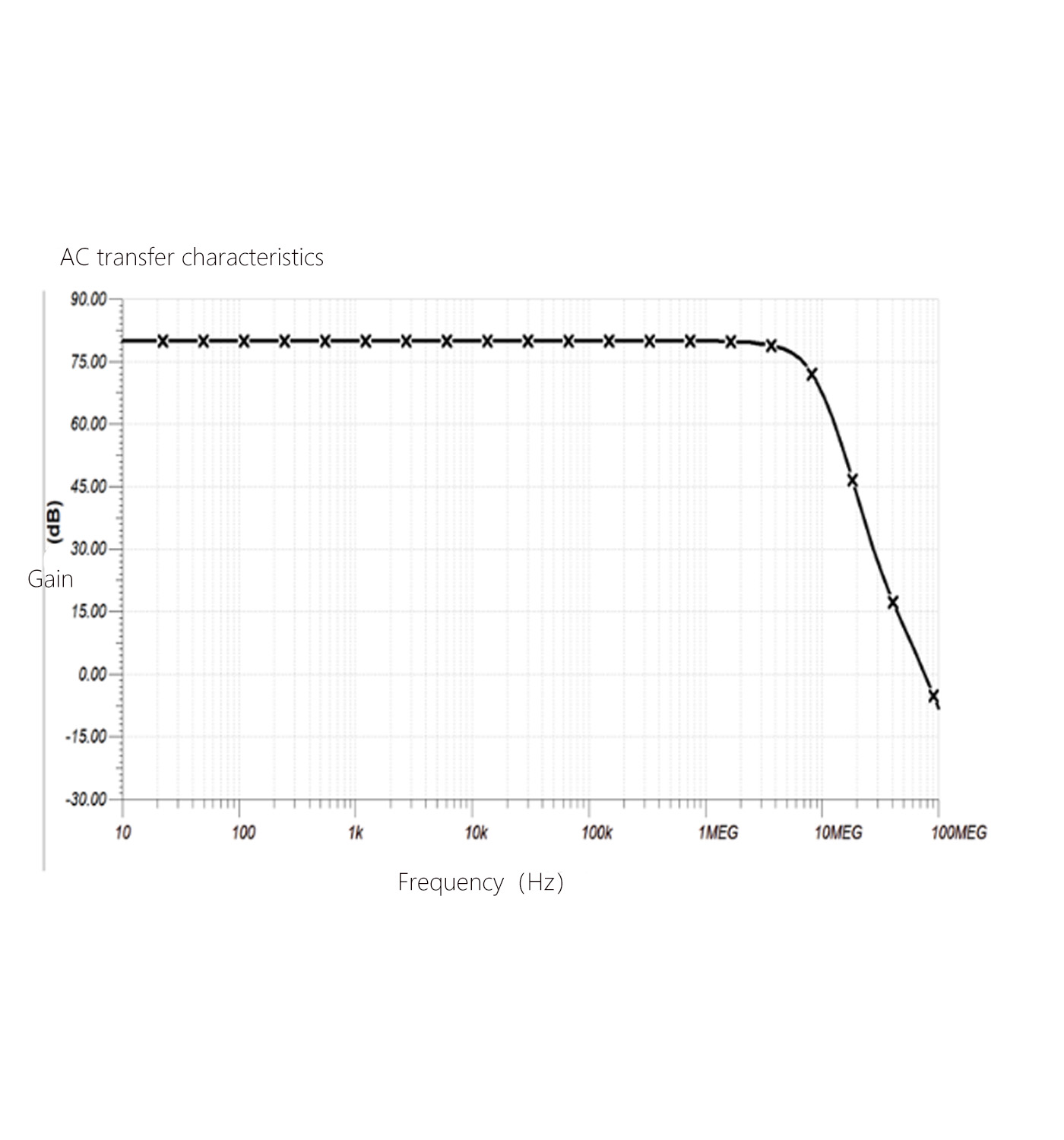

    Bandwidth

    DC •-5MHz

    DC - 200kHz

    DC - 5MHz

    NEP

    7.2 pW /4HZ 1/2

    2.2 pW /HZ 1/2

    64.5 pW /HZ 1/2

    Output noise (RMS)

    700 uV

    1 mV・typ

    1.3 mV. typ

    Dark current bias (MAX)

    ±5 mV

    ±1 mV

    ±5 mV

    Rising edge/falling edge (10%-90%)

    65 ns

    1.7 us

    68ns

    Output voltage


    Hi-Z

    0-SV (Hi-Z)

    0-6V (Hi-Z)

    0-6V (Hi-Z)

    500

    0 • 2.5V (50ohm)

    0 • 25V (50ohm)

    0 • 25V (50ohm)

    Gain multiple


    Hi-Z

    67.5 kV/A

    1.68 MV/A

    10 kV/A

    50Q

    33.8 kV/A

    0.84 MV/A

    5kV/A

    Gain accuracy ( typ )

    ±1%

    ±1%

    ±1%

    Other parameters



    Toggle switch

    Toggle switch

    Toggle switch

    Output Interface

    BNC

    BNC

    BNC

    size

    53*50*50mm

    53*50*50mm

    53*50*50mm

    weight

    150g

    150g

    150g

    Operating temperature

    10-50 degrees

    10-50 degrees

    10-50 degrees

    Storage temperature

    -25℃ - 70℃

    -25℃ - 70℃

    -25℃ - 70℃



    Reference for the amplified, ＆fixed gain model of InGaAs photodetector

    model

    wavelength

    bandwidth

    Rise time

    Gain

    RMS Noise

    NEP

    Sensing surface

    Operating temperature

    power supply

    Hi-Z Load

    50Ω Load

    PDA10A8B4G-NIR

    800 - 1700 nm

    DC - 140MHz

    2.5 nS

    1*10 4 V/A

    5*10 3 V/A

    760 µV . typ

    4.8*10 -12 W/√HZ

    ф1 mm

    10-50℃

    Included (±9V)

    PDA05A7B4G-NIR

    800 - 1700 nm

    DC - 25MHz

    14 nS

    1.2*10 4 V/A

    6*10 3 V/A

    1 mV . typ

    1.9*10 -11 W/√HZ

    ф0.5 mm

    10-50℃

    Included (±9V)

    PDA10A7B4G-NIR

    800 - 1700 nm

    DC - 12MHz

    29 nS

    1*10 4 V/A

    5*10 3 V/A

    800 µV . typ

    2.6*10 -11 W/√HZ

    ф1 mm

    10-50℃

    Included (±9V)

    PDA20A6B4G-NIR

    800 - 1700 nm

    DC - 5MHz

    70 nS

    1*10 4 V/A

    5*10 3 V/A

    1.3 mV . typ

    6.5*10 -11 W/√HZ

    ф2 mm

    10-50℃

    Included (±9V)

    PDA30A6B4G-NIR

    800 - 1700 nm

    DC - 2MHz

    175 nS

    1*10 4 V/A

    5*10 3 V/A

    800 µV . typ

    6.3*10 -11 W/√HZ

    ф3 mm

    10-50℃

    Included (±9V)

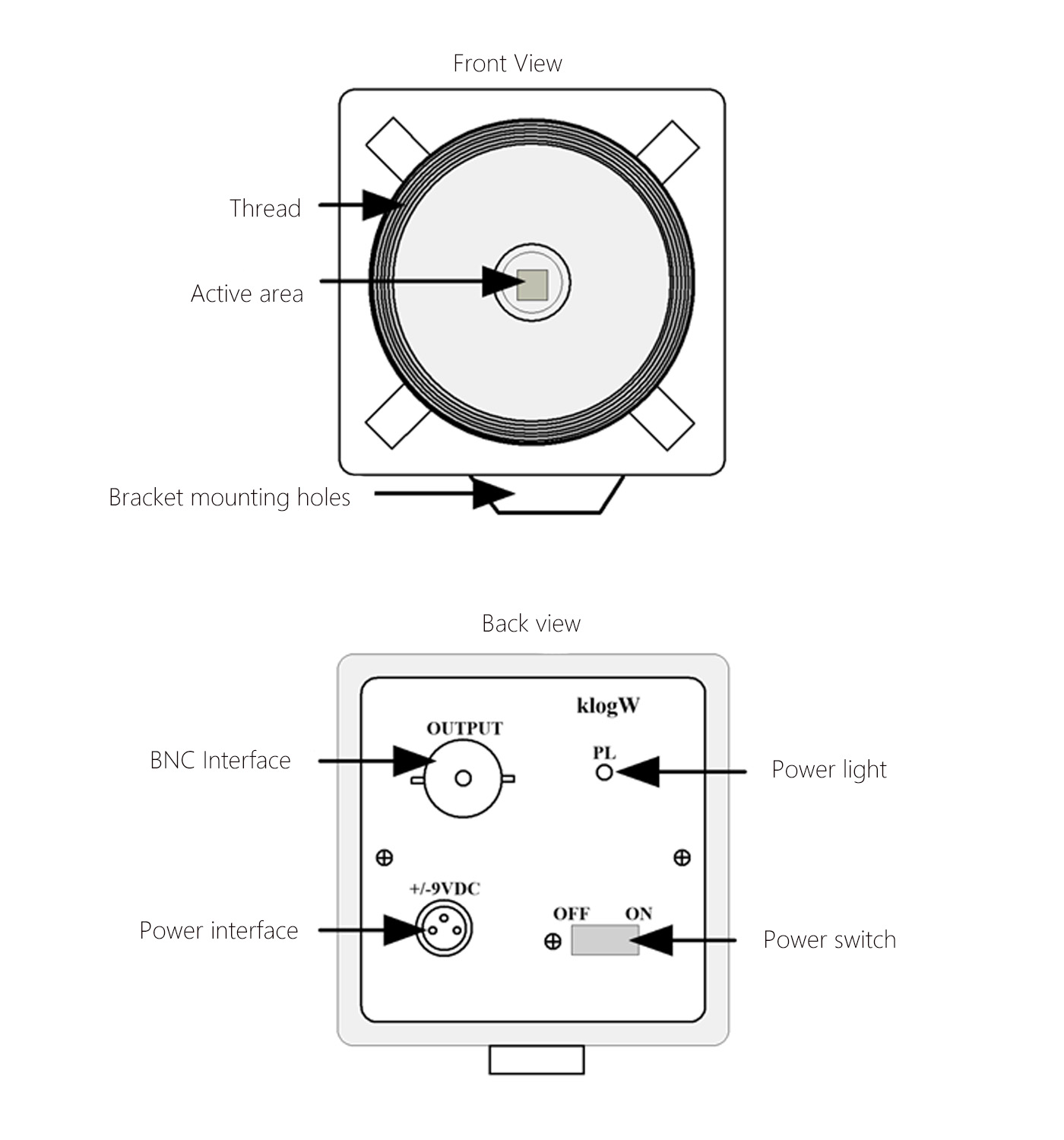

    Appearance and installation




    Test cases :

    Test light source:

    PN: PL-DFB-9672.4-B-A81-PA

    SN:DO3431e-q2-Bo2-A19

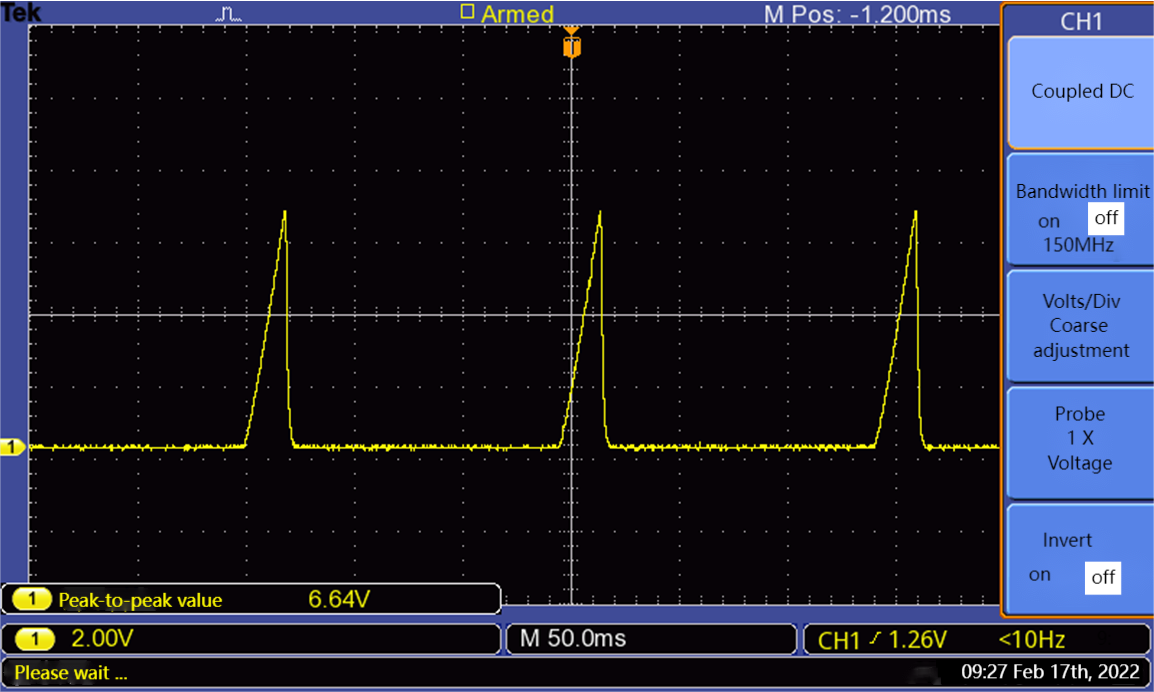

    Test conditions: 25℃, laser current scan 15-23mA, detector output as shown below.


    This detector has high detection accuracy at 972nm and can detect weak light (tens of microwatts).
